VAMP 260 - Energy Calculations

VAMP 260 Power monitoring unit
Technical description
VAMP Ltd
8
Vamp 24h support phone : +358 (0)20 753 3264
VM260.EN004

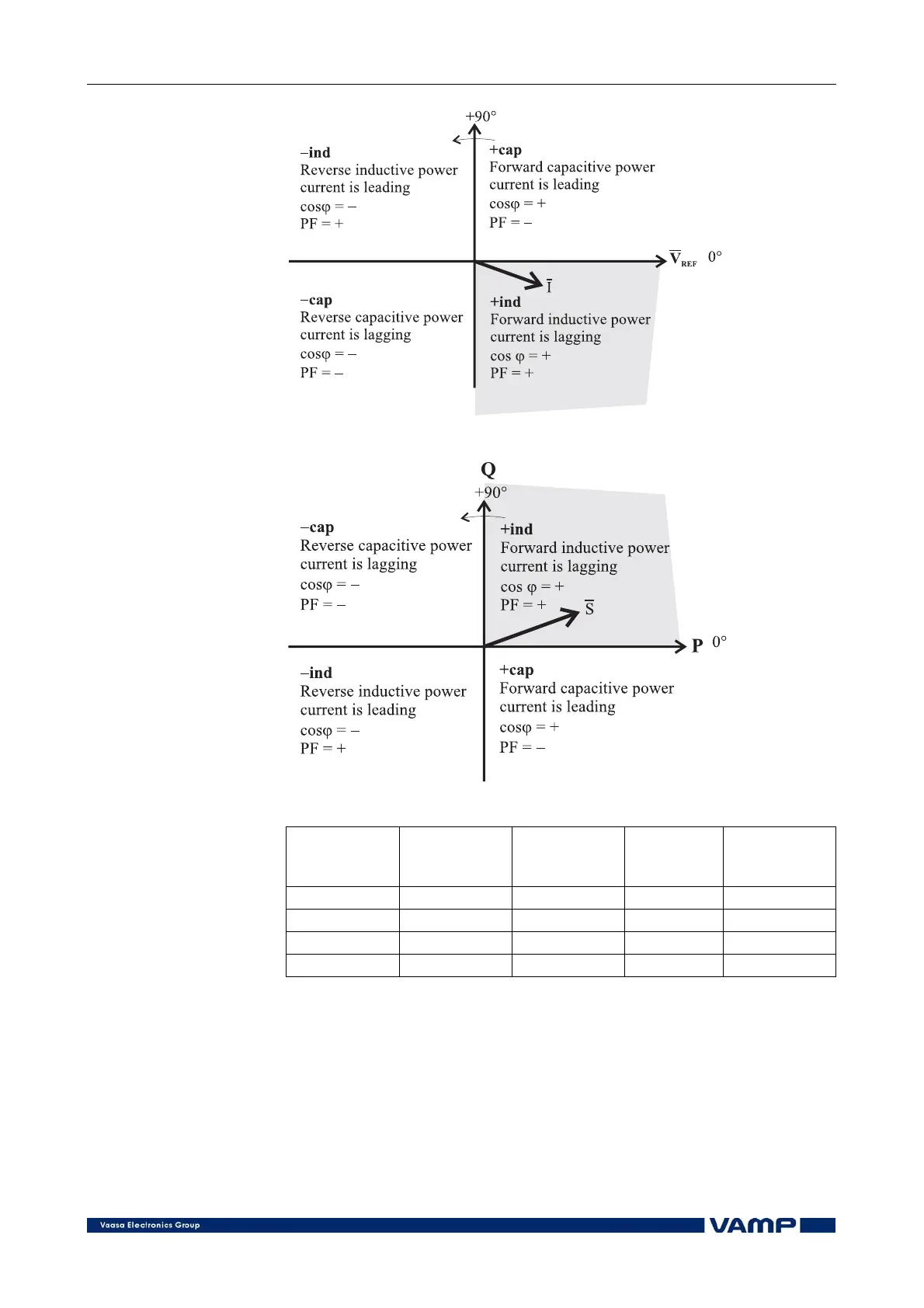

Figure 2.2.2-1. Quadrants of voltage/current phasor plane
Figure 2.2.2-2. Quadrants of power plane
Power
quadrant
Current
related to
voltage
Power
direction
cosfii Power factor
+ inductive Lags Forward + +
+ capacitive Leads Forward + -
- inductive Leads Reverse - +
- capacitive Lags Reverse - -
2.2.3. Energy calculations
Calculated energy measures (E+, Eq+, E-, Eq-) are based on the
calculated power measures and the internal clock. Energies
flown to both directions are calculated and displayed as
separate values.
Energy information can be obtained as energy pulses through
the contact outputs, too.
