6. Construction
6.1. Dimensional drawing
208.0
155.0
27.0
181.0
28.0
137.0
190.0
193.0
>20.0
1.0-10.0
139.0
P200_ulkomitat_kannella
PANEL
CUT-OUT

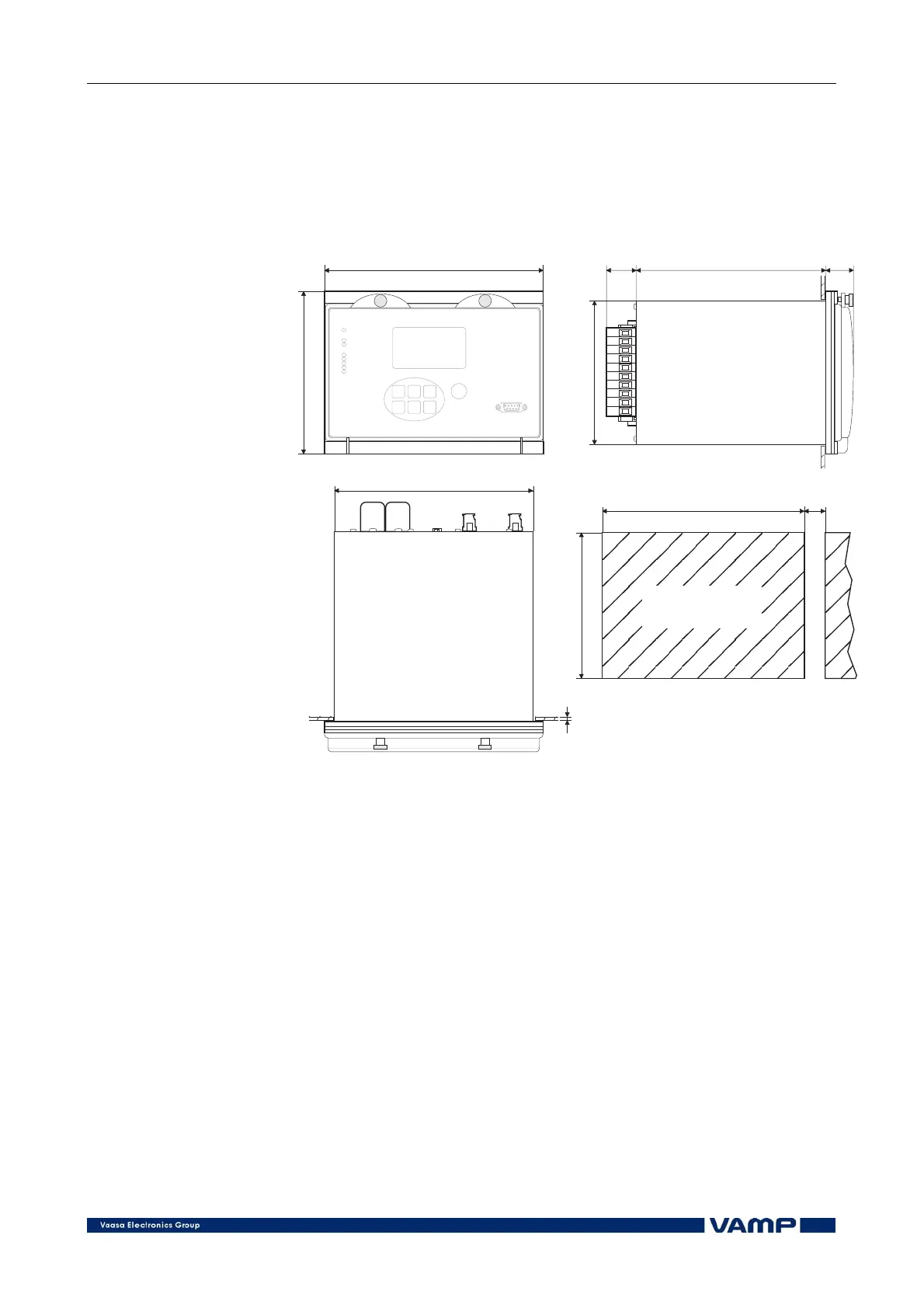

Figure 6.1-1. Dimensional drawing and panel cutout dimensions.
