Example 2
Coupling = Uline
Scaled minimum = 0 V
Scaled maximum = 15000 V
Analogue output minimum value = 4 mA
Analogue output maximum value = 20 mA
U
LINE
(V)
(mA)
Analogue
output
4
8
12
16
20
15000
mAscaling_2

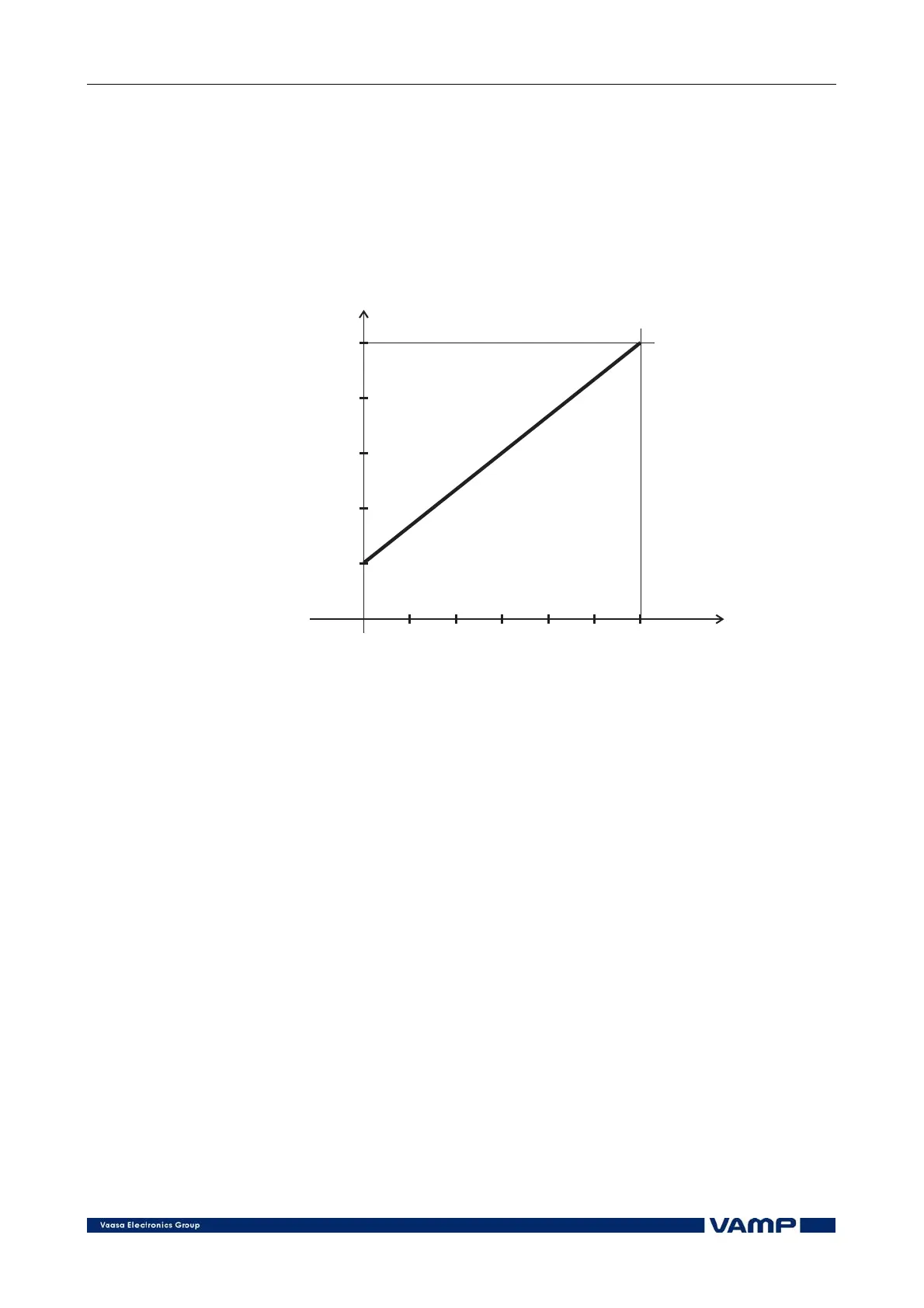

Figure 4.5.1-2. Example of mA scaling for Uline, the average of the line-to-
line voltages. At 0 V the transducer ouput is 4 mA, at 15000 V the output is
20 mA
