VAMP 52 - 7.1. Substation feeder protection

7.1 Substation feeder protection 7 Application Technical description
184
VAMP 24h support phone +358 (0)20 753 3264 VM50.EN004
7.1. Substation feeder protection
3
3
vamp50app1
VAMP 50
Overcurrent and Earth/fault Relay
Power
Error
Alarm
Trip
VAMP 50
Overcurrent and Earth/fault Relay
Power
Error
Alarm
Trip

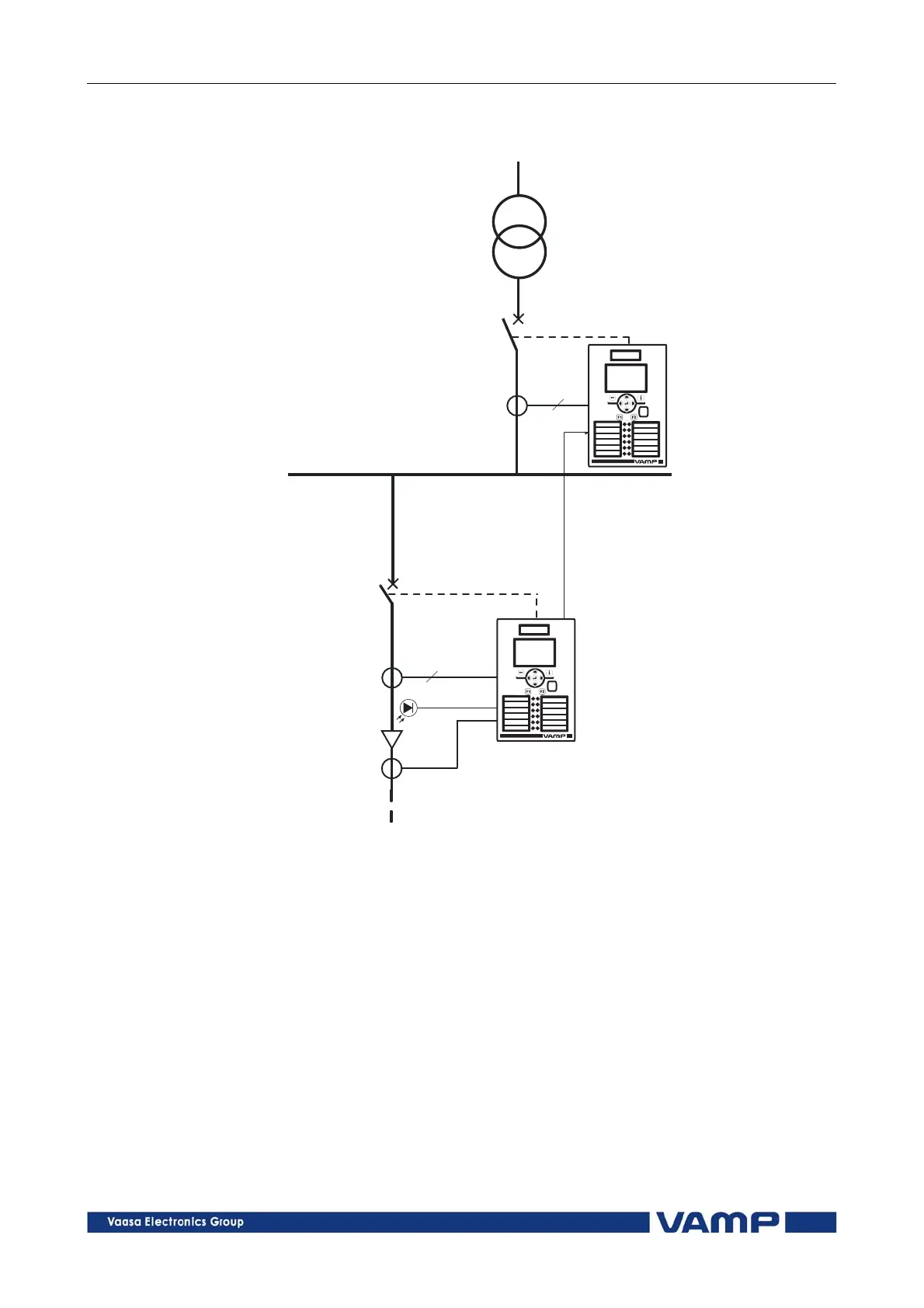

Figure 7.1-1 VAMP 50 or VAMP51 used in substation feeder protection
The VAMP50 includes three-phase overcurrent protection,
earth fault protection and fast arc protection. At the incoming
feeder, the instantaneous stage I>>> of the VAMP feeder device
is blocked with the start signal of the overcurrent stage. This
prevents the trip signal if the fault occurs on the outgoing
feeder. VAMP 51 includes additionally auto-reclose function
(79) that is essential in overhead distribution networks for
isolating temporary arcing fault.
