2.1 Relay front panel 2 Local panel user interface Operation and confi
uration
2.1.3. Keypad
You can navigate in the menu and set the required parameter
values using the keypad and the guidance given in the display.
Furthermore, the keypad is used to control objects and switches
on the single line diagram display. The keypad is composed of
four arrow keys, one cancel key, one enter key, one info key and
two configurable function keys.
nappain
1
2
3
4
6
5

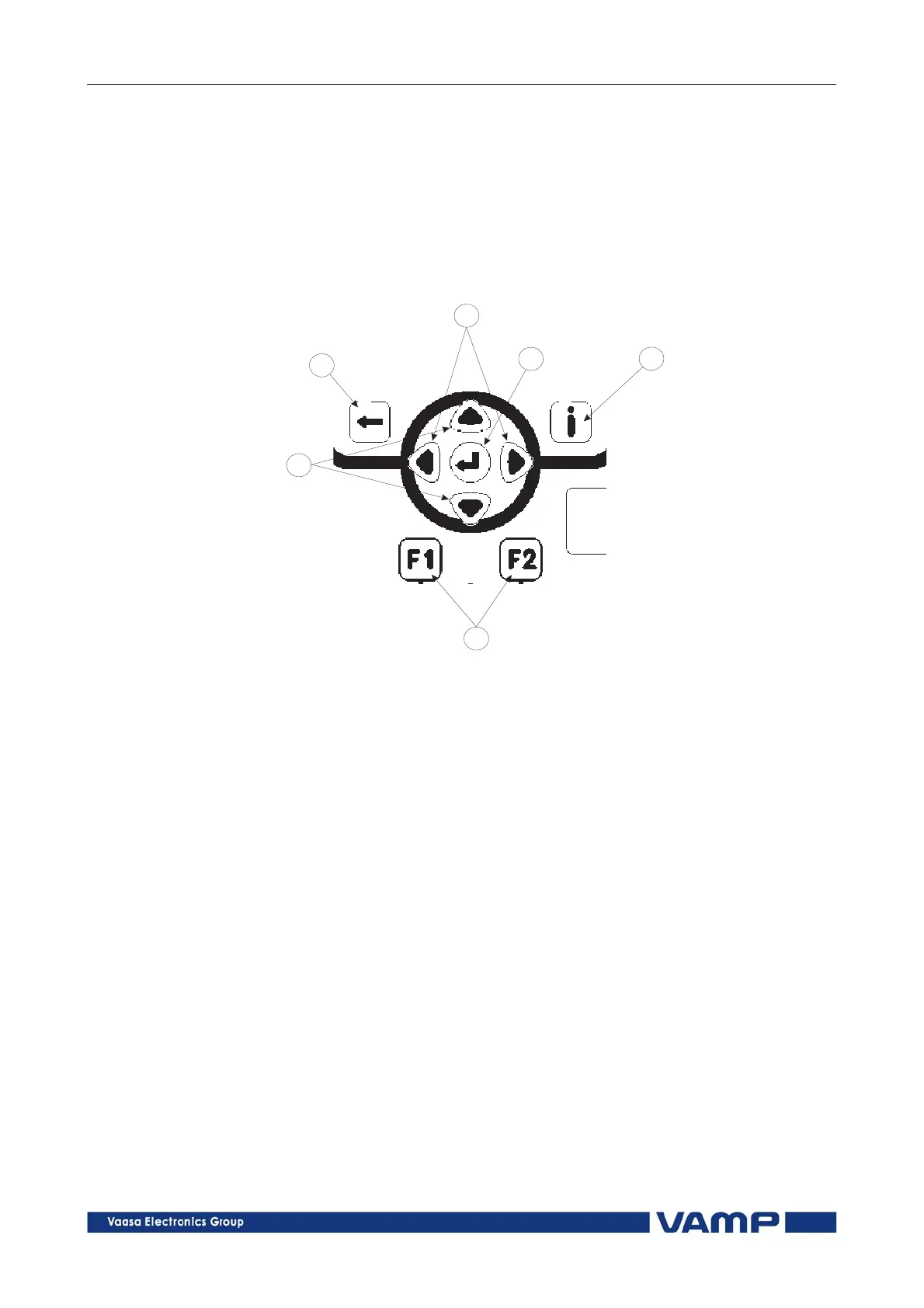

Figure 2.1.3-1 Keys on the keypad
1. Enter and confirmation key (ENTER)
2. Cancel key (CANCEL)
3. Up/Down [Increase/Decrease] arrow keys (UP/DOWN)
4. Keys for selecting submenus [selecting a digit in a
numerical value] (LEFT/RIGHT)
5. Additional information key (INFO)
6. Function keys 1 and 2 (F1 / F2)
F1 toggles Virtual Input 1 (VI1) On/Off
F2 toggles Virtual Input 2 (VI2) On/Off
NOTE! The term, which is used for the buttons in this manual, is inside the
brackets.
8
VAMP 24h support phone +358 (0)20 753 3264 VM50.EN004
