7.3 Trip circuit supervision 7 Application Technical description
188
VAMP 24h support phone +358 (0)20 753 3264 VM50.EN004

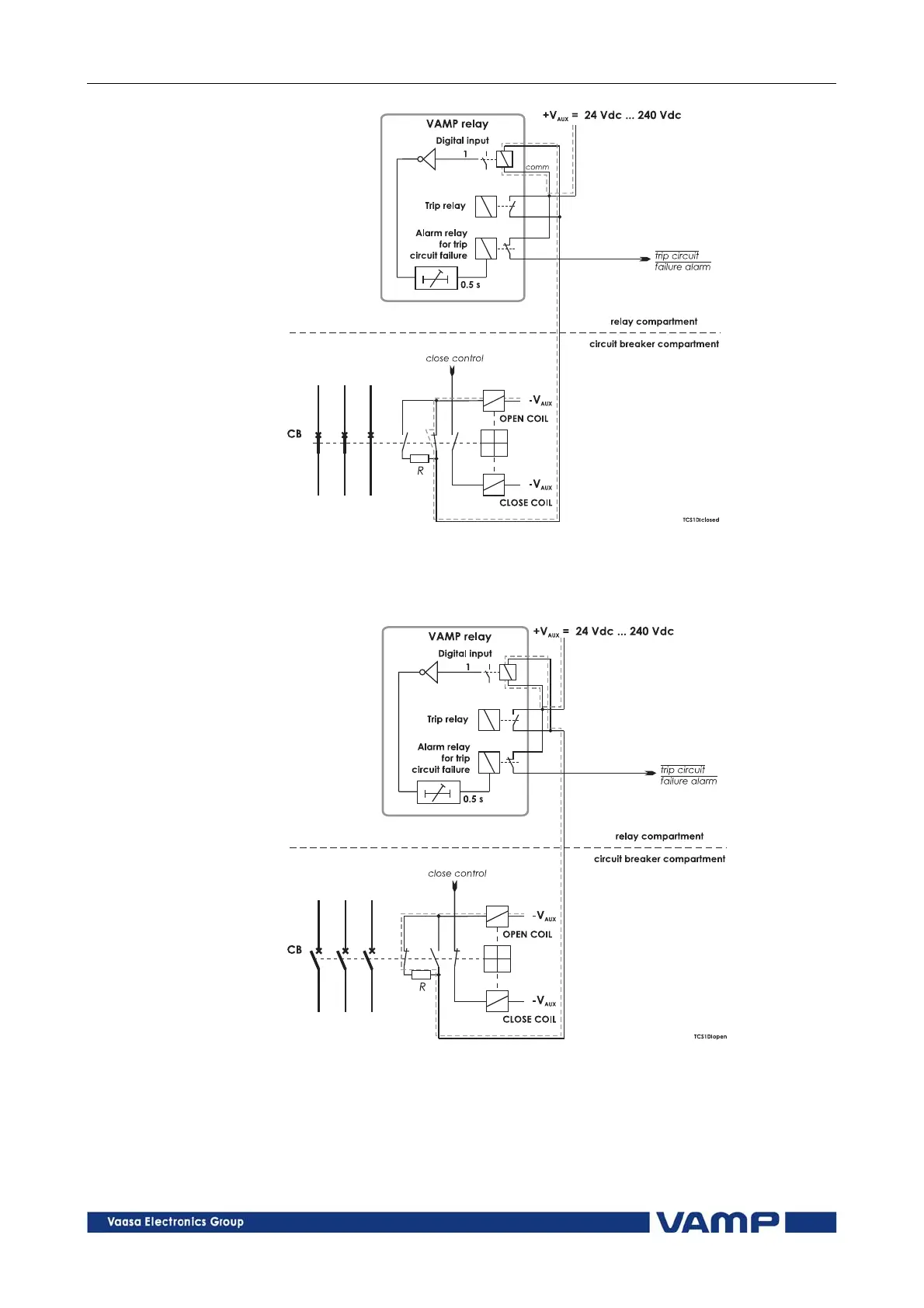

Figure 7.3.1-1 Trip circuit supervision using a single digital input and an
external resistor R. The circuit-breaker is in the closed position. The
supervised circuitry in this CB position is double-lined. The digital input is
in active state when the trip circuit is complete.
Figure 7.3.1-2 Trip circuit supervision using a single digital input, when the
circuit breaker is in open position.
