VAMP 52 - Page 193

Technical description 7 Application 7.3 Trip circuit supervision
VM50.EN004 VAMP 24h support phone +358 (0)20 753 3264
193

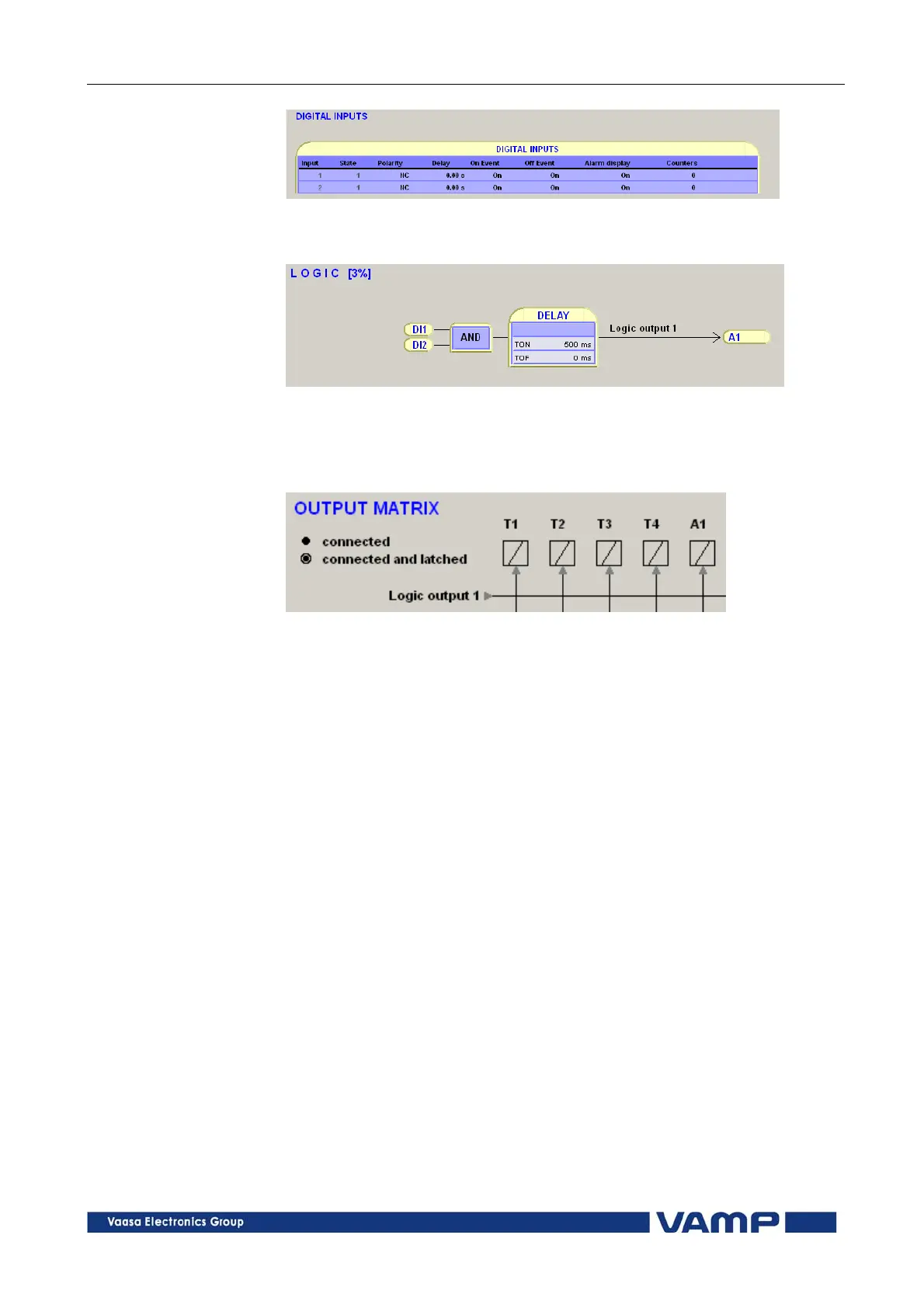

Figure 7.3.2-3 An example of digital input configuration for trip circuit
supervision with two dry digital inputs DI1 and DI2.
Figure 7.3.2-4 An example of logic configuration for trip circuit supervision
with two dry digital inputs DI1 and DI2.
Figure 7.3.2-5 An example of output matrix configuration for trip circuit
supervision with two digital inputs.
