Vanair Goodall CAP-START - Page 14

2 - 2 090189-OP_r0 (JUNE-2022)
SECTION 2: SPECIFICATIONS
VANAIR MANUFACTURING, INC.
(844) VAN-SERV • www.vanair.com
Cap•Start Hydraulic-Driven
12V/24V • Battery Starter • Charger
F
G
H
J
K
L
A
B
C
D
E
R
S
T
U
Q
M
P
N
KEY DESCRIPTION KEY DESCRIPTION
A ULTRACAPACITOR
L MANIFOLD
B 500 AMP RELAY (X 5)
M INSTRUMENT PANEL MODULE
C DRIVE BELT
N PRESSURE
D HYDRAULIC MOTOR
P RETURN
E OUTPUT CABLE CONNECTOR
Q CONTROL MODULE
F AC GEN FAN
R POWER CONNECTION
G AC GENERATOR
S CASE DRAIN
H SOLENOID
T HYDRAULIC RETURN
J PRESSURE RELIEF VALVE
U HYDRAULIC SUPPLY
K POWER CONNECTOR

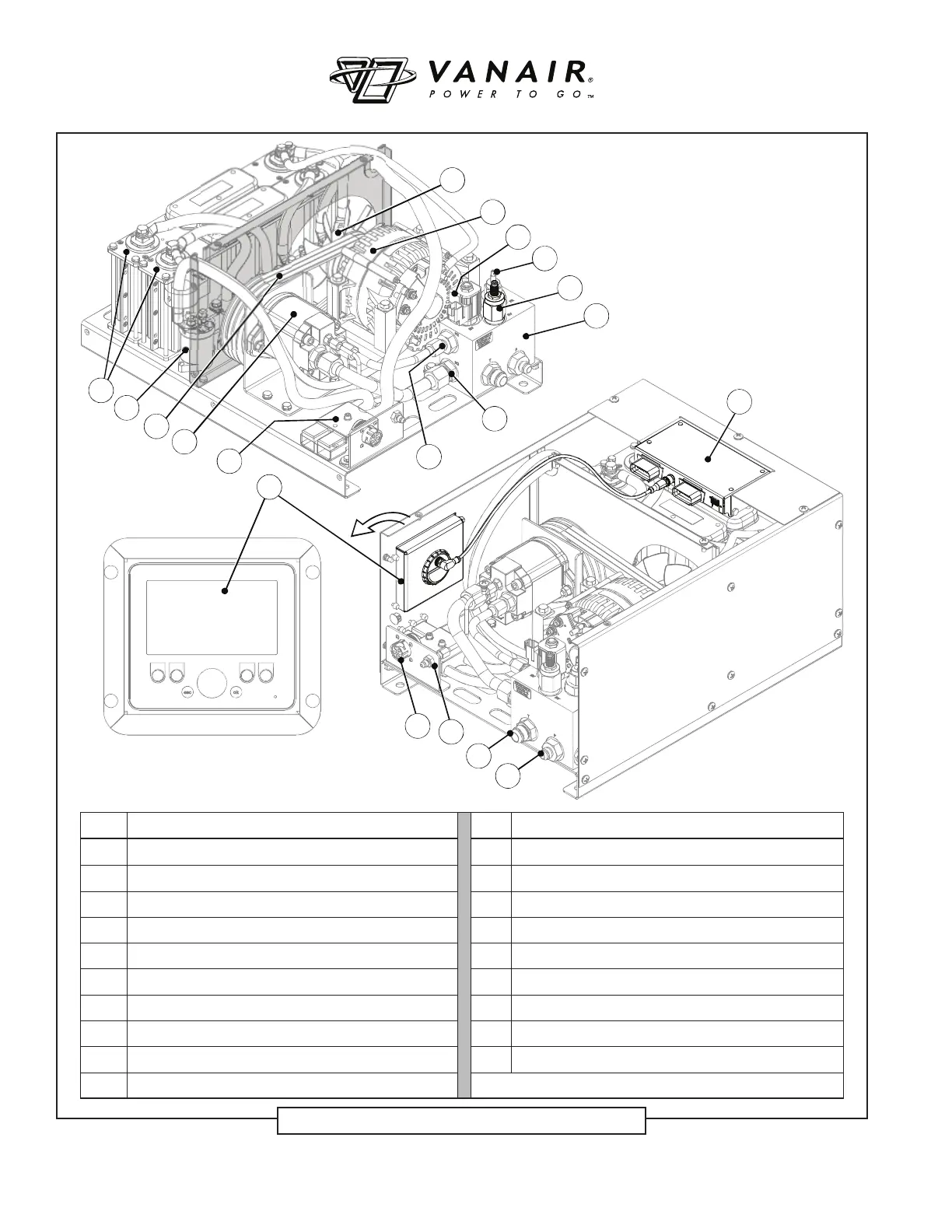

Figure 2-1: Machine Main Component Locations
