SECTION 7: ILLUSTRATED PARTS LIST
7 - 16 090189-OP_r0 (JUNE-2022)
VANAIR MANUFACTURING, INC.
(844) VAN-SERV • www.vanair.com
Cap•Start Hydraulic-Driven
12V/24V • Battery Starter • Charger
NOTES:
1. LUBRICATE ALL ELASTOMERIC
SEALS/GASKETS/O-RINGS
BEFORE TIGHTENING.

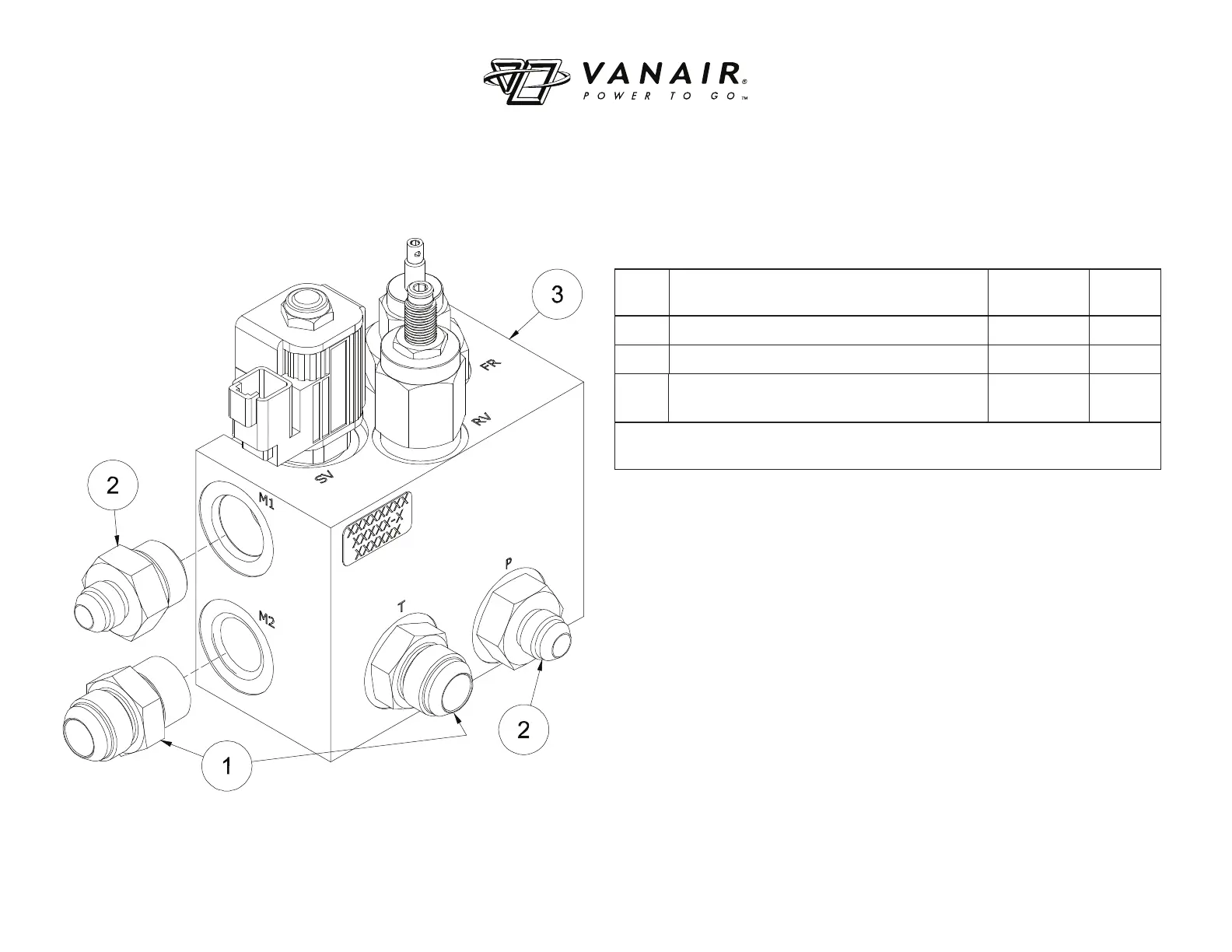

7.6 MANIFOLD ASSEMBLY
6120460ID_r0
ITEM DESCRIPTION PART
NUMBER
QTY
1 CONNECTOR, O-RING 3/4 x 3/4 JIC 260387-112 2
2 CONNECTOR, #12 MSAE x #8 MJIC 260387-132 2
3 MANIFOLD, HYDRAULIC 0-25GPM
3000PSI
281334 1
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE
MACHINE SERIAL NUMBER.
