SECTION 7: ILLUSTRATED PARTS LIST
7 - 14 090189-OP_r0 (JUNE-2022)
VANAIR MANUFACTURING, INC.
(844) VAN-SERV • www.vanair.com
Cap•Start Hydraulic-Driven
12V/24V • Battery Starter • Charger
NOTES:
1. MOUNTING HARDWARE SUPPLIED WITH BUSHING
2. ALL BOLTS TO BE TORQUED TO THEIR RESPECTIVE SAE TORQUE
SPECIFICATIONS, FOR THEIR GRADES AND SIZES, UNLESS
OTHERWISE SPECIFIED.
3. LUBRICATE ALL ELASTOMERIC SEALS/GASKETS/O-RINGS BEFORE
TIGHTENING.
DO NOT TIGHTEN
BOLT OR NUT
SEE
NOTE #1
(3X)
6100281ID_r1

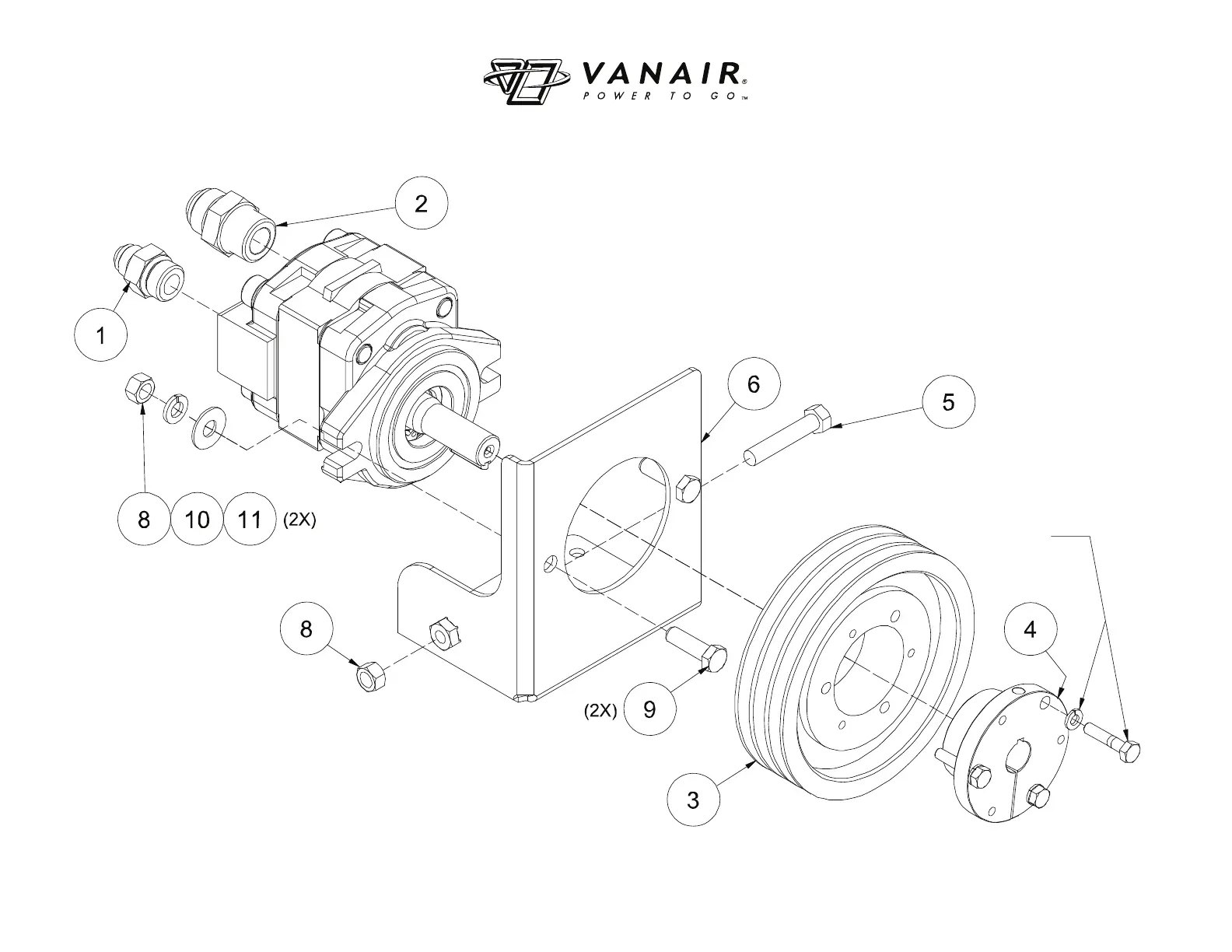

7.5 MOTOR ASSEMBLY
