SECTION 7: ILLUSTRATED PARTS LIST
7 - 12 090189-OP_r0 (JUNE-2022)
VANAIR MANUFACTURING, INC.
(844) VAN-SERV • www.vanair.com
Cap•Start Hydraulic-Driven
12V/24V • Battery Starter • Charger
NOTES:
1. NUT IS SUPPLIED WITH THE ALTERNATOR
2. ALL BOLTS TO BE TORQUED TO THEIR
RESPECTIVE SAE TORQUE SPECIFICATIONS,
FOR THEIR GRADES AND SIZES, UNLESS
OTHERWISE SPECIFIED.
3. USE MEDIUM STRENGTH BLUE THREAD
LOCKER.
(4X)
SEE NOTE #3
(4X)
(4X)
SEE NOTE #1
REAR REFERENCE
6050122ID_r0

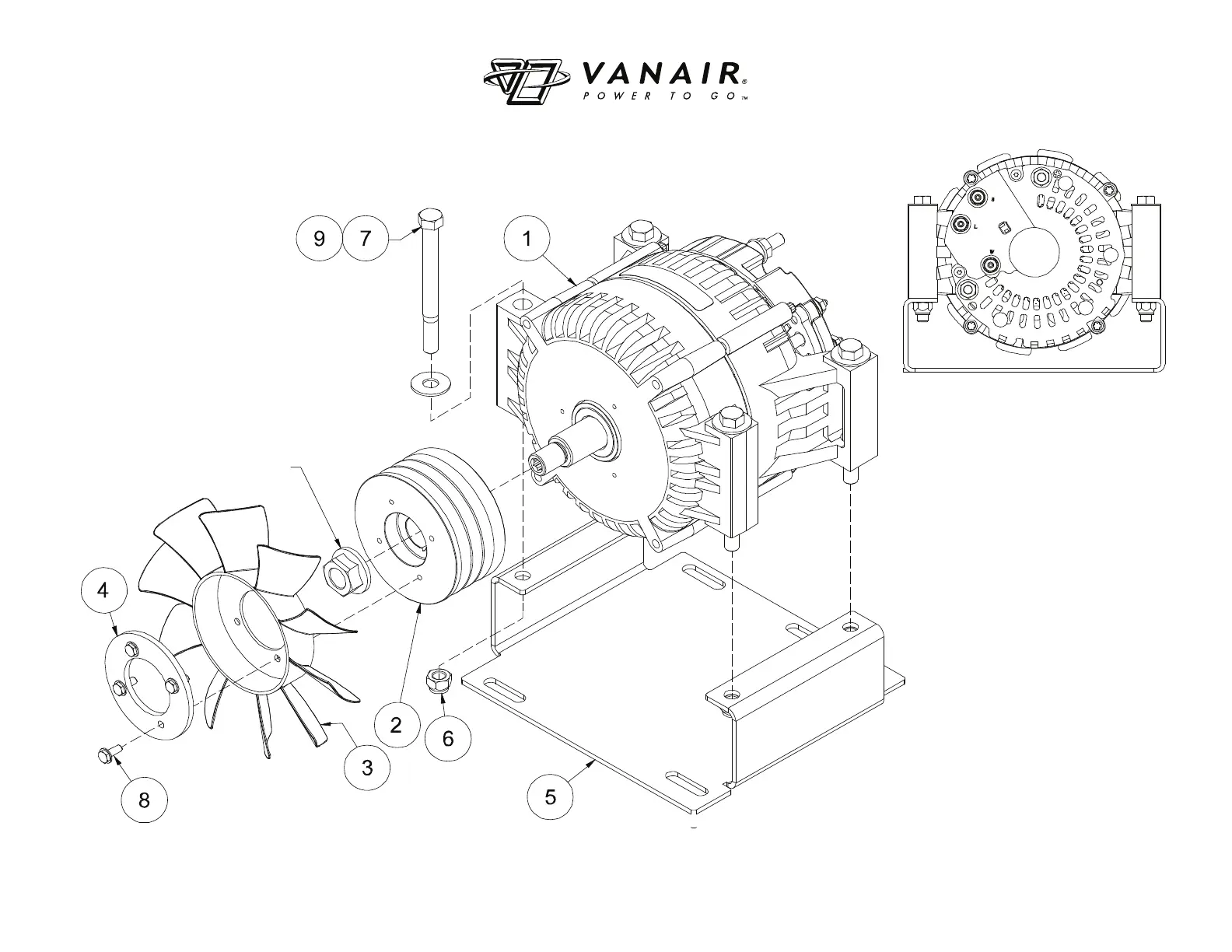

7.4 ALTERNATOR ASSEMBLY
