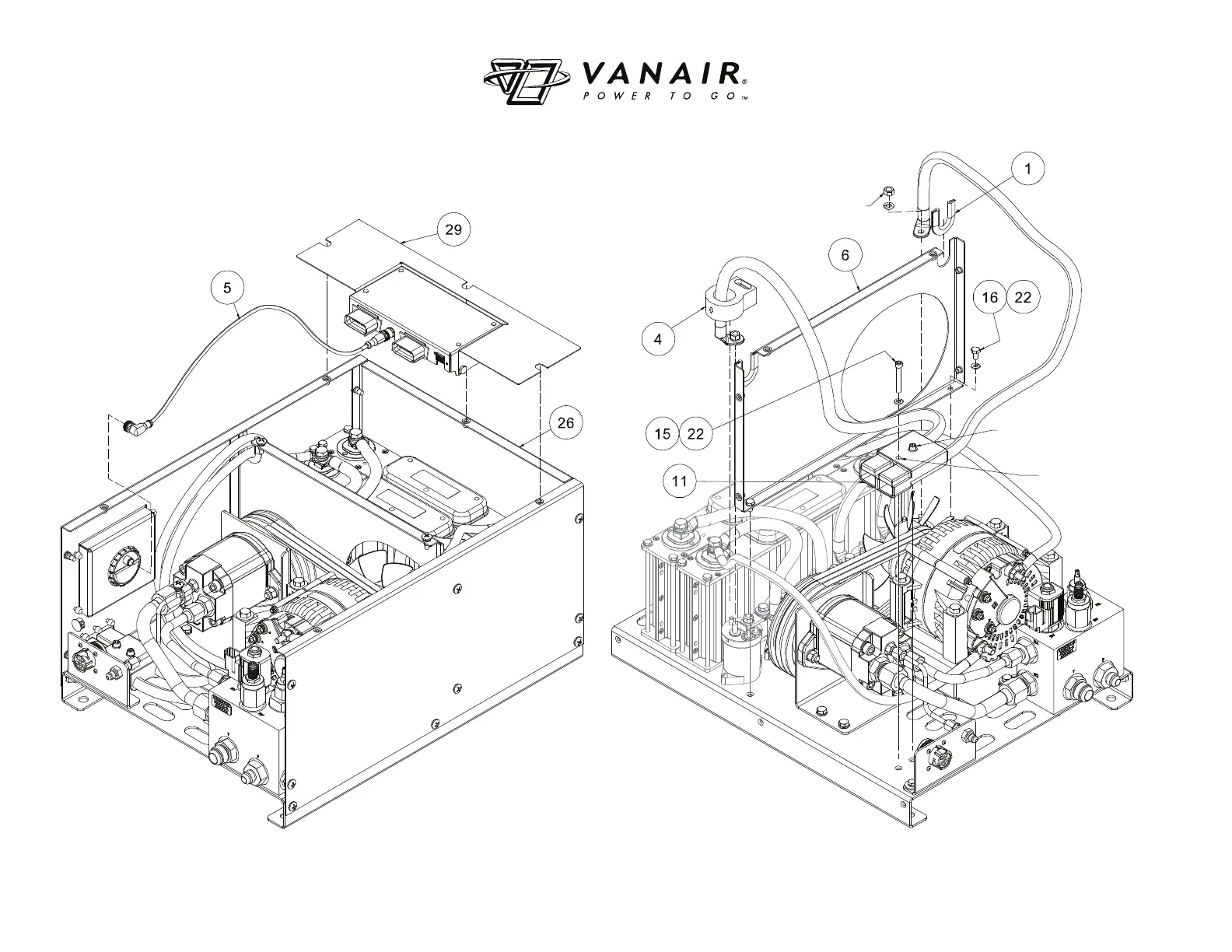

Vanair Goodall CAP-START - Finished Assembly - 2 of 3

SECTION 7: ILLUSTRATED PARTS LIST
7 - 6 090189-OP_r0 (JUNE-2022)
VANAIR MANUFACTURING, INC.
(844) VAN-SERV • www.vanair.com
Cap•Start Hydraulic-Driven
12V/24V • Battery Starter • Charger
ARROW TOWARD
TERMINAL END
SEE NOTE #1 (2X)
ATTACH 282040 FUSE HOLDER
"CNTRL PWR" HERE
ATTACH 282040 FUSE’
HOLDER "FLD PWR"
HERE
(2X)
(2X)
(2X)
NOTES:
1. HARDWARE SUPPLIED WITH RELAYS
2. ALL BOLTS TO BE TORQUED TO THEIR RESPECTIVE SAE
TORQUE SPECIFICATIONS, FOR THEIR GRADES AND SIZES,
UNLESS OTHERWISE SPECIFIED.
7.2 FINISHED ASSEMBLY - 2 OF 3
6130217ID_r0_2of3
