SECTION 7: ILLUSTRATED PARTS LIST
090189-OP_r0 (JUNE-2022) 7 - 17
VANAIR MANUFACTURING, INC.
(844) VAN-SERV • www.vanair.com
Cap•Start Hydraulic-Driven
12V/24V • Battery Starter • Charger
NOTES:
1. ALL BOLTS TO BE TORQUED TO THEIR RESPECTIVE SAE
TORQUE SPECIFICATION, FOR THEIR GRADES AND SIZES,
UNLESS OTHERWISE SPECIFIED.

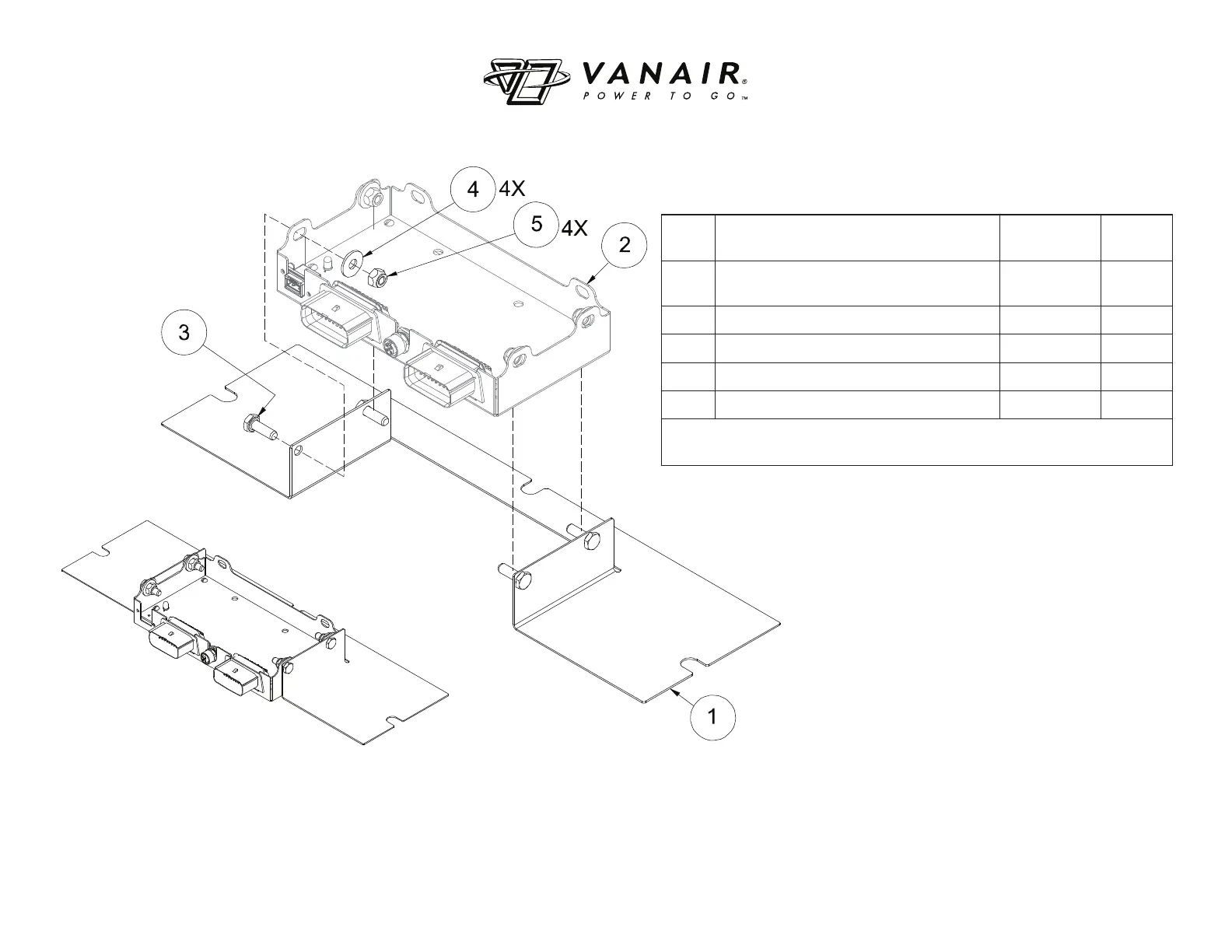

7.7 CONTROL MODULE ASSEMBLY
6060352ID_r0
ITEM DESCRIPTION PART
NUMBER
QTY
1 PLATE, CONTROLLER MOUNT
CS3KH
282179 1
2 MODULE, MACHINE CONTROL 281025 1
3 CAPSCREW, HEX GR5 1/4-20 x 0.75 829104-075 4
4 WASHER, FLAT 1/4 838204-071 4
5 NUT, HEX LOCKING 1/4-20 825504-145 4
PLEASE NOTE: WHEN ORDERING PARTS, INDICATE
MACHINE SERIAL NUMBER.
