Vanair Goodall CAP-START - Electrical, Motor, and Alternator Assemblies

SECTION 7: ILLUSTRATED PARTS LIST
090189-OP_r0 (JUNE-2022) 7 - 9
VANAIR MANUFACTURING, INC.
(844) VAN-SERV • www.vanair.com
Cap•Start Hydraulic-Driven
12V/24V • Battery Starter • Charger
NOTES:
1. RELAY 3 IS ORIENTED OPPOSITE
OF OTHER RELAYS.
282577-004
282577-003
282577-006
282577-002
282577-001
282577-005
HARNESS
282039
TO ALTERNATOR POS. (+)
TO ALTERNATOR NEG. (-)
RELAY 1
RELAY 1
RELAY 1
RELAY 1
RELAY 1
GND
GND
GND
SEE NOTE: 1
GND
GND
CAP 2 (+)
CAP 1 (+)
CAP 2 (-)
NAME DESCRIPTION
CUSTOMER CONN. A
CUSTOMER CONN. B
CUSTOMER CONN. C
CUSTOMER CONN. D
+12VDC INPUT FROM A SWITCHED POWER SOURCE ON THE HOST
VEHICLE
NAME
DESCRIPTION
RELAY 1
RELAY 2
RELAY 3
RELAY 4
RELAY 5
CONNECTS: ALTERNATOR POS (+) & CAP 2 POS (+), TO: JUMPER CABLE POS (+)
CONNECTS: CAP 1 POS (+) & CAP 2 POS (+) IN PARALLEL. FOR CAP CHARGE &
12V START MODE
CONNECTS CAPACITORS IN SERIES FOR 24V MODE
CONNECTS CAPACITORS IN PARALLEL FOR CAP CHARGE & 12V START MODE
GROUND SAFETY; CONNECTS CAP / ALT NEG.(-) TO NEG.(-) JUMPER CABLES
FOR VEHICLE CHARGE / VEHICLE START
+12VDC INPUT FROM FROM THE HOST VEHICLE BATTERY
-12VDC INPUT FROM THE HOST VEHICLE GROUND OR BATTERY
NEGATIVE
+12VDC OUTPUT SIGNAL FOR REMOTE INDICATOR OF HYDRAULIC
MOTOR BEING ON

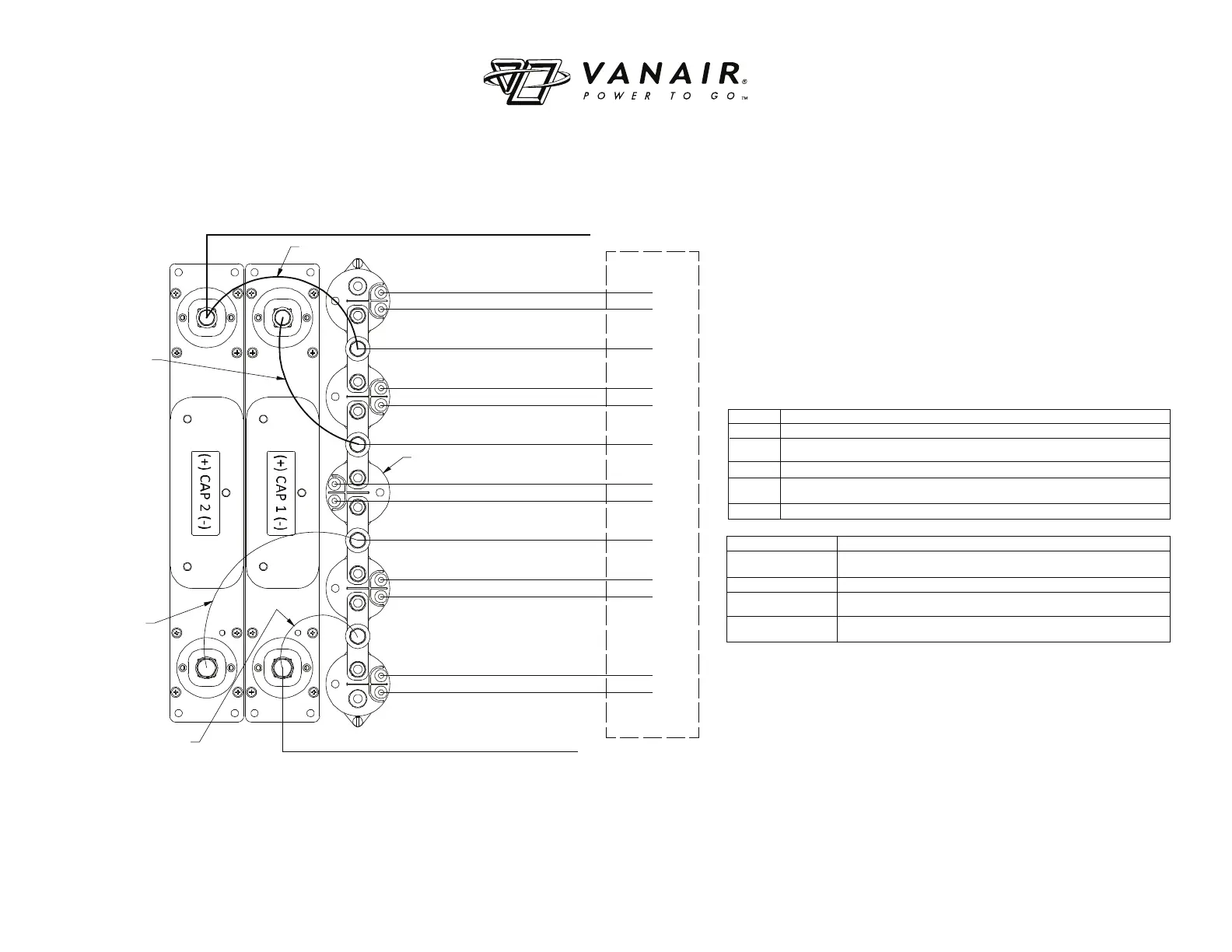

7.3 ELECTRICAL ASSEMBY, FRAME, CAPACITOR AND RELAY - 1 OF 2
6060337ID_r1_1of2 (TP)
