VarioCooking Center 211 - VCC 112 T: Control of Movements, Principle

VCC 112T, 112L & 112, from index J
VCC 112T: Control of movements, principle

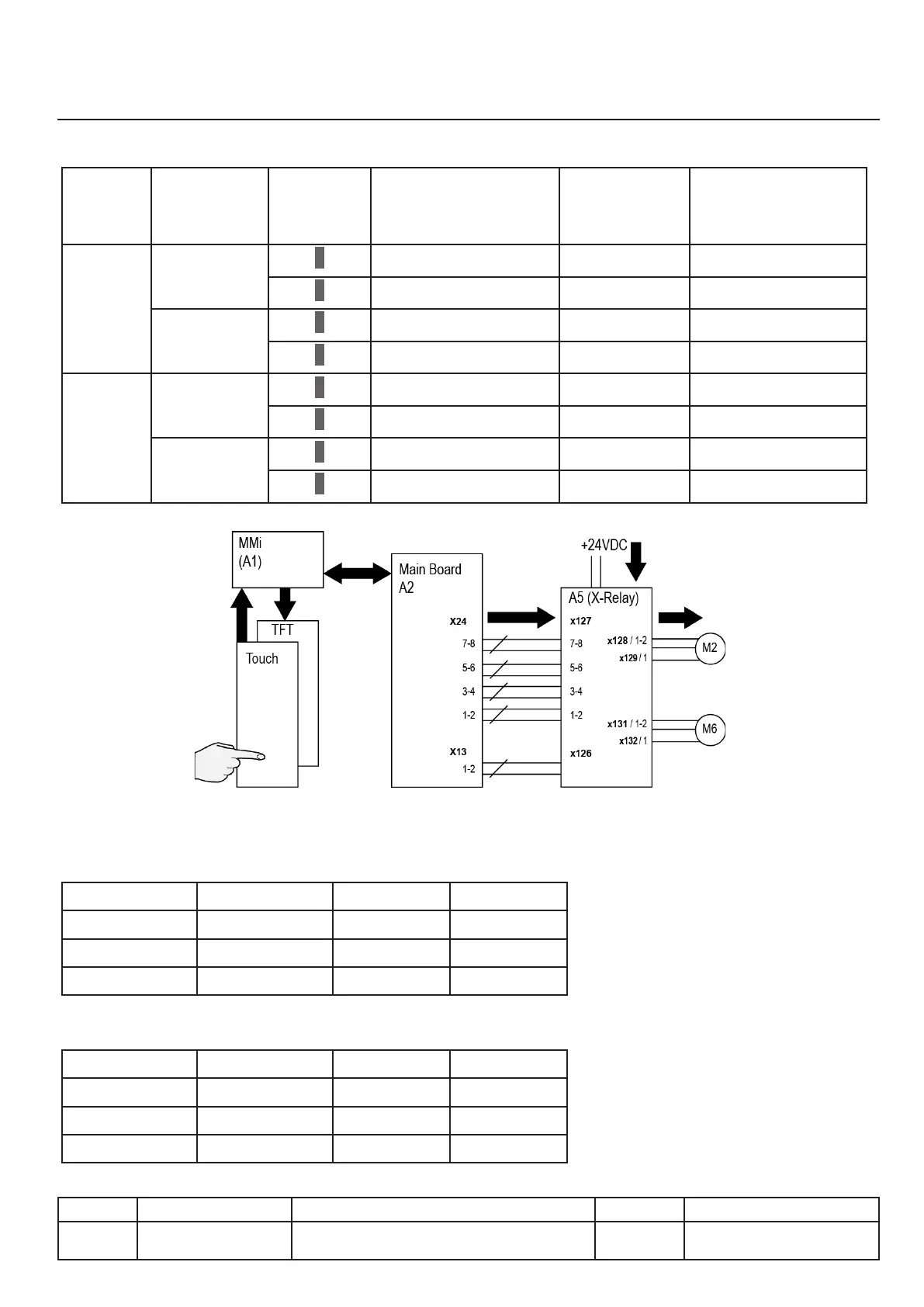

Summary table of movement control signals
Side Element Action Board A2
Connector X24
(12VDC)
Board A2
X13
(12VAC)
Board A5
(24-28 VDC)
Left Pan
↑ X24: 1/2 X128 1(-) / 2(+)
↓ X24: 1/2 + 3/4 X128 1(+) / 2(-)
Autolift
Lid
↑ X24: 1/2 + 5/6 X128 2(+) / X129 1(-)
↓ X24: 1/2 + 3/4 + 5/6 X128 2(-) / X129 1(+)
Right Pan
↑ X24: 1/2 X13: 1/2 X131 1(-) / 2(+)
↓ X24: 1/2 + 3/4 X13: 1/2 X131 1(+) / 2(-)
Autolift
Lid
↑ X24: 1/2 + 5/6 X13: 1/2 X131 2(+) / X132 1(-)
↓ X24: 1/2 + 3/4 + 5/6 X13: 1/2 X131 2(-) / X132 1(+)
Wiring
Summary table of states of limit switch and potentiometer
●Fig1 Leftside
Pan Lid PT1 S10
Down Up
< 425 1
Up Up
> 990 1
Down Down
< 2 0
Fig. 2 Right side
Pan Lid PT2 S12
Down Up
< 425 1
Up Up
> 990 1
Down Down
< 2 0
X.13
v03 • July-2016 • Hen
Motorisation Module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112T, 112L E12VJ1505xxxxxxx, E13VJ1509xxxxxxx
