VCC 211/311, index I
Description of the pan/lid tilting actuator

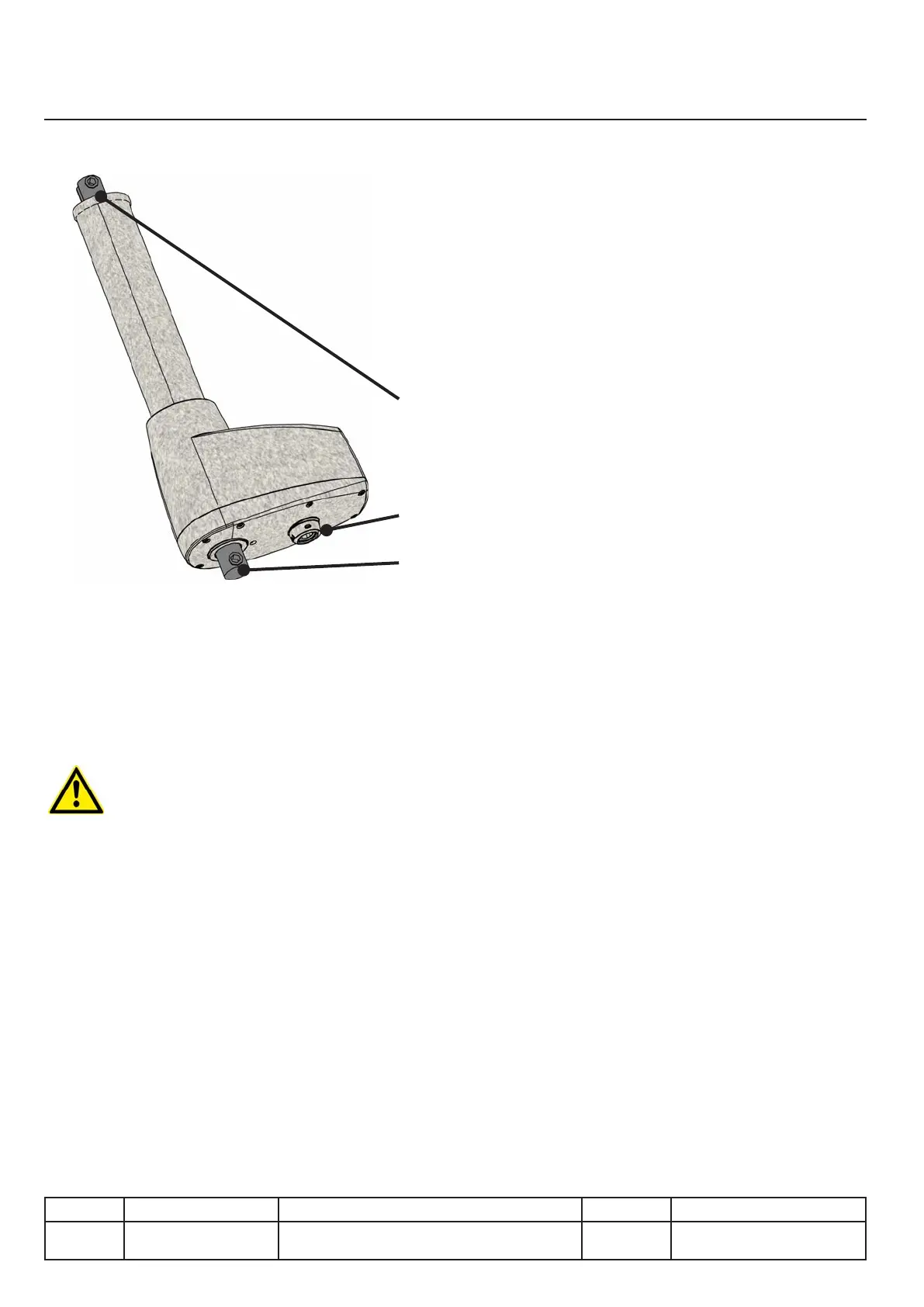

Description of the Linak LA44 potentiometer actuator
Instructions
●When mounting never turn the actuator rod
●If you want to lengthen or shorten the actuator do it ‘electrically’, use the function test from the
service mode
●No pan movement is possible if the lid is not detected in the upper position
●No lid movement is possible before the pan registers his zero.
A. Actuator rod
B. Connectors
C. Release micro-switch
X.30
v03 • July-2016 • Hen
Motorisation Module
A
B
C
Ligne Appareils Numéro de série (A partir de) Sw Révision
VCCM
VCCWE
211, 311 E21xI1602xxxxxxx, E31xI1602xxxxxxx
