VarioCooking Center 211 - VCC 112: Control of Movements, Principle

VCC 112T, 112L & 112, from index J

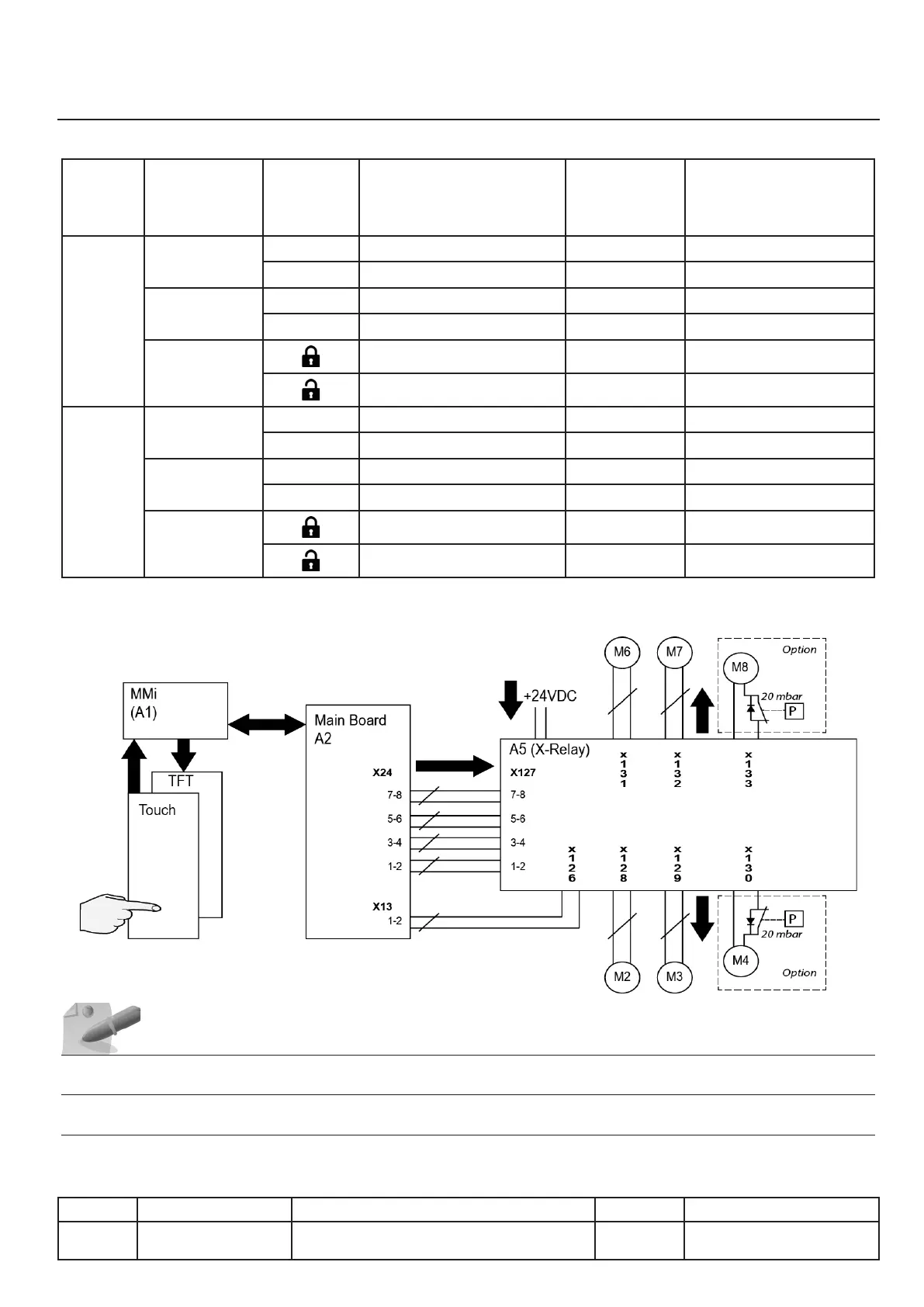

VCC 112: Control of movements, principle
Control of movements
Side Element Action Board A2
Connector X24
(12VDC)
Board A2
X13
(12VAC)
Board A5
(24-28 VDC)
Left Pan ↑ X24: 1/2 X128 1(-) / 2(+)
↓ X24: 1/2 + 3/4 X128 1(+) / 2(-)
Autolift
Lid
↑ X24: 1/2 + 5/6 X128 2(+) / X129 1(-)
↓ X24: 1/2 + 3/4 + 5/6 X128 2(-) / X129 1(+)
Lock
lid
X24: 1/2 + 5/6 + 7/8 X130 1(-) / 2(+)
X24: 1/2 + 3/4 + 5/6 + 7/8 X130 1(+) / 2(-)
Right Pan ↑ X24: 1/2 X13: 1/2 X131 1(-) / 2(+)
↓ X24: 1/2 + 3/4 X13: 1/2 X131 1(+) / 2(-)
Autolift
Lid
↑ X24: 1/2 + 5/6 X13: 1/2 X131 2(+) / X132 1(-)
↓ X24: 1/2 + 3/4 + 5/6 X13: 1/2 X131 2(-) / X132 1(+)
Lock
lid
X24: 1/2 + 5/6 + 7/8 X13: 1/2 X 133 1 (-) / 2 (+)
X24: 1/2 + 3/4 + 5/6 + 7/8 X13: 1/2 X133 1(+) / 2(-)
Wiring
X.15
v03 • July-2016 • Hen
Motorisation Module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112 E11xJ1412xxxxxxx
