VarioCooking Center 211 - VCC 112, All Indexes; Lid Lock, Actuators M4;M8

VCC 112, all indexes
Lid lock, actuators M4/M8
State of the locking limit switches
112 Left side
Status S6 S7
Unlocked
1 0
In motion
0 0
Locked
0 1
112 Right side
Status S18 S19
Unlocked
1 0
In motion
0 0
Locked
0 1

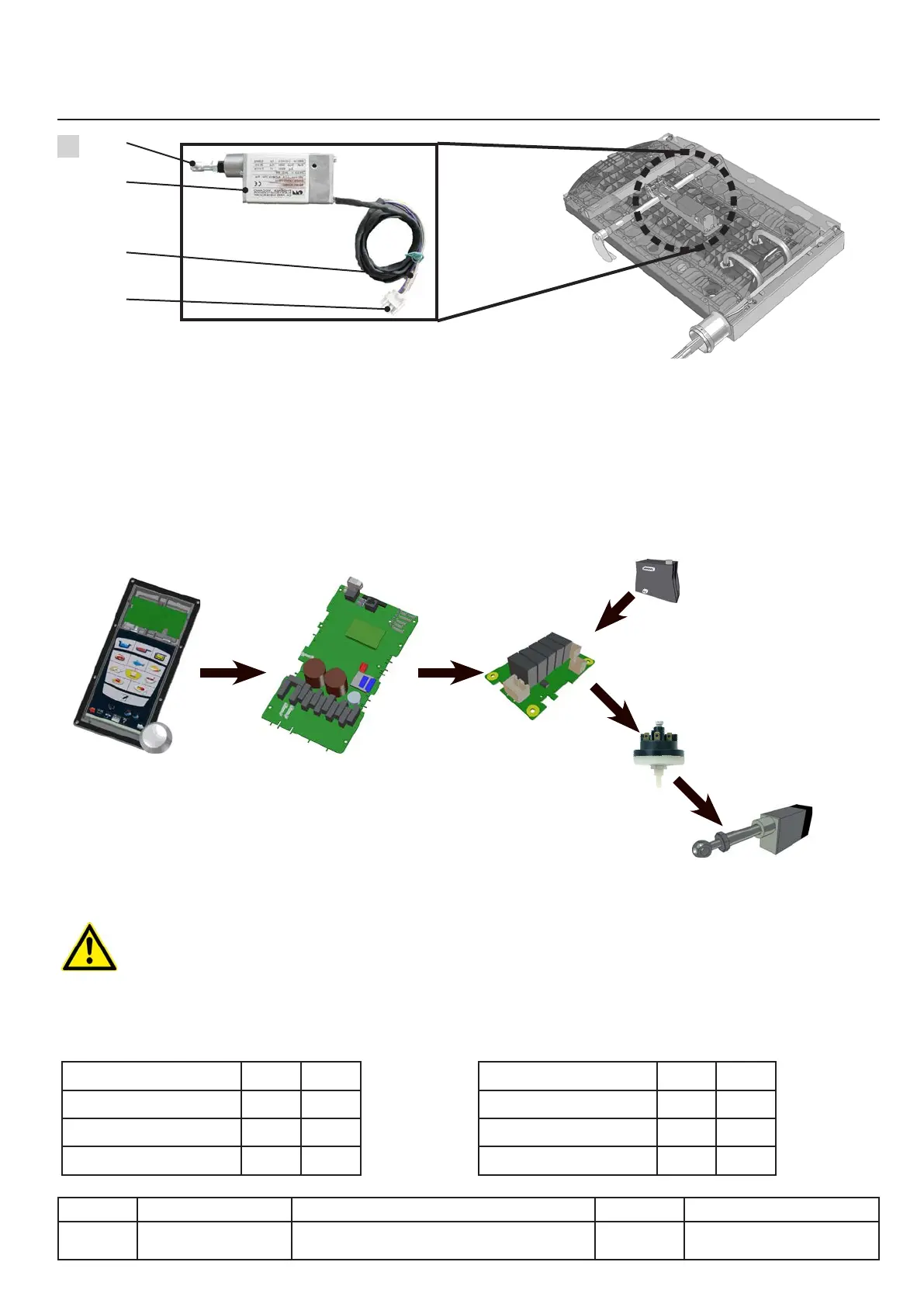

24VDC limit switch motor Fig.4
A. Actuator rod
B. Mechanism with motor 24 VDC and limit
switch S6/S7 or S18/S19 (right hand lid)
C. Limit switch connectors S6/S7 or S18/S19
(right hand lid)
D. Motor 24 VDC connectors
Attention to the wiring of the pressure switch F12 or F13. He will allow only unlocking if
pressure is lower than 20 mbar, so that locking is always possible.
v03 • July-2016 • Hen
Motorisation Module
X.23
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112P E11PH1009xxxxxxx
A
B
C
D
4
TOUCH + TFT
+ A1 (MMi)
A2 (Main Board)
M4
T2
17-24VDC
F12
20 mbar
A5 (X-Relay)
