VarioCooking Center 211 - Pan Valve Motorisation, All Models

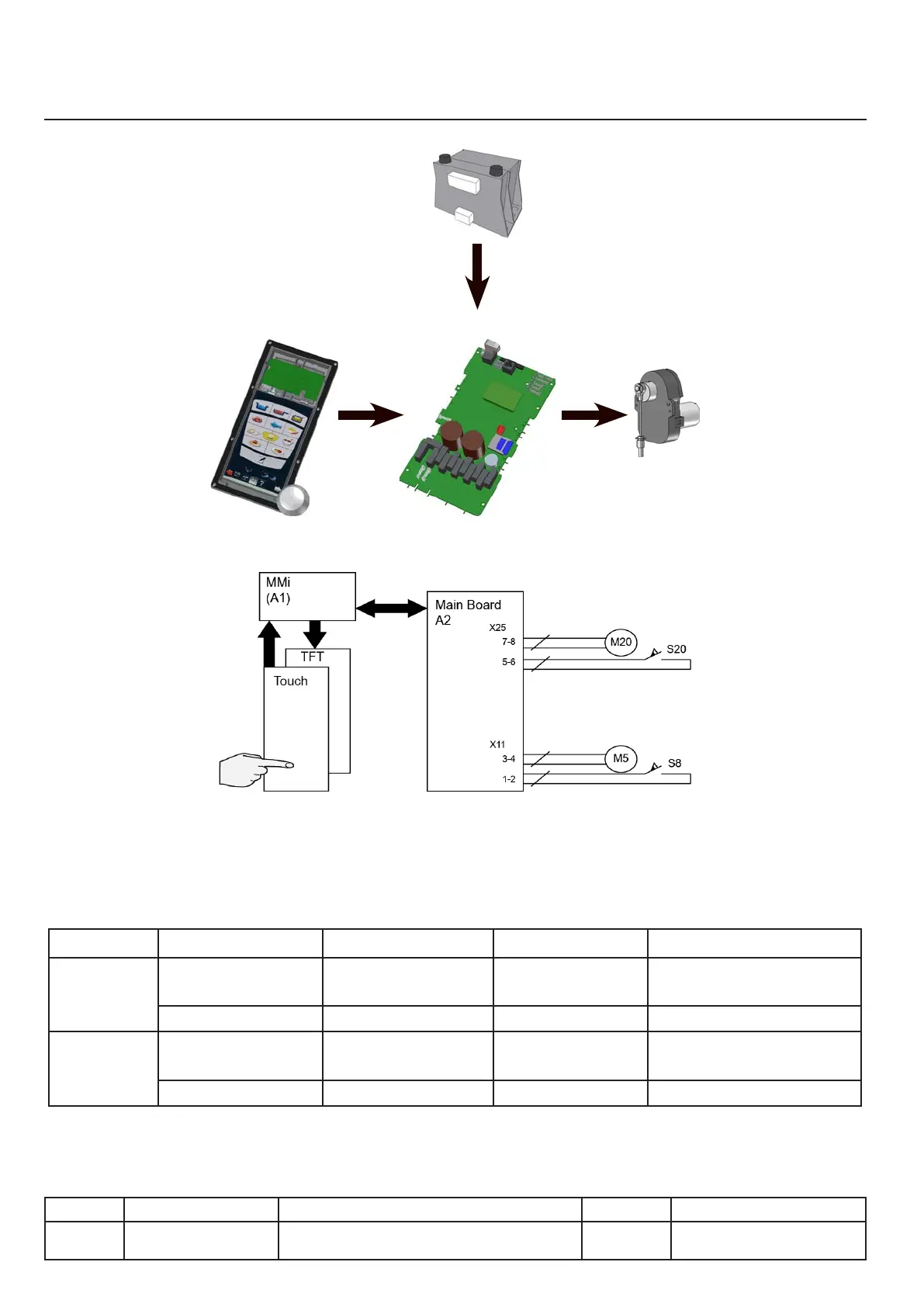

Pan valve motorisation, all models
Components
Side Action Connector Micro Switch Condition
Left Opening X11: 3/4 S8 = 1 T° B1 < 120°C
Frying mode inactive
Closing X11: 3/4 S8 = 0
Right Opening X25: 7/8 S20 = 1 T° B2 < 120°C
Frying mode inactive
Closing X25: 7/8 S20 = 0
X.38
v03 • July-2016 • Hen
Motorisation Module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112, 211, 311 ExxXH11009xxxxxxx
TOUCH + TFT
+ A1 (MMi)
A2 (Main Board) M5 / M9
T1
18VAC
