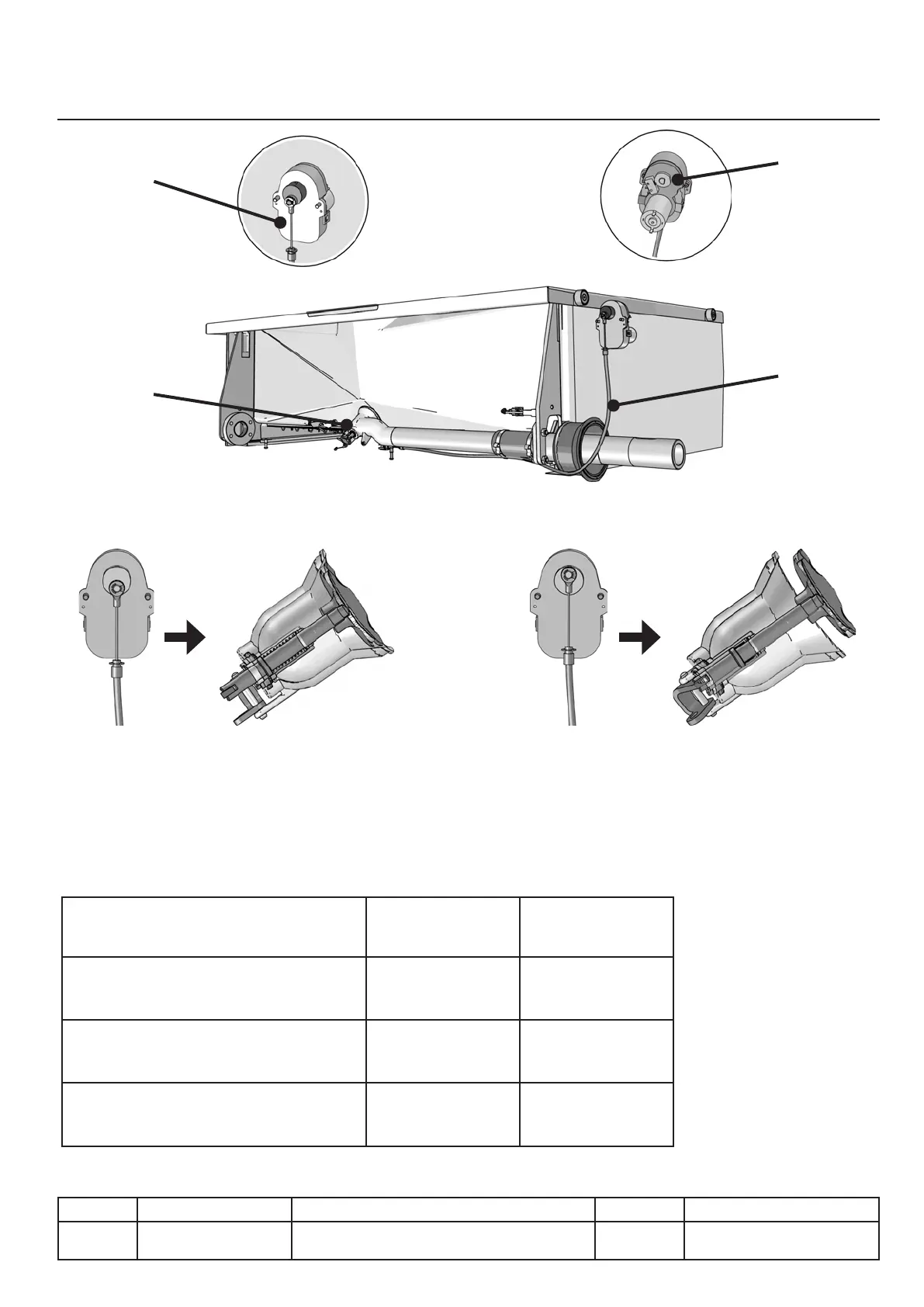

Pan valve motorisation, all models
Movement control: Principle
Motor 12VDC with micro-switch
A. Mounting traction cable on cam
B. Pan valve mechanism
Status of the micro-switch:
Status of the pan valve S8
(Left side)
S20
(Right side)
Closed
0 0
In motion
0 or 1 0 or 1
Open
1 1
C. Detail of the cam / micro-switch system
D. Traction cable
Relationship cam motor <>Status of pan valve
X.39
v03 • July-2016 • Hen
Motorisation Module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112, 211, 311 ExxXH11009xxxxxxx
A
B
C
D
