VarioCooking Center 211 - VCC 112: Components and Identification

VCC 112T, 112L & 112, from index J
VCC 112: Components and identication

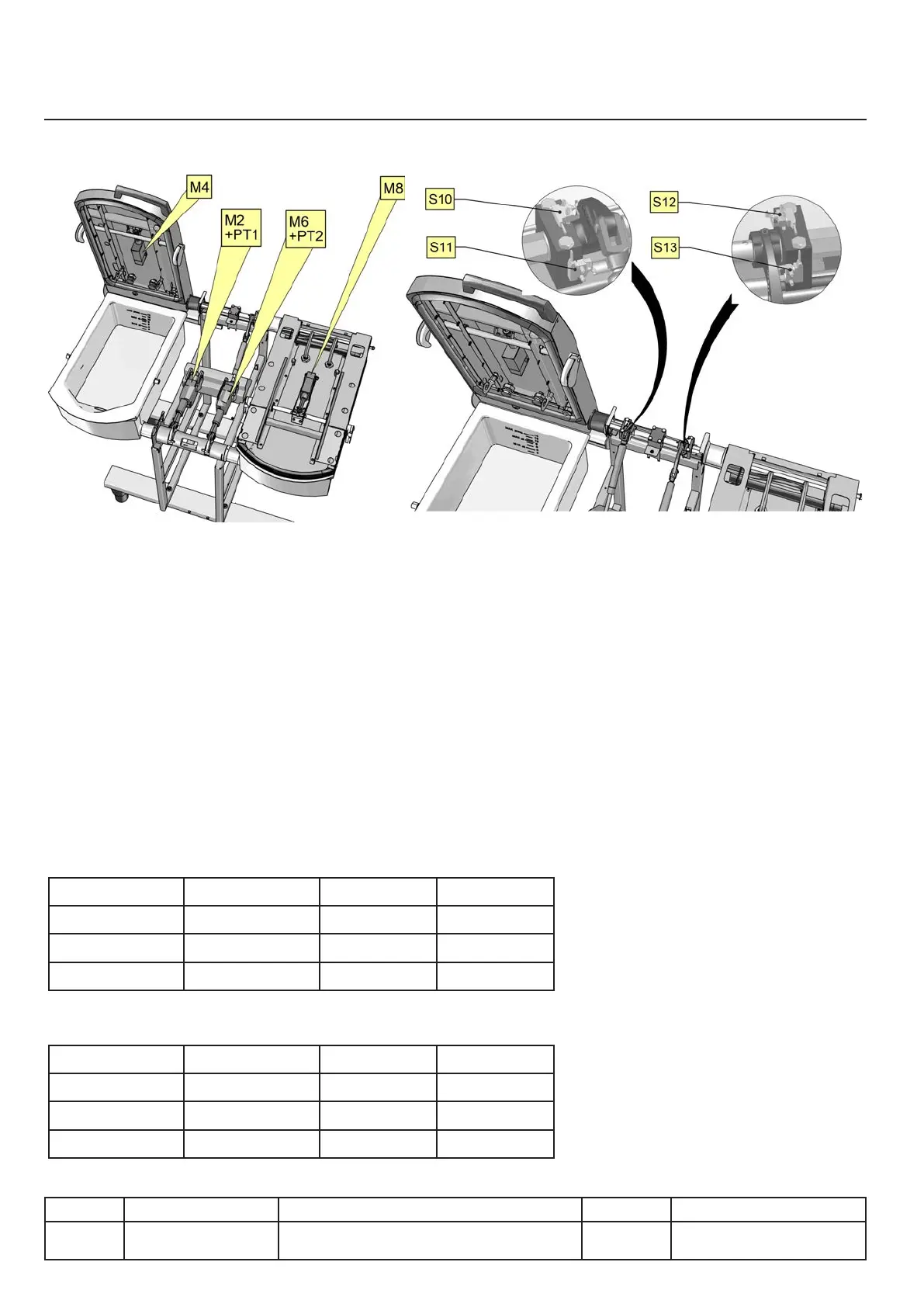

Identication of the actuators and potentiometers, VCC112
Left
●M2Lefttiltingactuator
●PT1PotentiometerformotorM2
●S10LeftAutoLiftuplimitswitch
●S11 Left lid closed limit switch
(Pressure devices only)
●M4Leftlockactuator
Right
●M6Righttiltingactuator
●PT2potentiometerofmotorM6
●S10RightAutoliftuplimitswitch
●S13 Right lid closed limit switch
(Pressure devices only)
●M8rightlockingactuator
Summary table of states of limit switch and potentiometer
Fig 1 Left side
Pan Lid PT1 S10
Down Up
< 425 1
Up Up
> 990 1
Down Down
< 2 0
Fig. 2 Right side
Pan Lid PT2 S12
Down Up
< 425 1
Up Up
> 990 1
Down Down
< 2 0
X.14
v03 • July-2016 • Hen
Motorisation Module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112 E11xJ1412xxxxxxx
