VarioCooking Center 211 - Pan Tilting, Actuators M2 - M6

VCC 112, index H

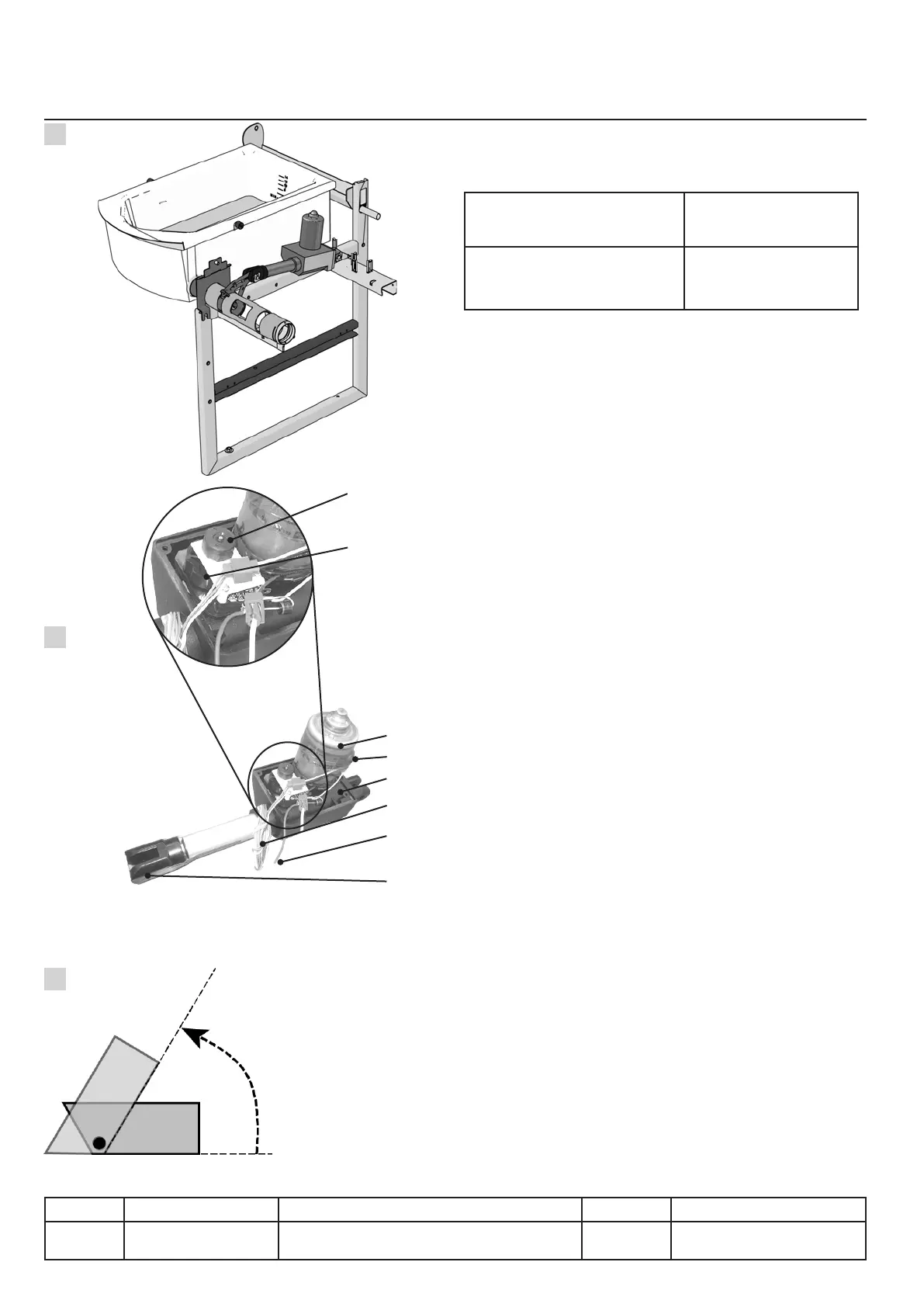

Pan tilting, actuators M2 - M6
Actuator 24VDC with potentiometer
Working angle
0° >> 57°
[0 ; +3°]
Maximum angle
(Test function)
80°
[-4 ; +4°]
Components
A. 24VDC motor
B. Klixon motor overheating protection (90°C)
C. Mechanics including a friction clutch
D. Potentiometer connectors
E. Motor connectors
F. Actuator rod
G. Measurement potentiometer
H. Safety cam: Maximum length of rod
Positions (Fig. 2)
●Downpositiondeterminedby contact with the
rear chute. Clutch protects the motor.
●Down position recognised if digital value
between 0 and 100 only
●Up position determined by reading the poten-
tiometer. Safety via limit switches built into the
motor.
v03 • July-2016 • Hen
X.20
Motorisation Module
57 °
[0; + 3 °]
0 °
Digital 0-100 Max
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112 E11xH1009xxxxxxx
3
1
2
A
H
L:
B
C
D
E
F
