VarioCooking Center 211 - Page 149

VCC 112, index H

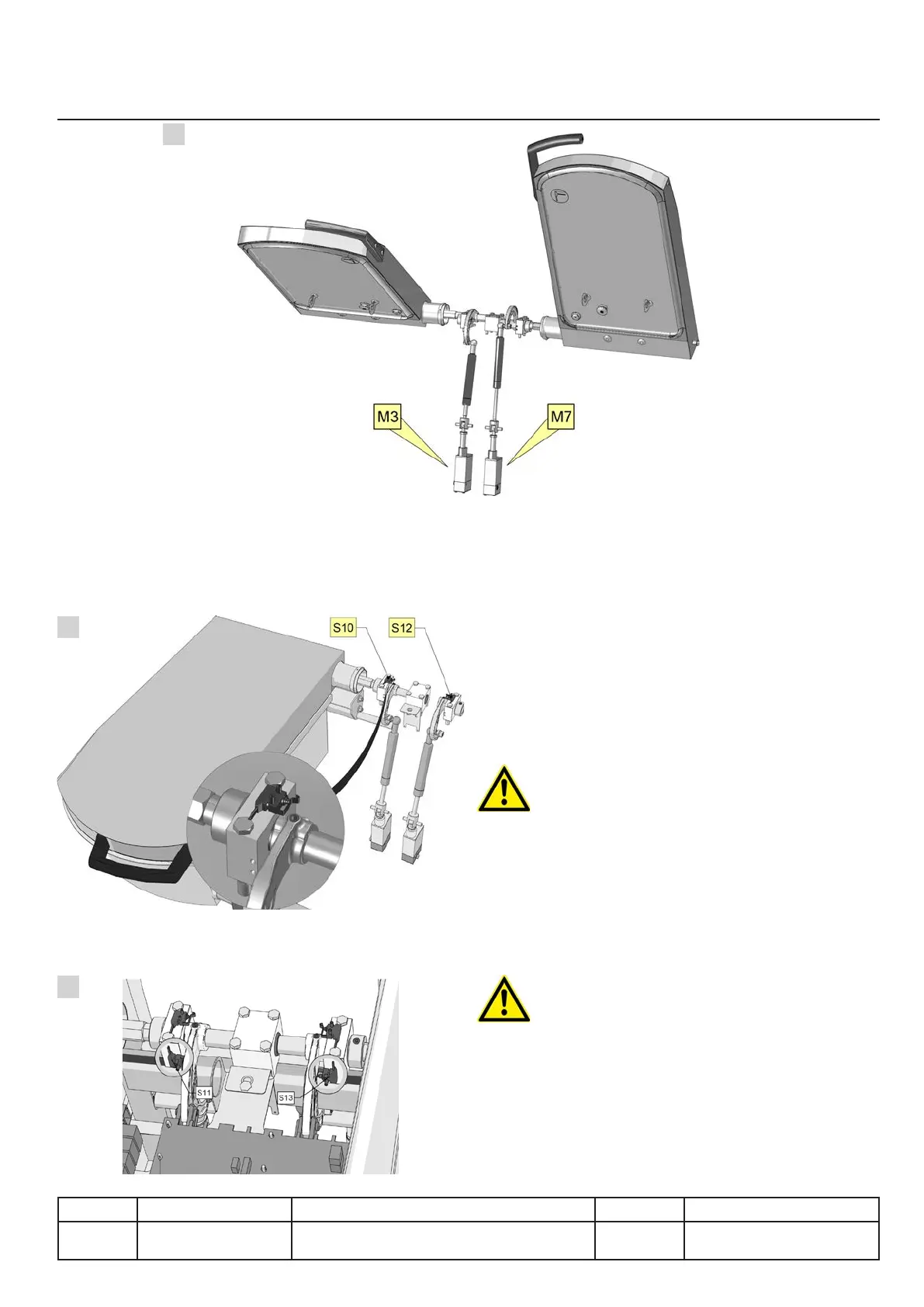

AutoLift
TM
(lid tilting), actuators M3 - M7
Detection of the Autolift
TM
position, difference between units with or without
pressure.
Non-pressure units
Pressure units
Up position of the lid: Fig. 2
●Actuatorstoponinternalmicroswitch
●Detectionvialimitswitch(S10orS12)
Down position of the Autolift
TM
:
●Determinedbystoponinternallimitswitch,no
feedback to the electronics!
Never completely lower the lid when
it is in AutoLift low position.
Down position of the lid:
●Pressureunit(ExxP...)onlytoallowthelidtobe
locked.
●DetectionvialimitswitchS11orS13
Attention! Fig.3
●DonotconfusethelimitswitchesS10/S12with
S11/S13!
●S11 and S13 are only tted to the pressure
devices, and are used to detect the closed
position of the lid to allow it to be locked.
v03 • July-2016 • Hen
Motorisation Module
X.21
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112 E11xH1009xxxxxxx
1
2
3
