VarioCooking Center 211 - Page 147

VCC 112, index H

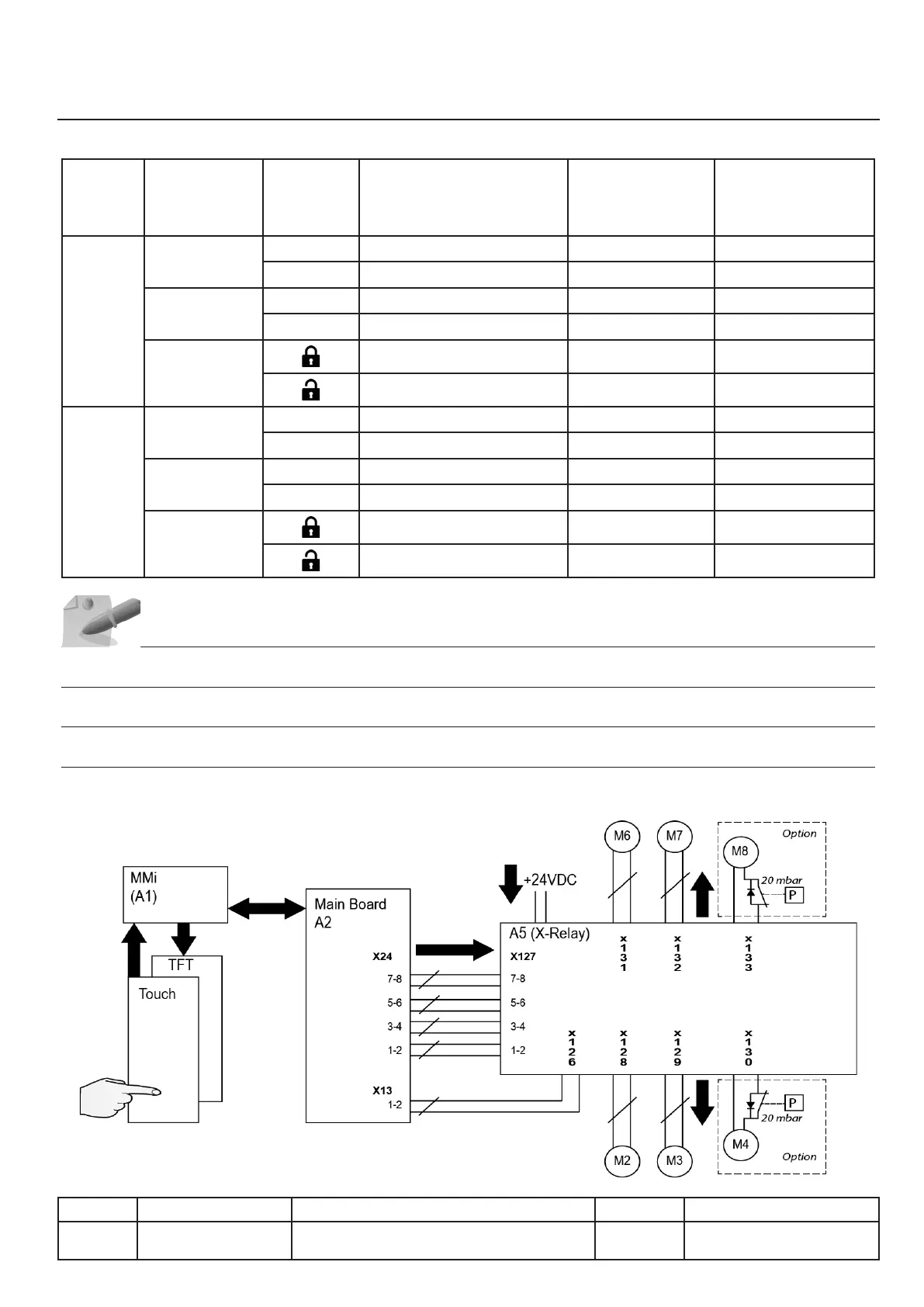

Control of movements: Principle
Control of movements
Side Element Action Board A2
Connector X24
(12VDC)
Board A23
X13
(12VAC)
Board A5
(24-28 VDC)
Left Pan ↑ X24: 1/2 X128 1(-) / 2(+)
↓ X24: 1/2 + 3/4 X128 1(+) / 2(-)
Autolift
Lid
↑ X24: 1/2 + 5/6 X129 1(-) / 2(+)
↓ X24: 1/2 + 3/4 + 5/6 X129 1(+) / 2(-)
Lock
Lid
X24: 1/2 + 5/6 + 7/8 X130 1(-) / 2(+)
X24: 1/2 + 3/4 + 5/6 + 7/8 X130 1(+) / 2(-)
Right Pan ↑ X24: 1/2 X13: 1/2 X131 1(-) / 2(+)
↓ X24: 1/2 + 3/4 X13: 1/2 X131 1(+) / 2(-)
Autolift
Lid
↑ X24: 1/2 + 5/6 X13: 1/2 X132 1(-) / 2(+)
↓ X24: 1/2 + 3/4 + 5/6 X13: 1/2 X132 1(+) / 2(-)
Lock
Lid
X24: 1/2 + 5/6 + 7/8 X13: 1/2 X133 1(-) / 2(+)
X24: 1/2 + 3/4 + 5/6 + 7/8 X13: 1/2 X133 1(+) / 2(-)
Wiring
X.19
v03 • July-2016 • Hen
Motorisation Module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112 E11xH1009xxxxxxx
