VarioCooking Center 211 - Page 157

VCC 211/311, index H

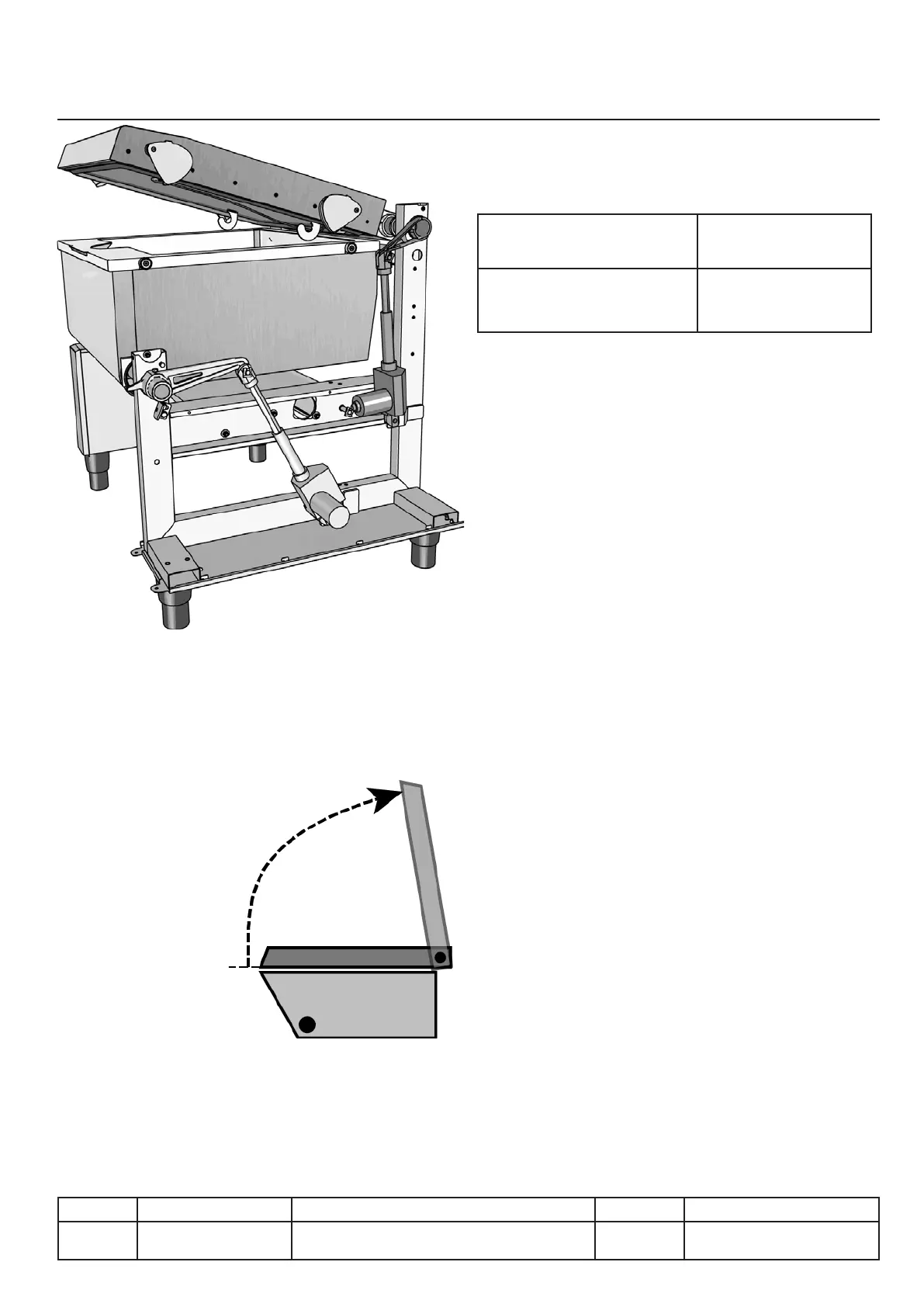

Lid tilting
Actuator 24VDC with potentiometer (for more
detail see paragraph I.17)
Working angle
0° >> 81°
[0 ; +3°]
Maximum angle
(Test function)
90°
[-4 ; +4°]
Down positions
●Downpositiondeterminedby contact with the
pan. Clutch protects the motor.
●Down position determined if digital value
between 0 and 100 only
Up position
●Up position determined by reading the poten-
tiometer. Safety via limit switches built into the
motor.
Conditions:
●Pandetectedindownposition
●Forpressuredeviceslidunlocked
v03 • July-2016 • Hen
Motorisation Module
X.29
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
211, 311 E21xH1009xxxxxxx, E31xH1009xxxxxxx
81°
[0 ; +3°]
0 °
Digital 0-100 Max
