VCC 211/311, index I

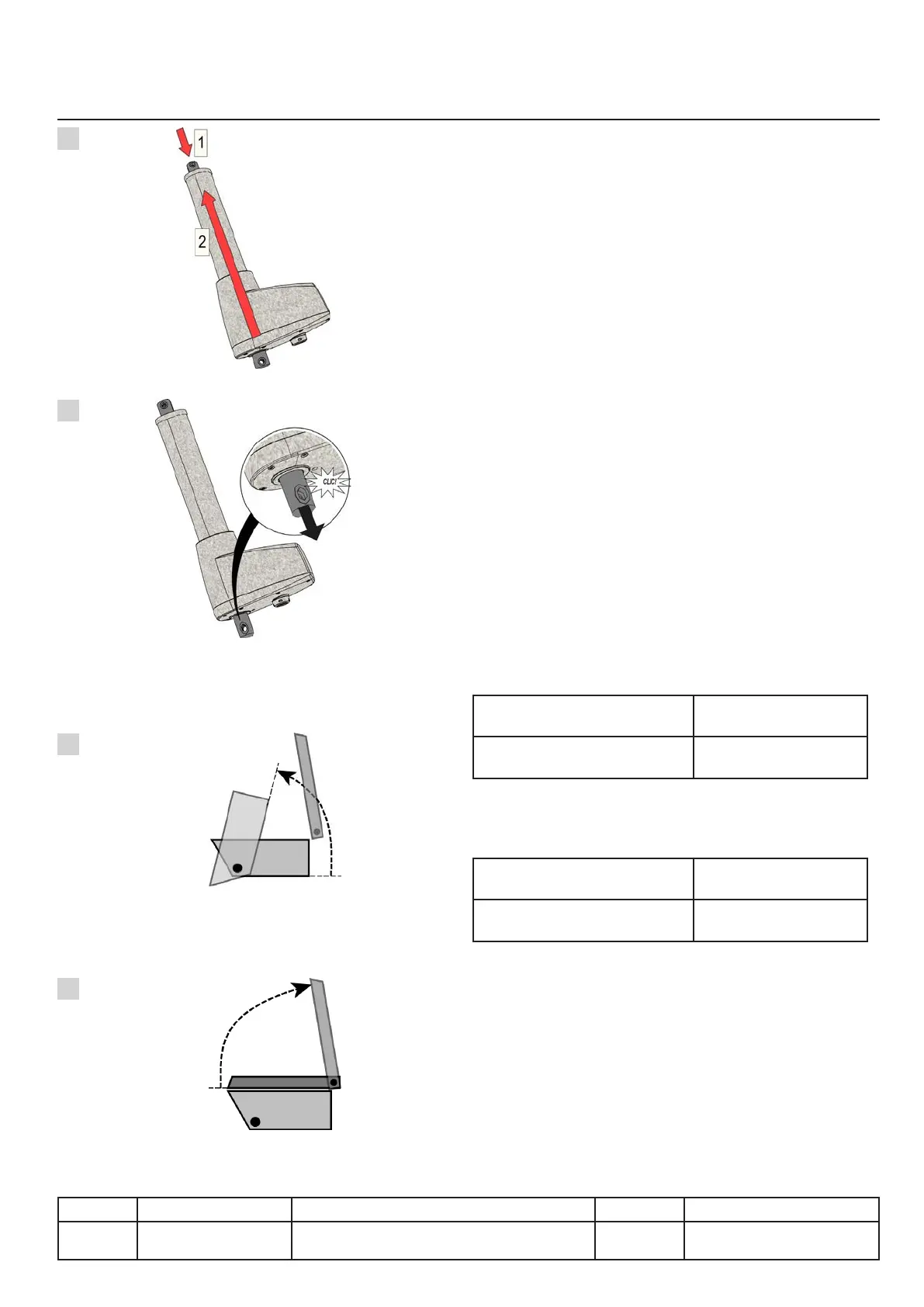

Description of the pan/lid tilting actuator
Operating of the release through mi-
cro-switch
When pan or lid tilting reaches his end position (1)
the actuator shrinks on itself (2) Fig.1
The shrinking will cut off the power supply
through the integrated release micro-switch.
Fig. 2
Up and down position
●Forthelowerpositionrefertotheservicemode,
since software version 01-01-00 the posi-
tion recognized by the unit is indicated in the:
Diagnostic > Real time measurement
●As for the lower position, the upper position is
calculated from the value delivered by the po-
tentiometer
●The maximum length is secured through an
actuator internal switch.
Pan potentiometer values:
Pan down
Digit < 50
Pan up
Digit > 970
Valeurs potentiomètre couvercle
Lid down
Digit < 50
Lid up
Digit > 718
X.31
v03 • July-2016 • Hen
Motorisation Module
1
3
4
2
Ligne Appareils Numéro de série (A partir de) Sw Révision
VCCM
VCCWE
211, 311 E21xI1602xxxxxxx, E31xI1602xxxxxxx
85°
[0 ; +3°]
81°
[0 ; +3°]
0°
0°
