VarioCooking Center 211 - Page 162

VCC 211/311

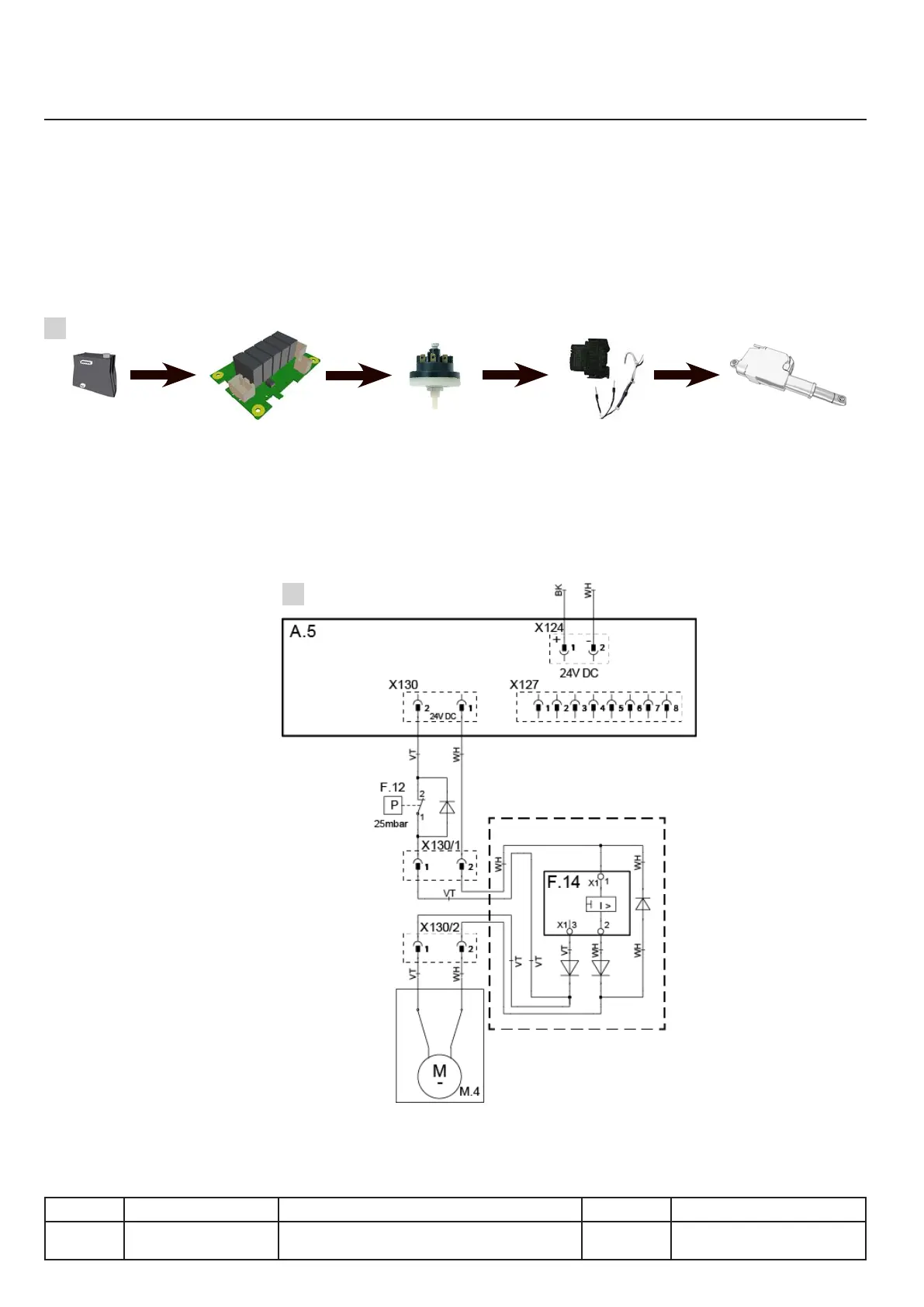

Torque limiter, Index H units
Pressure units 211/311 until August 2011
Thesedevicesarettedwithatorquelimitermountedinseriesinthesupplytotheunlockingmotor.
If the power supply is greater than 2A to the unlocking motor M4 the torque limiter stops the power
to the actuator.
Components
Wiring
X.34
v03 • July-2016 • Hen
Motorisation Module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
211P, 311P E21xH1009xxxxxxx, E31xH1009xxxxxxx
A5 (X-Relay)
M4
F12
20 mbar
F14 M4
T2
17-24VDC
1
2
