VAT 613 Series User Manual

OPERATION Series
613
106/149 Edition 12.08.2022 984360EC
Optimizing P-Gain
While optimizing P-Gain, the gas flow determined above has to be constant all the time.
Start optimization with P-Gain set to 1.0 and I-Gain set to 0.0.
Set chamber pressure to SP2, wait until the pressure is stable. Set pressure to SP1. If the transition
from SP2 to SP1 results in a significant pressure over shoot or even does not stabilize at all, the P-
Gain is too high. If there is no over shoot and the pressure reaches SP1 asymptotically and very slow,
P-Gain is too low.
The optimal P-Gain value is found if the transition from SP2 to SP1 results in a slight pressure over
shoot. It does not matter if there is still a deviation between SP1 and actual pressure.

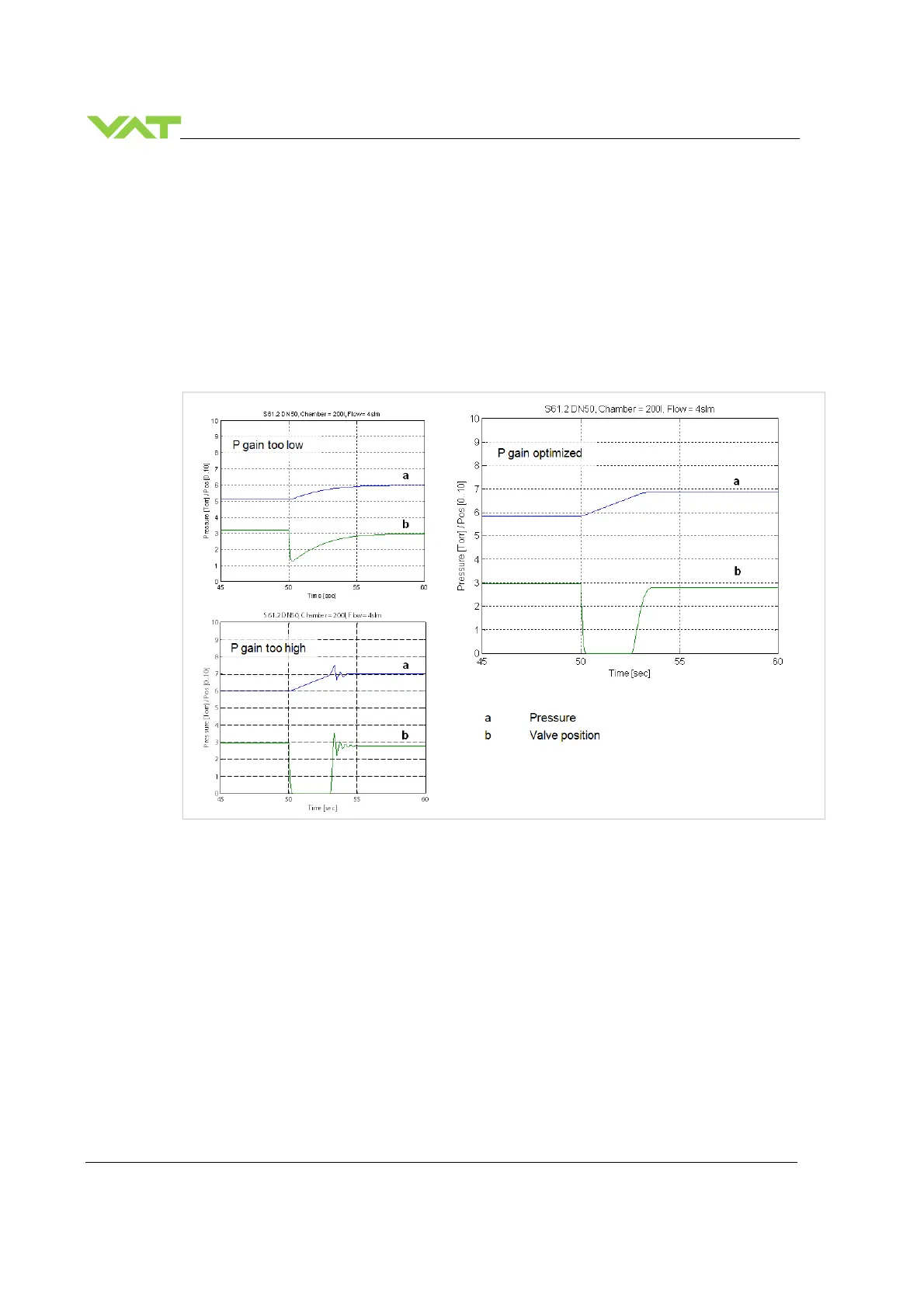

Example:
