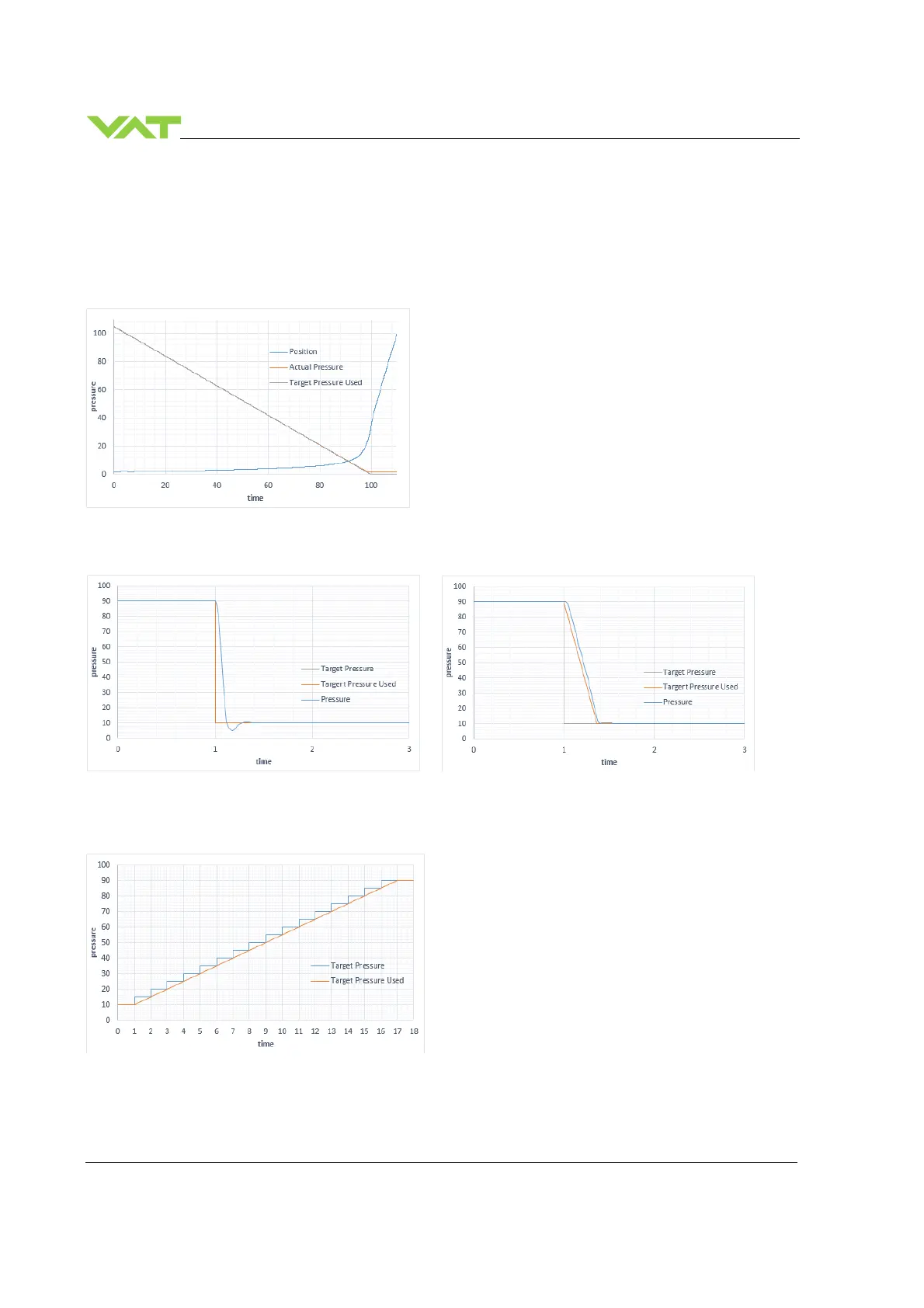

6.3.5.4 Applications Examples
Soft pump
Ramp Mode = Time
Ramp Time = 100 sec
Ramp Type = Linear
Target Pressure = 0
Minimize pressure over- or undershoots
New Target Pressure without pressure ramp New Target Pressure with pressure ramp
Smoothing a staircase
Pressure ramp with new target pressure to the valve every second is smoothed by a 1 sec internal ramp
Ramp Time = 1sec
