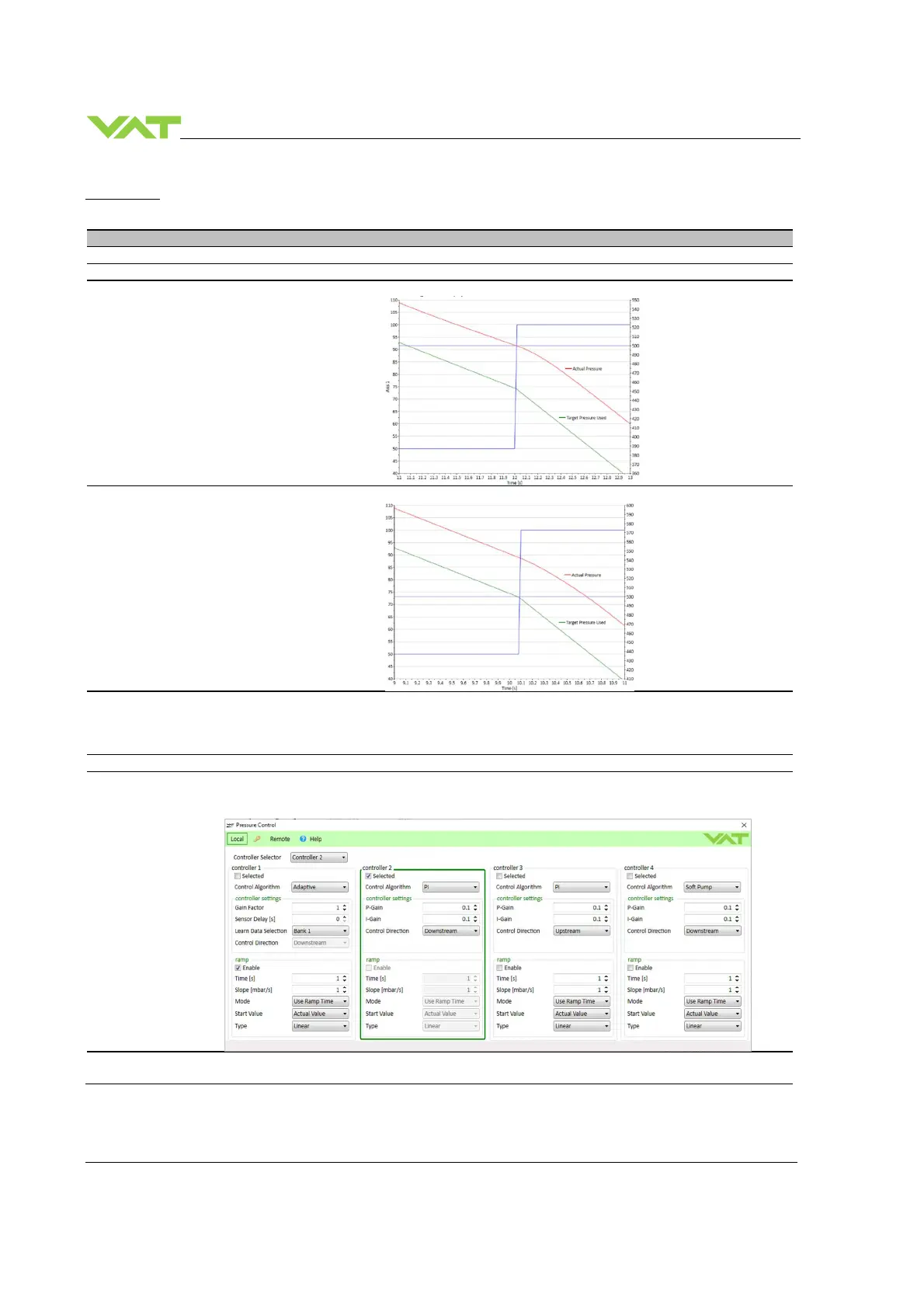

Parameters:
Location: CPA/Navigation/Parameters: Pressure Control.General Settings.Profile Ramp
Parameter Description
Enable
Switches on/off the function
Threshold Mode
Defines which pressure the threshold refers to
Actual Pressure
Change happens if
Actual Pressure
reaches the
Threshold
Target Pressure Used
Change happens if
Target Pressure Used
reaches the
Threshold
Ramp Type
Defines the shape of the ramp
Linear
Logarithmic
Exponential
Actual Slope
Show the actual use slope during pressure control in mBar*/sec.
Controller Selector
Bitmap
Determines which Controller uses the profile ramp.
When a Controller is selected, the ramp is no longer used in the controller itself. Therefore the
ramp is greyed out in the CPA.
Segment Selector
Bitmap
Defines which segments is used for the Profile Ramp.
