Segment x
Threshold
This is the upper limit of the segment. The lower limit is defined by the next lower
Threshold
, or
the lower limit is 0 if there is no lower Threshold.
If the value exceeds the top threshold, the slope value of the top segment is used

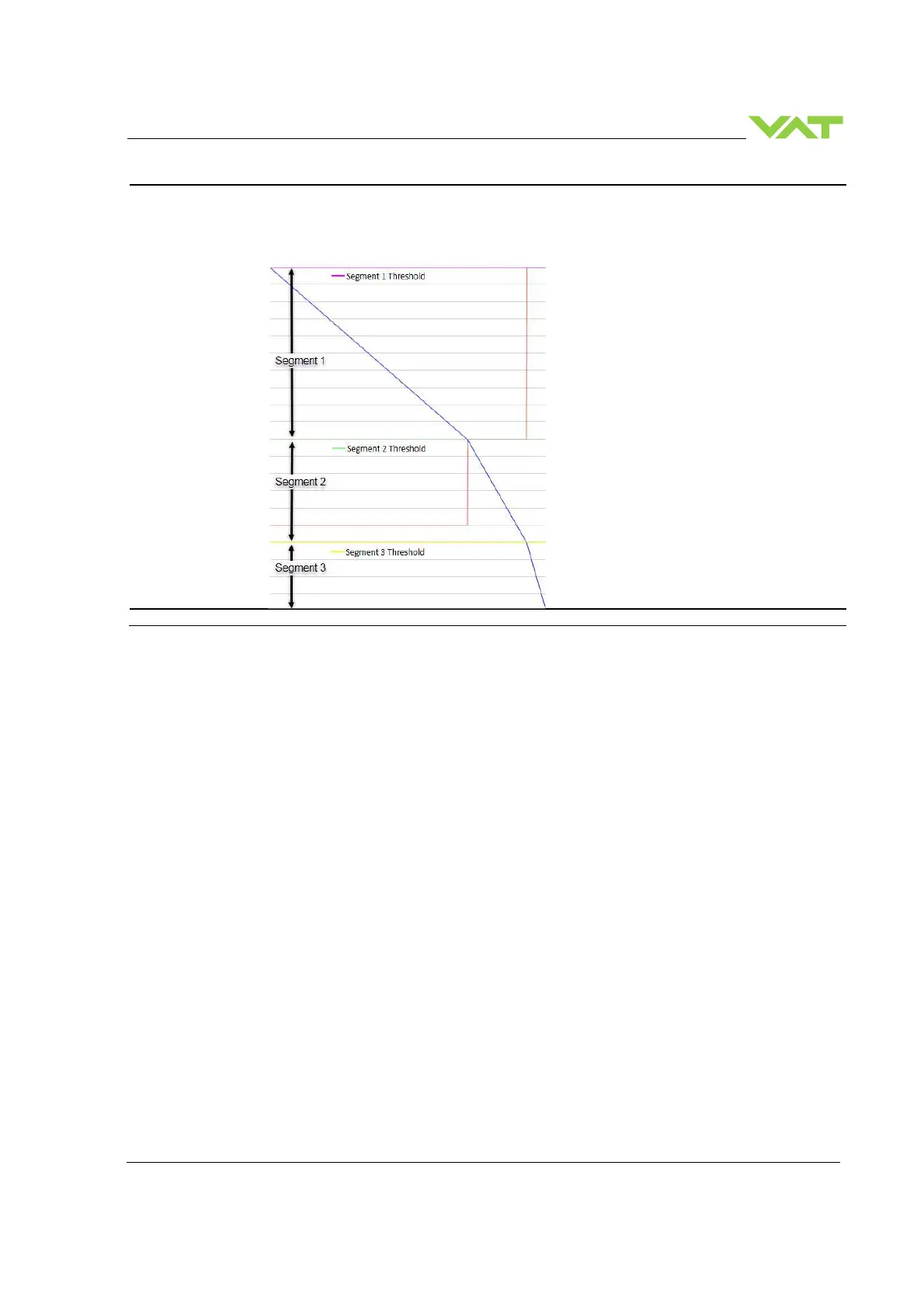

(Segment 1 in
below example)
Segment x Slope
Defines the slope (
mBar*/sec
) in the segment
* Unit adjustable
