Description
Required tool

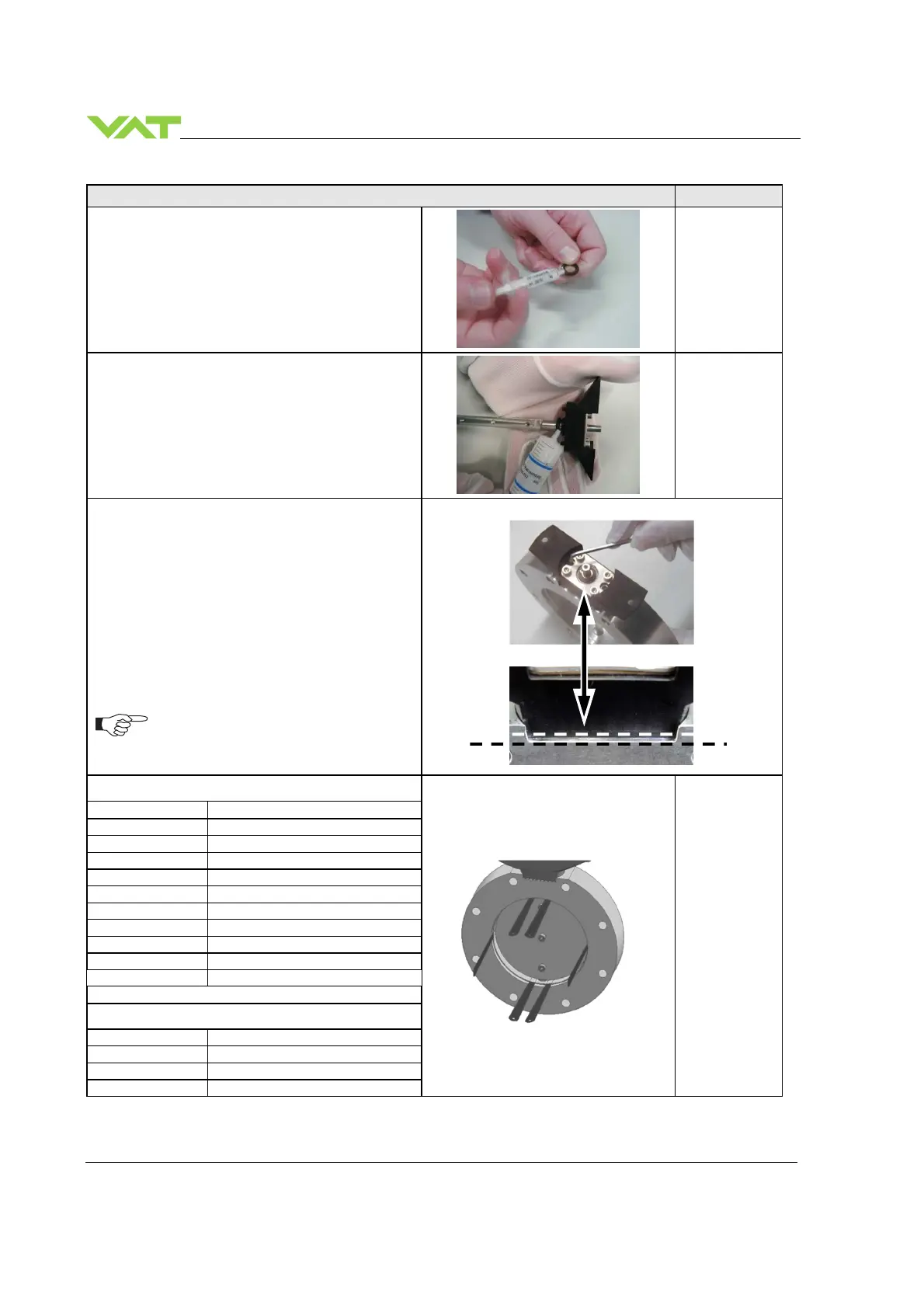

11. Lubricate seal contact surface of valve body
with a slight film of vacuum grease (0.025 ml).
12. Lubricate each O-ring with a slight film of
vacuum grease (0.0125 ml).
13. Lubricate seal contact surface of shaft with a
slight film of vacuum grease (0.0125 ml).
14. Slide both O-rings onto shaft till the end.
15. Deposit 0.0375 ml vacuum grease between
the O-rings
16. Clean shaft from vacuum grease.
Vacuum grease
Clean room
wipes
17. Assemble mechanical unit in reverse order as
disassembled (steps 6 to 5).
18. Align pedestal parallel to valve body and
tighten the 2 mounting screws with 2.5 Nm
.
Make sure the pedestal is aligned
to be parallel with the valve body
Allen Wrench 3mm
19. Center plate.
Allen Wrench
3 mm
Adequate
feeler gauge
Size Feeler gauge mm
25
0.04
40 0.04
50 0.04
63
0.04
80 0.06
100
0.06
160 0.08
200
0.08
250 0.10
320
0.12
20. Tighten plate screws with
Size Nm
25
1.1
40 2.5
>=50
2.5
Actuator side
