Description
Required tool

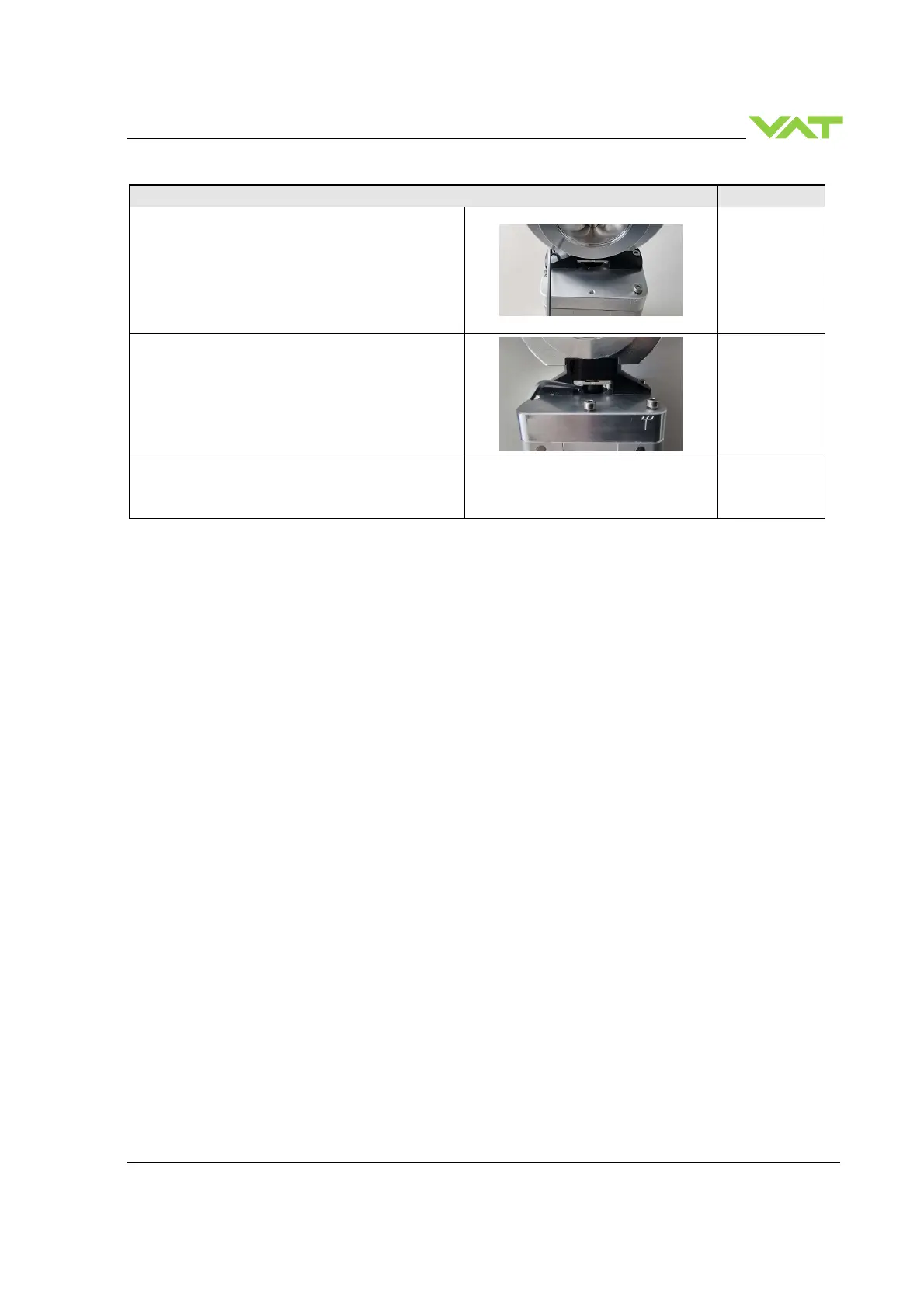

21. Assemble control and actuating unit to valve
unit. Tighten mounting screws adequately.
Allen Wrench
3mm
22. Tighten clamp coupling:
• with steel coupling 2.2 Nm
Allen Wrench:
steel coupling
2.5 mm
23. Reinstall valve into vacuum system according
to chapter «Installation».
