VAT 613 Series - Page 76

INSTALLATION Series
613
76/149 Edition 12.08.2022 984360EC

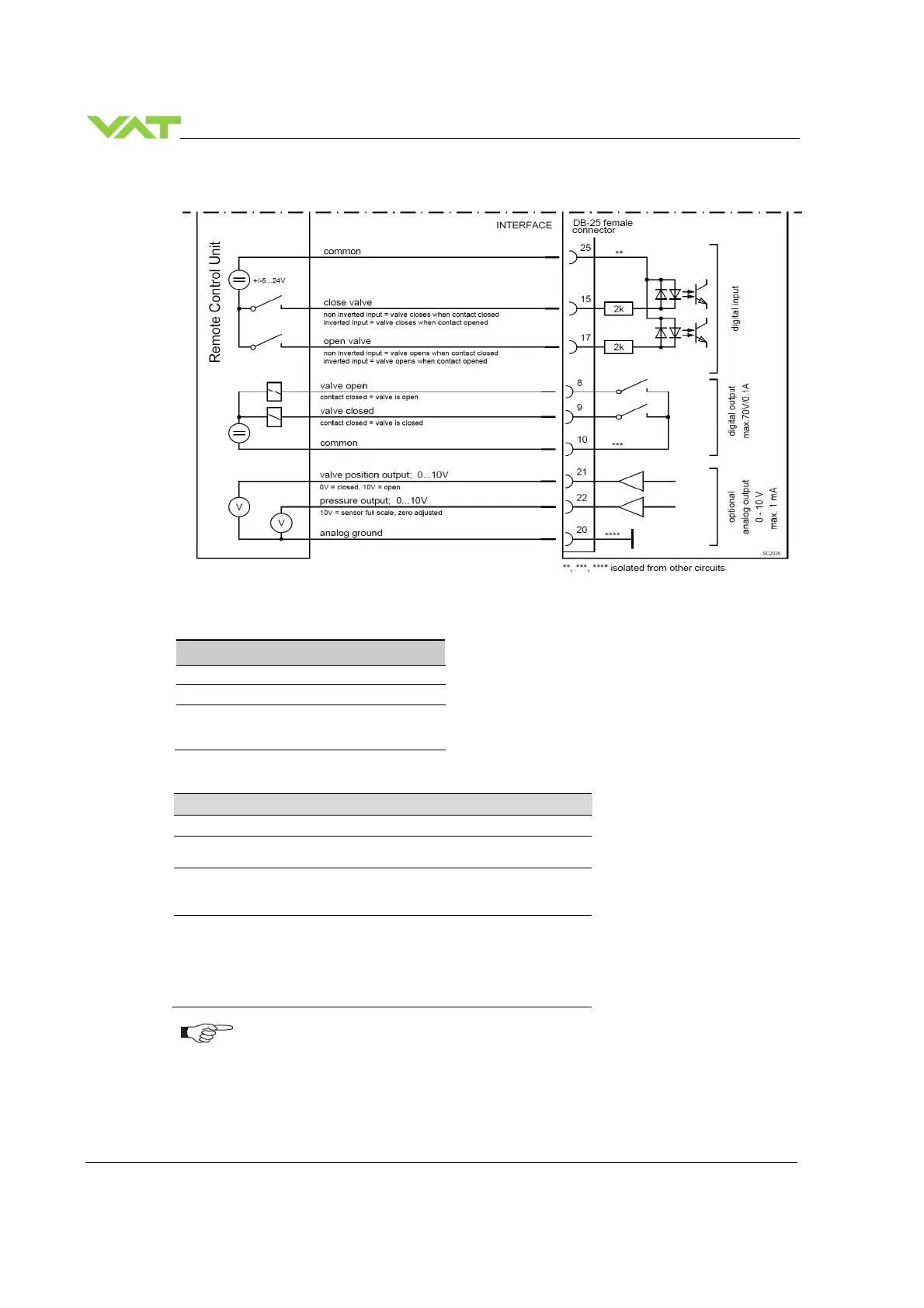

5.12.9.2 Schematic, Voltage source for digital inputs
5.12.9.3 Digital Input
Pinout
Pin Default Function
15
INPUT 1
Interlock Close
17
INPUT 2
Interlock Open
23
25
COMMON
COMMON
Switches
Voltage Source
Configuration
Parameter Description
Enable
1
Enables the input
State
0
Not active
1 Active
Functionality
0
Interlock Open
1 Interlock Close
2 Hold
Inverted
Input
State
Function
0
Not Inverted
Off 0 Off
On 1 On
1
Inverted
Off 1 On
On 0 Off
The INTERLOCK function has priority over the remote interface (HOLD does not)
INTERLOCK CLOSE has priority over INTERLOCK OPEN
