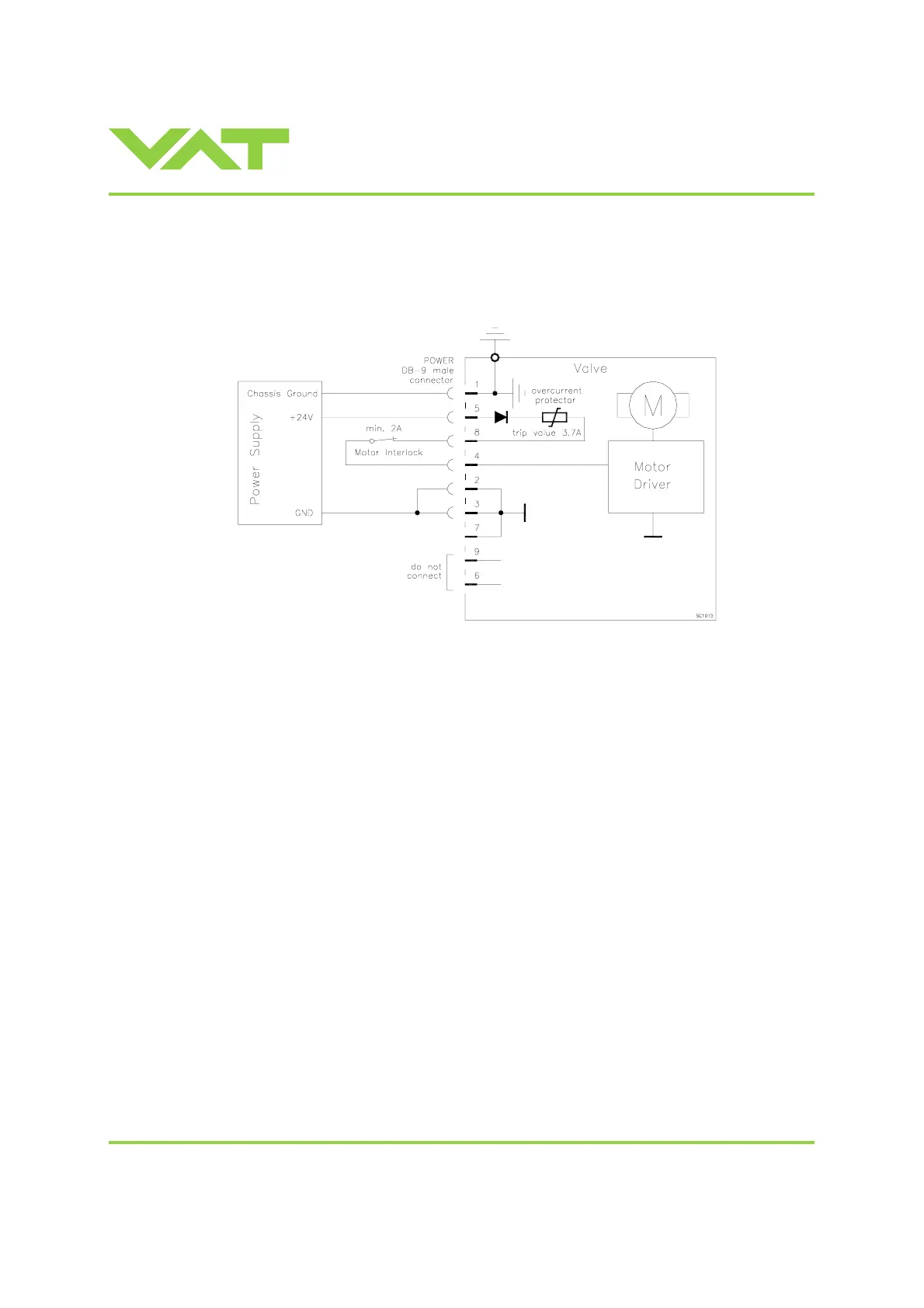

2.6.6 Power connection for Slave valve only
[650 . . - . . . S - . . . . or valves configured as slave]
Note: Do not connect other pins, that may damage power supply or controller!
Connector: Use only screws with 4-40UNC thread for fastening the connectors!
Pins 4 and 8 must be
bridged for operation!
An optional switch would allow
for motor interlock to prevent
valve from moving.
