Installation, Operating & Maintenance Instructions
Series 650 DN 100-250 (I.D. 4“ - 10”), CC-Link
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
280672EB
2010-12-15
86/94

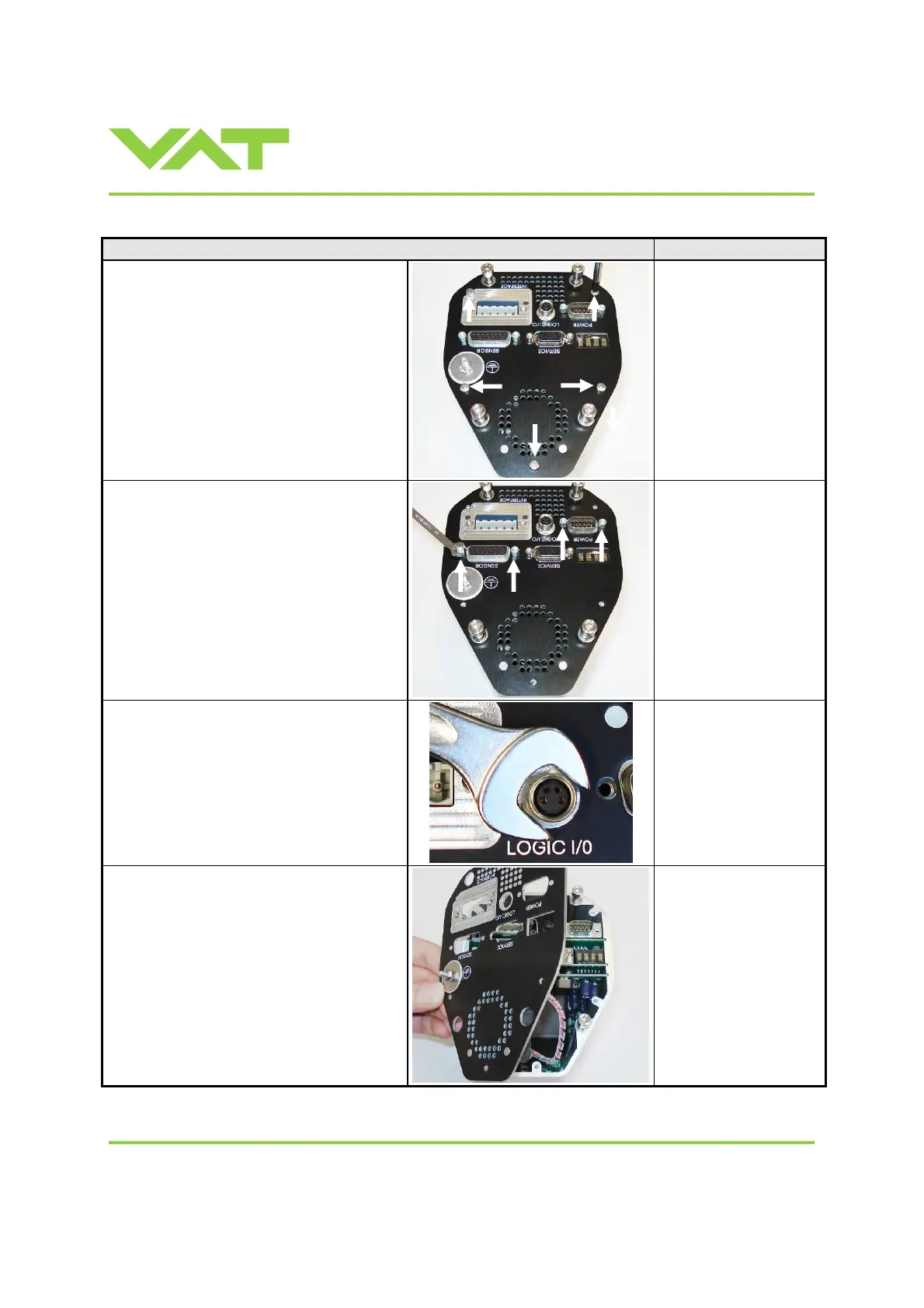

Description Required tool
1. Remove the panel screws
Pozidriv screw driver
size 1
2. Remove female screw locks from POWER
and SENSOR connectors
Open end wrench 4.5 mm
3. Loosen and remove the LOCIC connector
screw
Open end wrench 10mm
4. Lift the panel carefully
