Vatech A9 (PHT-30CSS)
Technical manual
VDH-TeM-098
34 / 214
COPYRIGHT© 2020 VATECH.
4. Disassembly of vatech A9(PHT-30CSS) Covers
• The truss head screws on the cases of equipment are covered with
rubber caps. Remove the rubber caps before unscrewing the truss head
screws.
• In this manual, the procedures for removing the rubber caps are omitted
for convenience.
• The following illustr
ations may look different from actual products
depending on the options.
4.1. Vertical Frame Part

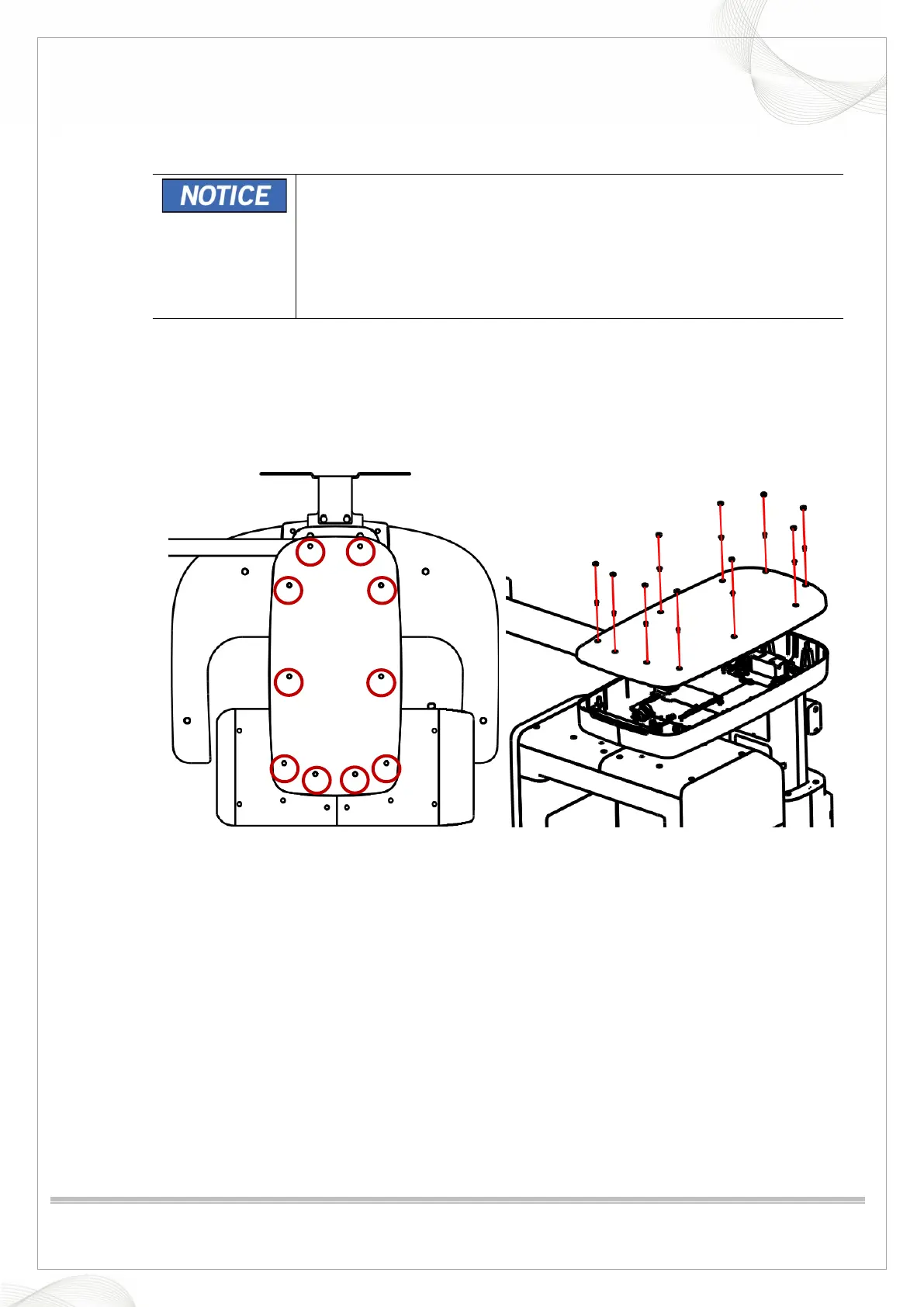

4.1.1. DISASSEMBLY OF THE VERTICAL UPPER COVER
1. Loosen all bolt caps and bolts on the VERTICAL UPPER COVER.
By doing this, you can access
- Ethernet Grabber
- Main MCU BOARD (MCU028)
- Power Board
- Noise Filter
To Next Page
