6.2. Right and Left Pin Distance Calibration

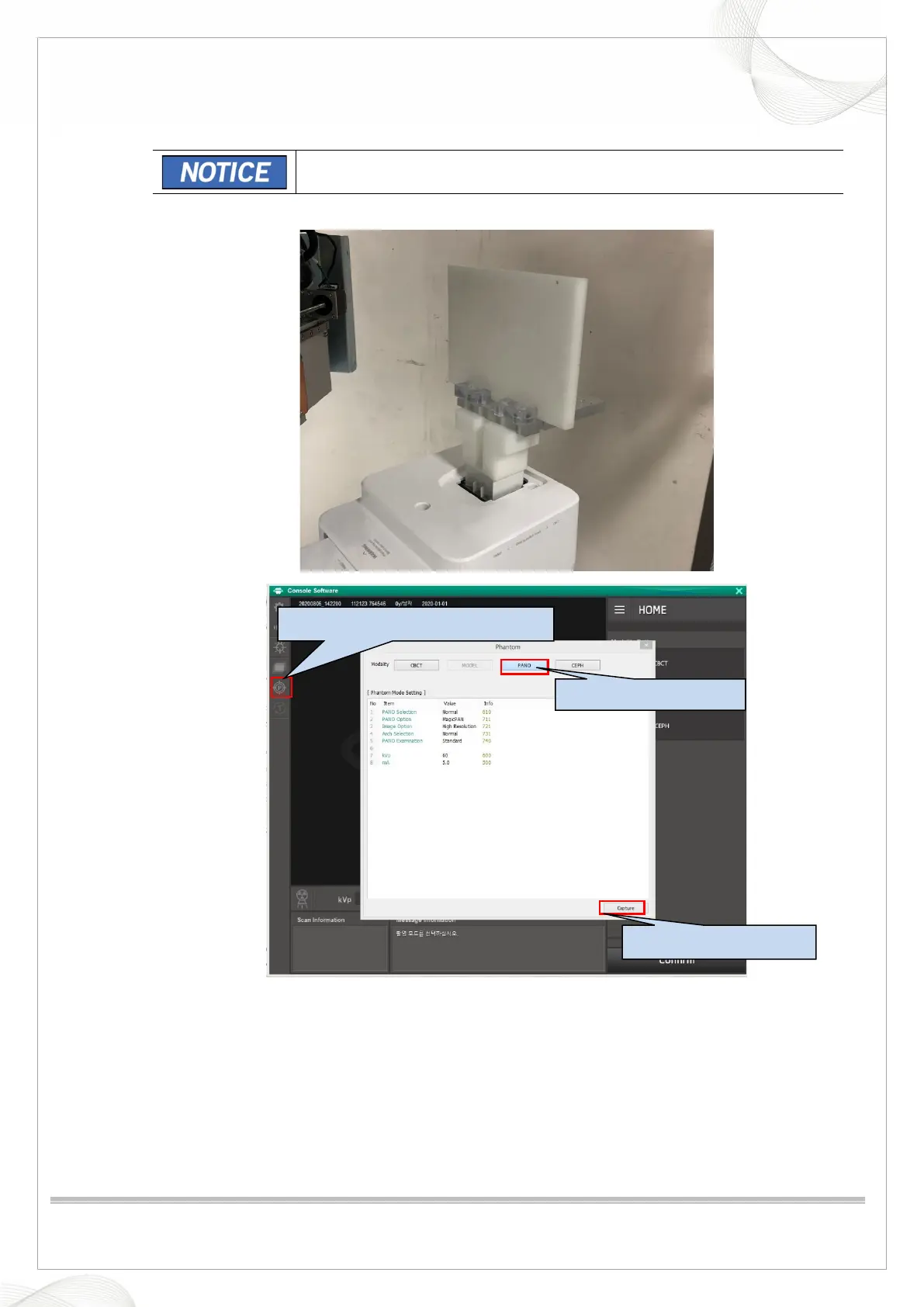

• Make sure to move the Chin Block to the PANO Mode Position.
1. Attach the PANO BALL Phantom on Chinrest.
2. Run the Console Software and click the Phantom Capture Mode icon.
3. Click the PANO mode and acquire the phantom image.
4. When the image acquisition is completed, run the VAKCAP.exe file.
1. Click the Phantom Capture Mode.
2. Click the PANO mode.
3. Click the Capture buton.
