Vatech A9 (PHT-30CSS)
Technical manual
VDH-TeM-098
121 / 214
COPYRIGHT© 2020 VATECH.
4. PANO Collimator Alignment
4.1. PANO Collimator Alignment
1. Run the C:\VCaptureSW\Acquisition\PANO\WidePANO\VACAP.exe file.
2. Send [SPM_PANO], [SPM_PSON], [SPM_FIPM_0004], [SPM_FISS_0001], [SPM_FISM_0001],
[SPM_COLM_0007] commands to the command window to set the PANO sensor and collimator.
3. Send [SPM_HV___0740], [SPM_HA___1200], and [SPM_SSB_] commands in the VACAP’s
Command window, and acquire the image.

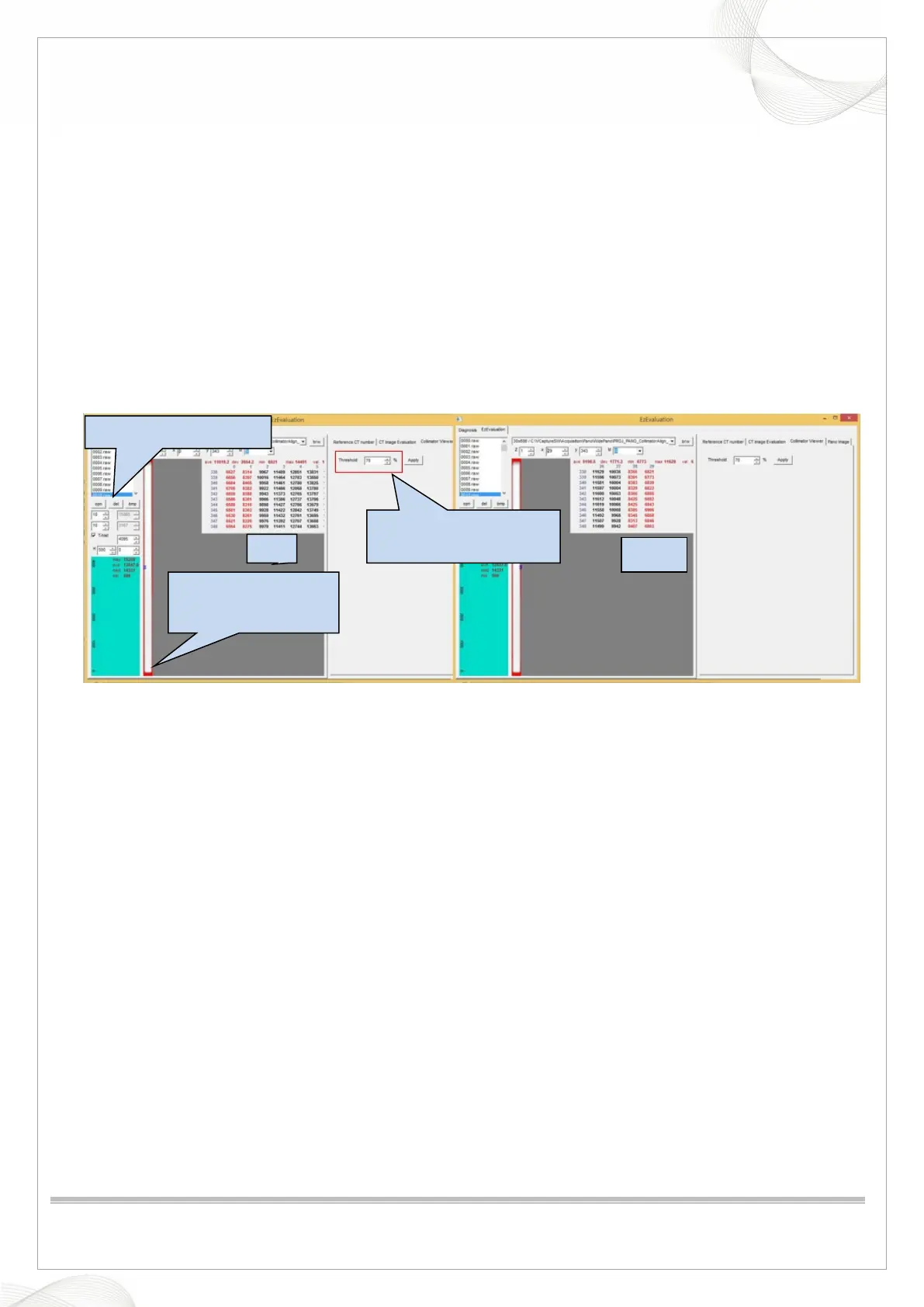

4. Run EzEval.exe file, choose EzEvaluation for the tap menu on the top left and choose collimator
viewer from the tap menu on the top right.
5. Set the threshold value concerning the following standard, and check 0010.raw to check if it
satisfies the collimator alignment standard below.
6. If the Left/Right does not meet the standard, adjust the [SPM_CCST_XXXX] command.
7. Top /Bottom should be 1~10 pixels. If it does not meet the standard, check the collimator position
and move it.
The threshold 70%
area is marked in red.
click the Apply button.
