V
atech
A9
(PHT
-30CSS)
T
echnical manual
VDH
-
Te
M
-0
98
59
/ 214
COPYRIG
HT© 20
20
VAT
E
C
H
.
ALL RIGHTS RE
SERVED
3.5.
CT sensor
: Bright calibration
•
St
ay outside of the X
-
ray shi
elding room during Bright
Calibration data
achievement.
3.5.1.
Bright calibration: 2 points
1.
Run the C:
\
VCa
ptureS
W\
Acquisition
\
CBCT
\
Wi
deP
ANO
\
V
ACAP
.exe file.
2.
In the
Settings
tab and

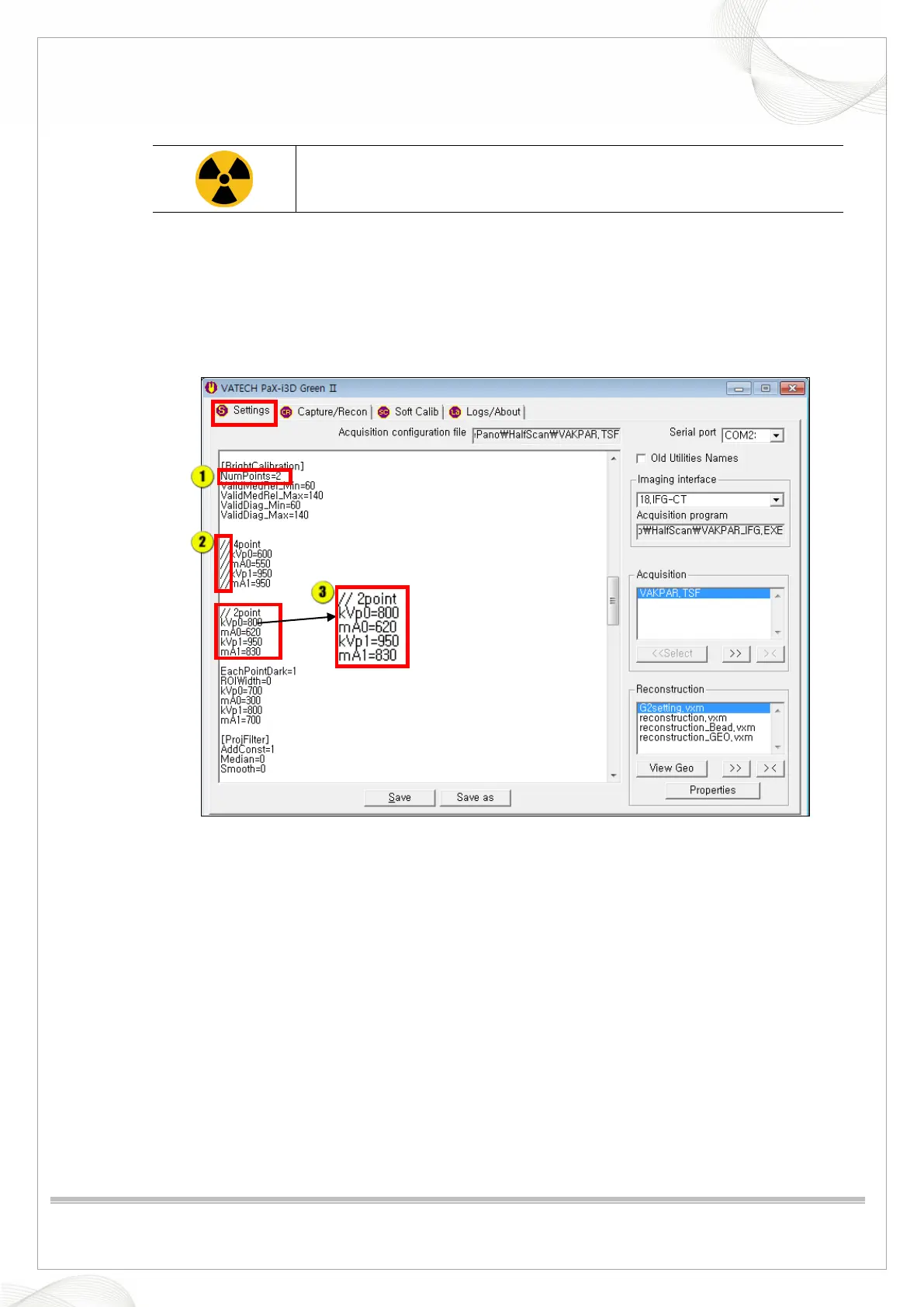

make sure that t
he parameters unde
r [BrightCalibr
ation] are as
shown below and
click the
Save
butt
on
i
f som
ething is changed.
59
61
