4.3. Handle Frame Align
4.3.1. Rotator Position setting command

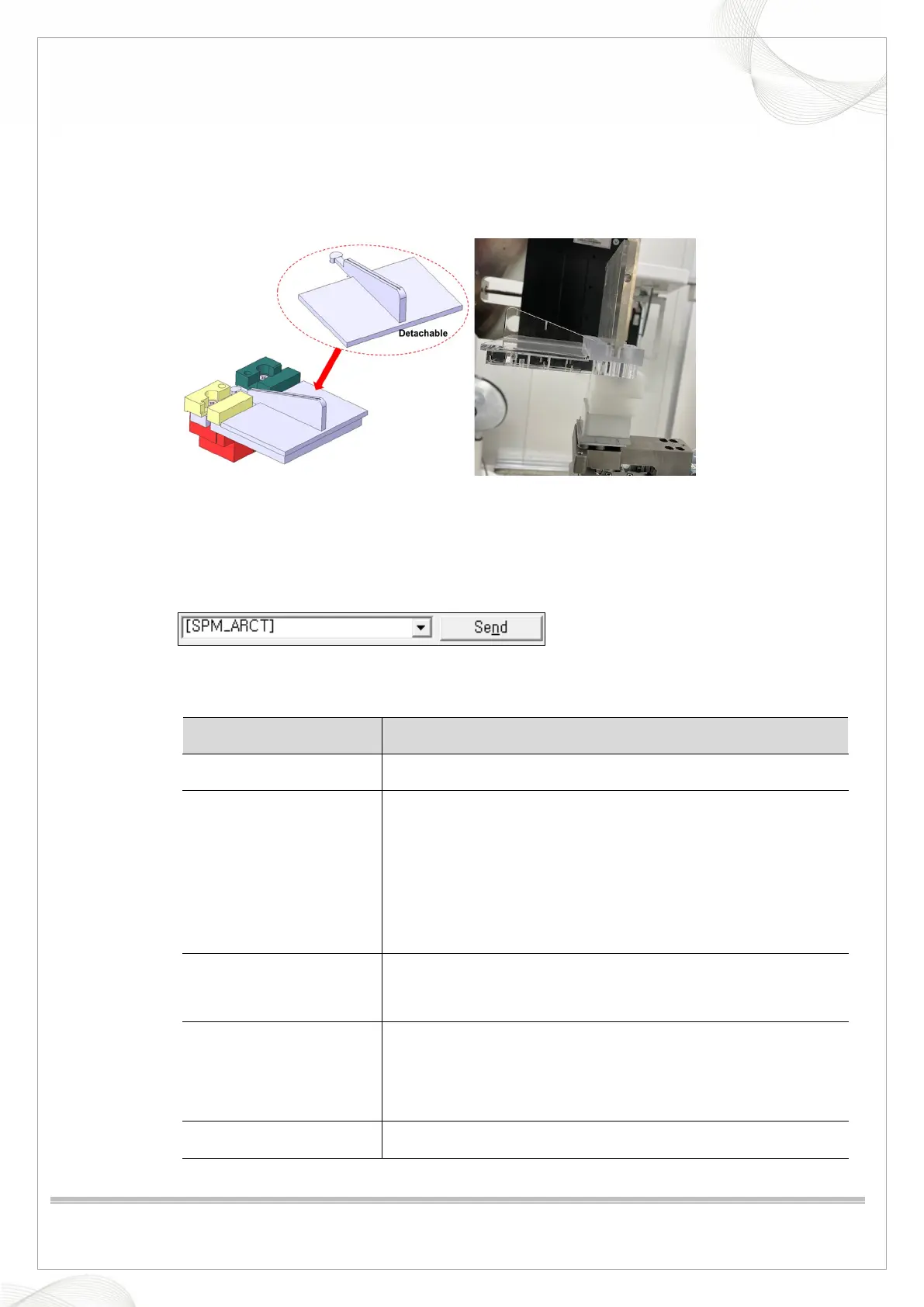

1. Make sure that the Handle Frame Align Jig is at the Bite position in PANO Mode as shown in
the picture below and then fasten.
Handle Frame Align Jig Side View
2. Run the VAKCAP.exe file in C:\VCaptureSW\Acquisition\CBCT\WidePANO folder.
3. Click the Capture/Recon tab and send the [SPM_ARCT] command to initiate the system into
CT mode.
4. When the equipment stops operating, send the following commands in the table below to supply
power to the CBCT Sensor.
Command Function
[SPM_CSON] CBCT sensor Power On
[SPM_FISS_0001]
Sensor Sensitivity & Binning mode setting
//0000: High Gain, 2x2 Binning
//0001: High Gain, 4x4 Binning
//0002: Low Gain, 2x2 Binning (default)
//0003: Low Gain, 4x4 Binning
[SPM_FIPM_0001]
Sensor Partial mode setting
// Sensor size: 0000~0032
[SPM_FISM_0001]
Sensor Internal/External mode setting
//0000: Internal
//0001: External
[SPM_COLM_0004] Collimator Position set
