Vatech A9 (PHT-30CSS)
Technical manual
VDH-TeM-098
41 / 214
COPYRIGHT© 2020 VATECH.
ALL RIGHTS RESERVED

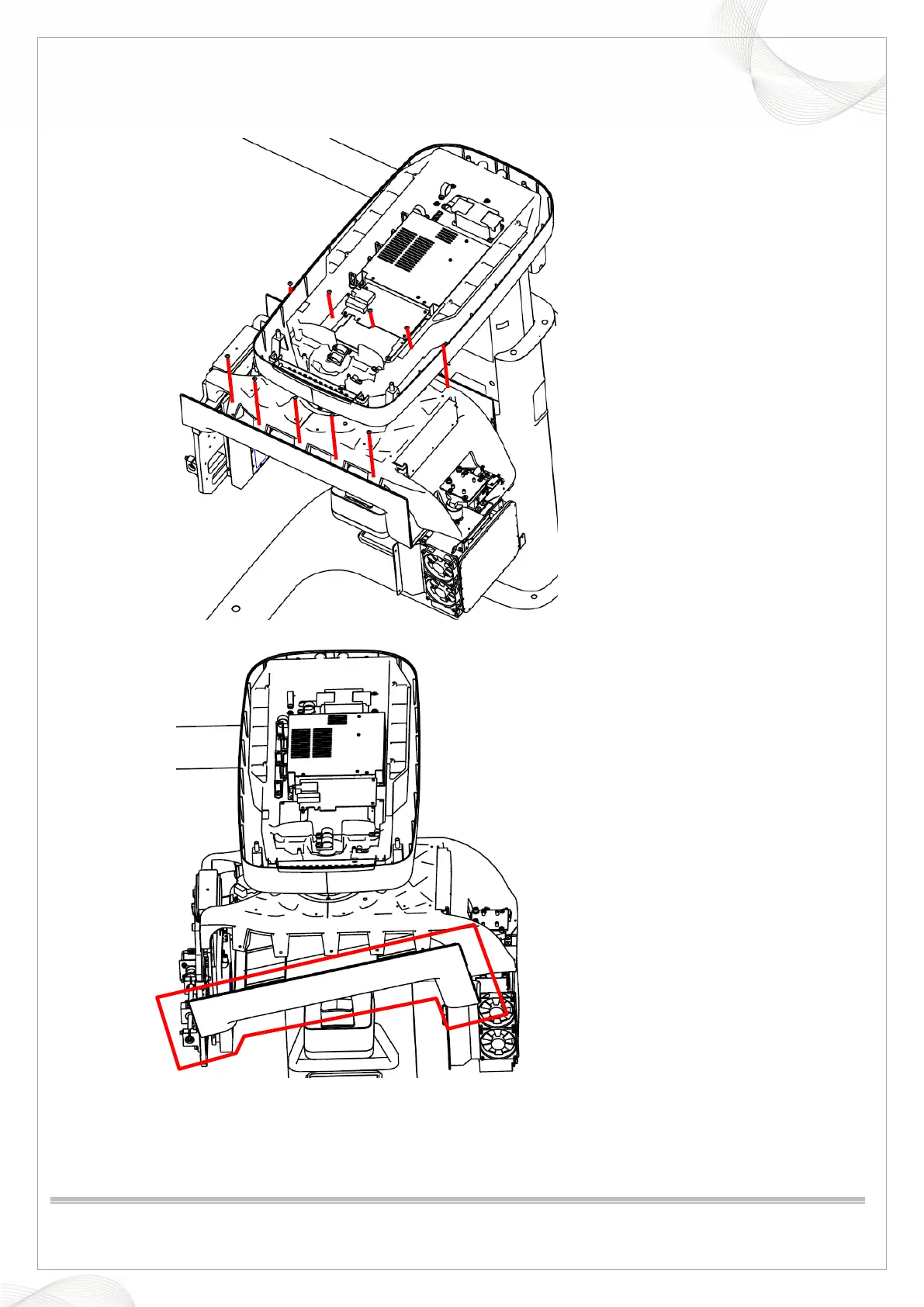

16. Loosen ten bolts as shown in the image below.
17. Remove the cover as shown in the image below.
By doing this, you can access
- Inverter
- Generator
- SUB056
