Vatech A9 (PHT-30CSS)
Technical manual
VDH-TeM-098
46 / 214
COPYRIGHT© 2020 VATECH.
ALL RIGHTS RESERVED
4.3.2. DISASSEMBLY OF THE OTHERS

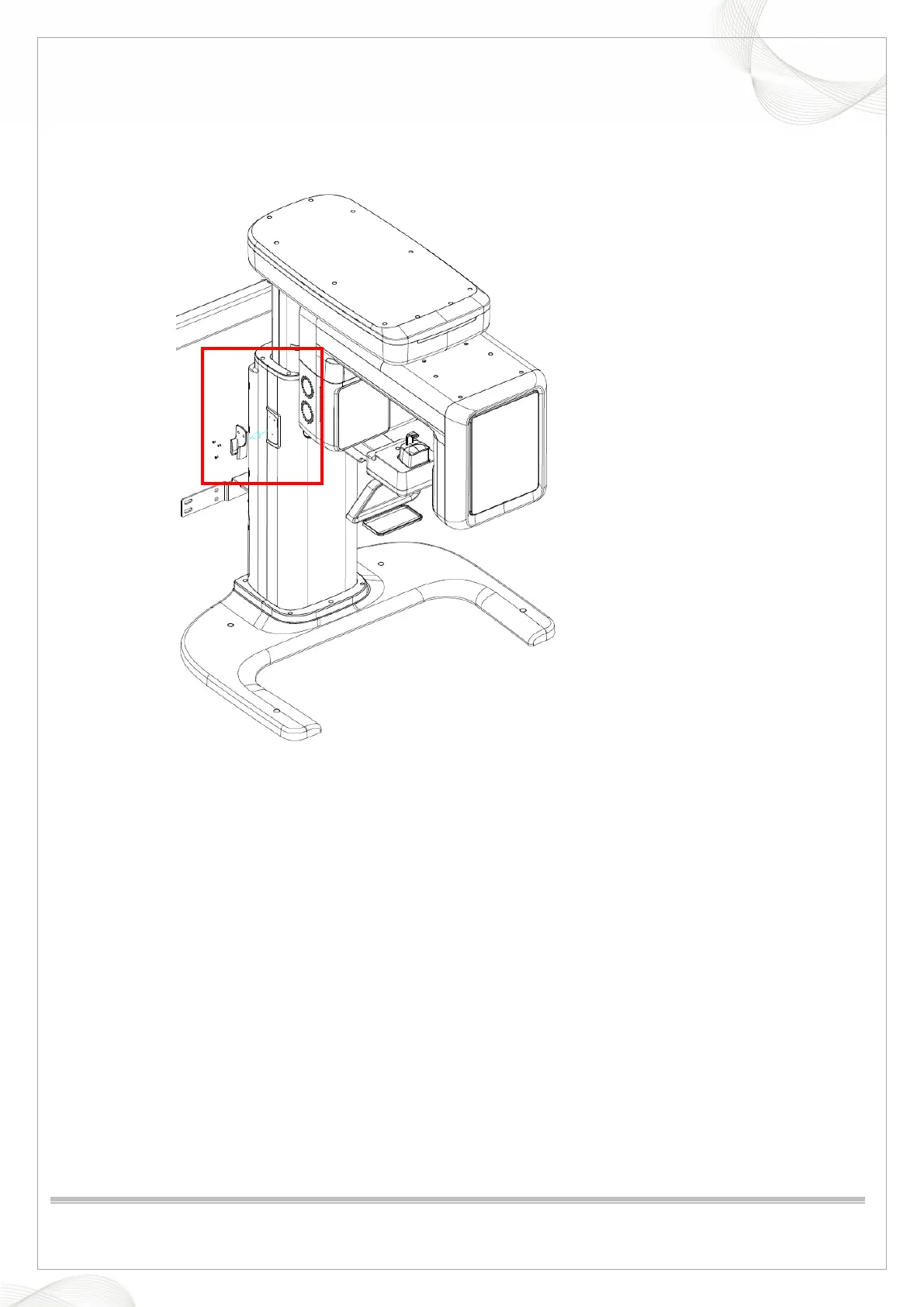

1. Remove the switch holder by loosening three bolts as shown in the image below.
