Vatech A9 (PHT-30CSS)
Technical manual
VDH-TeM-098
50 / 214
COPYRIGHT© 2020 VATECH.
ALL RIGHTS RESERVED

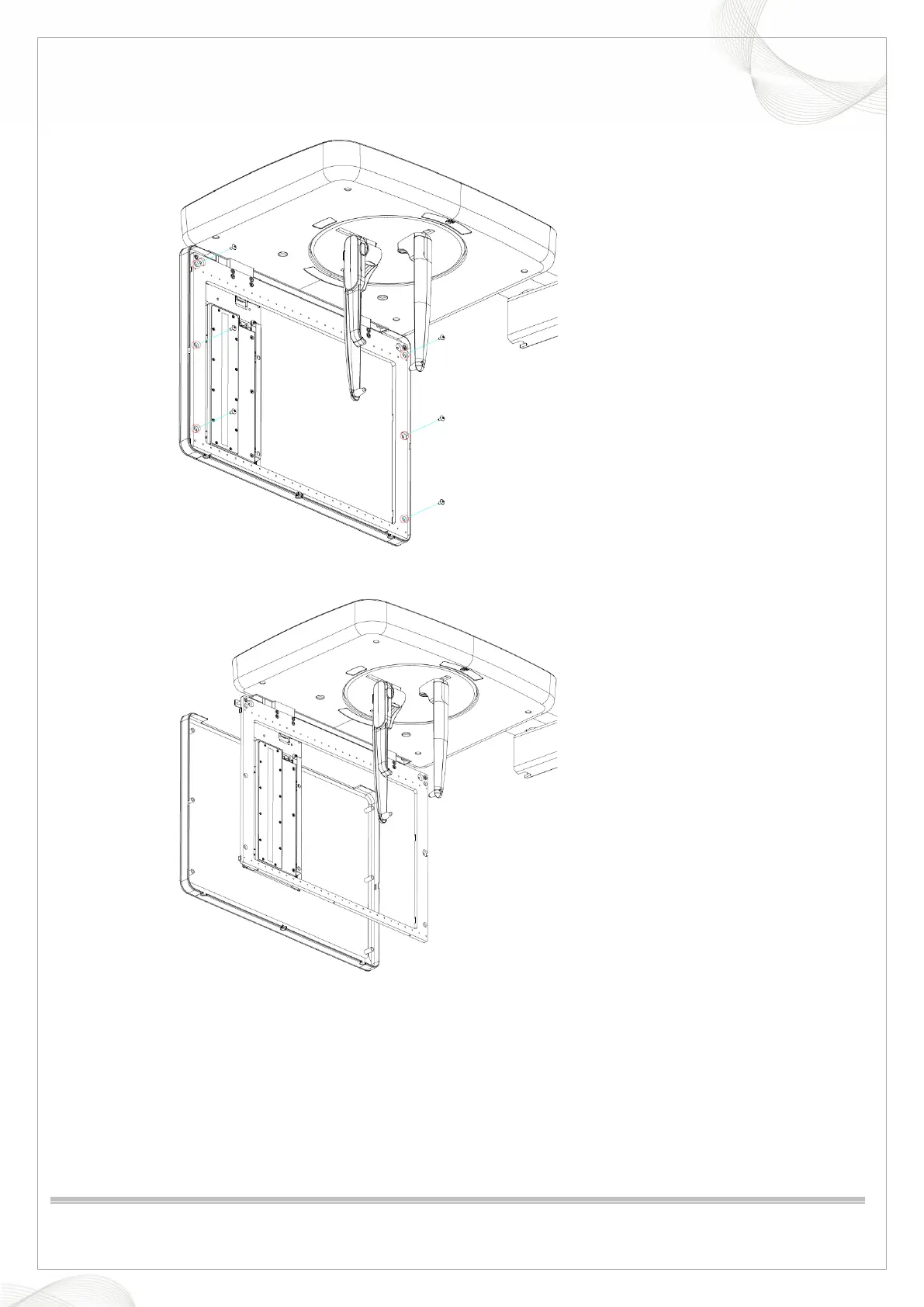

7. Loosen the six bolts as shown in the image below.
8. Remove the cover as shown in the image below.
