Vatech A9 (PHT-30CSS)
Technical manual
VDH-TeM-098
70 / 214
COPYRIGHT© 2020 VATECH.
12. If it does not meet the standard, move the sensor with a command and adjust it.
When the ofs value increases, move the sensor to the ORG
direction (Right): [spm_CMCT_xxxx] value decrease
When the ofs value decreases, move the sensor in the opposite
direction to the ORG (Left): [spm_CMCT_xxxx] value increase
[spm_CMCT_xxxx] value increase
* To modify ofs value by 1, modify CMCT value by 2.
13. When the standard pass, enter the ofs value in the DETOFFSETYY parameter in the
reconstruction.vxm, reconstruction_Bead.vxm, and reconstruction_GEO.vxm files in the
following folder
Half beam
Path: C:\VCaptureSW\VCaptureSW\Acquisition\CBCT\WidePANO\REC
File: (1) reconstruction.vxm, (2) reconstruction_Bead.vxm, (3) reconstruction_GEO.vxm
Parameter: DETOFFSETYY = -xxx setting in (1) & (2) & (3) files
When the CMCT value is determined, enter the PMCT value as (CMCT value + 149).
ex. [SPM_CMCT_431] → [SPM_PMCT_580]

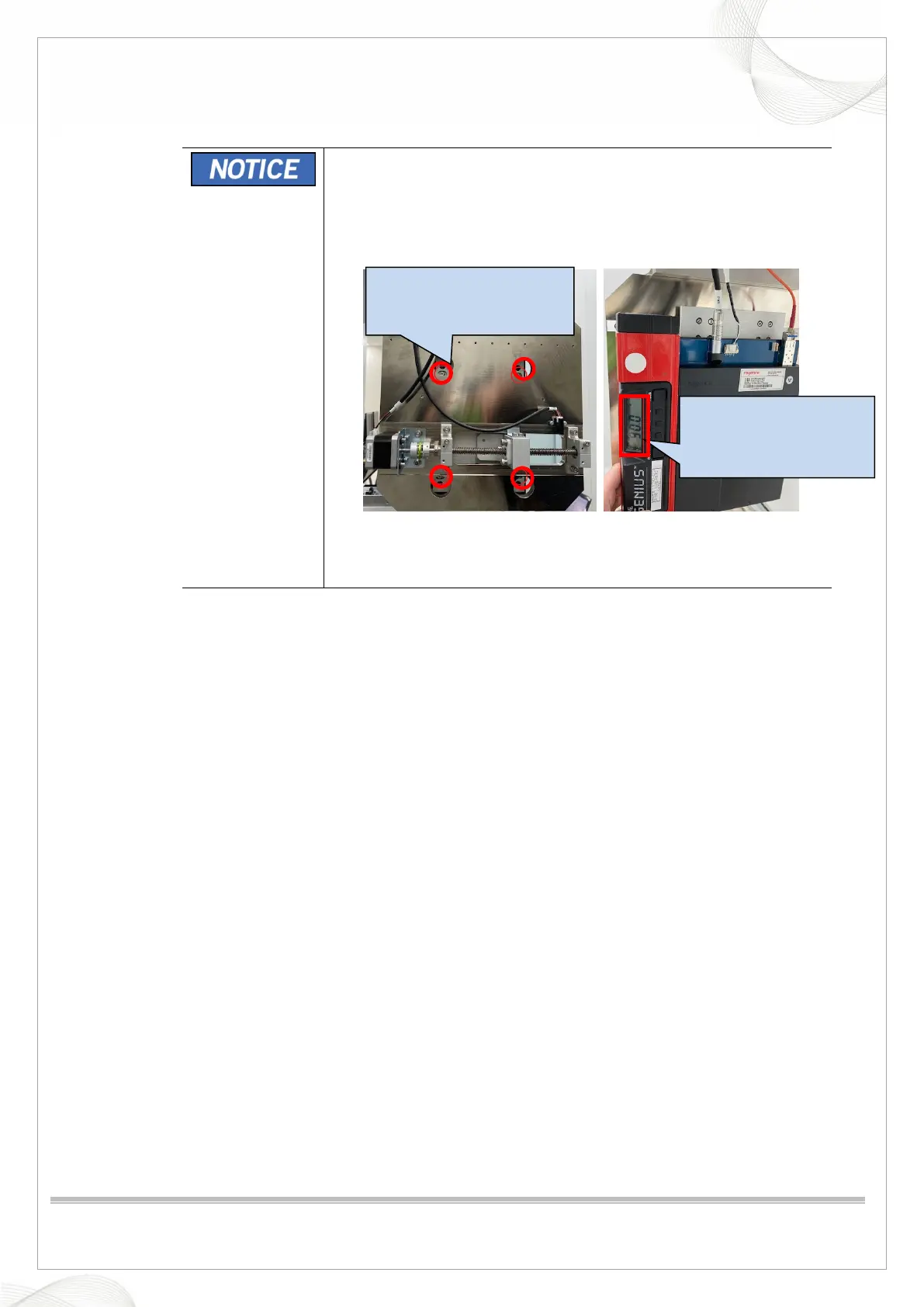

sensor, be
check the sensor level.
move the sensor
