VDO MAP 7w Plus GPS - Dimensions

116
User Manual
3. Remove the template and let the cable go through the central hole
4. Apply a small coat of RTV to the underside of the antenna
5. Place the antenna and then screw it with the three M3 screws

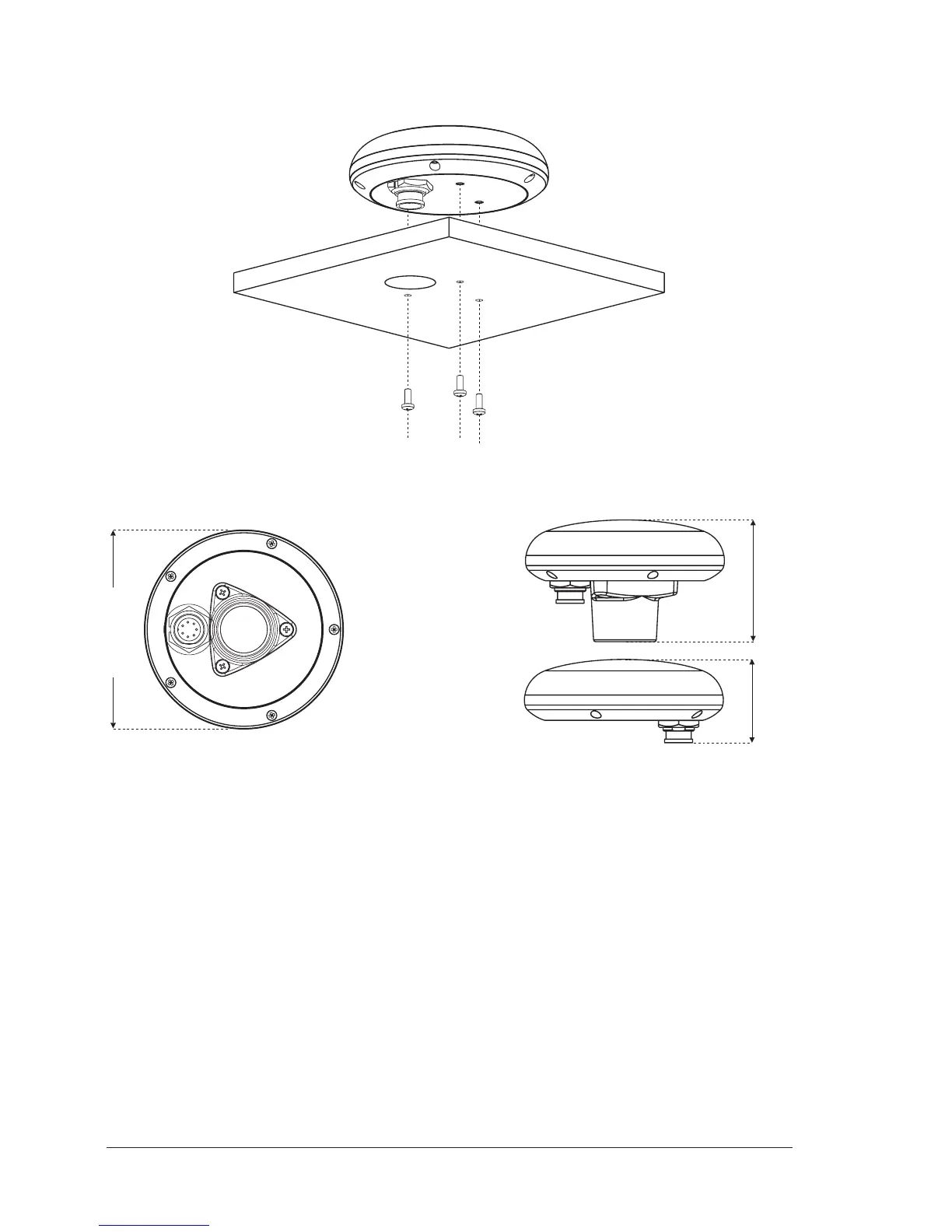

Installing GPS Antenna (III)
Dimensions
60mm [2.63"]
41mm [1.61"]
98mm [3.86"]
GPS Antenna Dimensions
