User Manual
TECHNICAL SPECIFICATIONS
♦ Operating Voltage : 10 - 35 Volt dc
♦ Power consumption : 12W average; 27W max peak
♦ Interface : NMEA-0183
♦ Autopilot Interface : NMEA-0180, NMEA-0180/CDX, NMEA-0183
♦ Display : Color Sunlight Viewable LCD (active area 7")
♦ Display Resolution : 800 x 480 pixels
♦ Cartography : C-MAP BY JEPPESEN C-CARD
♦ Operating temperature range: 0/+55°C (32/+131°F)
♦ Memory : Non volatile
♦ Keyboard : Silicon rubber, backlight
♦ Weight : 1,3 kg
FF MODULE 600W-50-200KHZ
TECHNICAL SPECIFICATIONS
♦ Power Output : 600W (4800Wpp), 50/200KHz Dual Fre-
quency
♦ Max Depth : 213m (700Ft) at 200kHz, 457m(1500Ft)
at 50kHz
♦ Automatic Recognition of the AIRMAR "X-DUCER ID" transducers for best
performance
♦ Advanced Digital Signal Processing
♦ Speed & Temperature Sensor (if available on transducer)
♦ Alarms (shallow water, depth, Fish, temp)
♦ Trip Log, Fish Symbols
♦ STC, Interference Rejection, Automatic noise reduction
♦ A-scope, White Line, Zoom x2/x4
♦ Auto range/gain/frequency/shift/ping rate
When the package containing the chart plotter is first opened, please check it for
the following contents (if any parts are missing contact the dealer the chart plot-
ter was purchased from):
♦ "Quick disconnect" bracket and its protective cover
♦ Chart plotter's protective cover
♦ Fuse 3.15 Amp. + fuseholder
♦ User Manual
INSERTING/REMOVING PROCEDURE

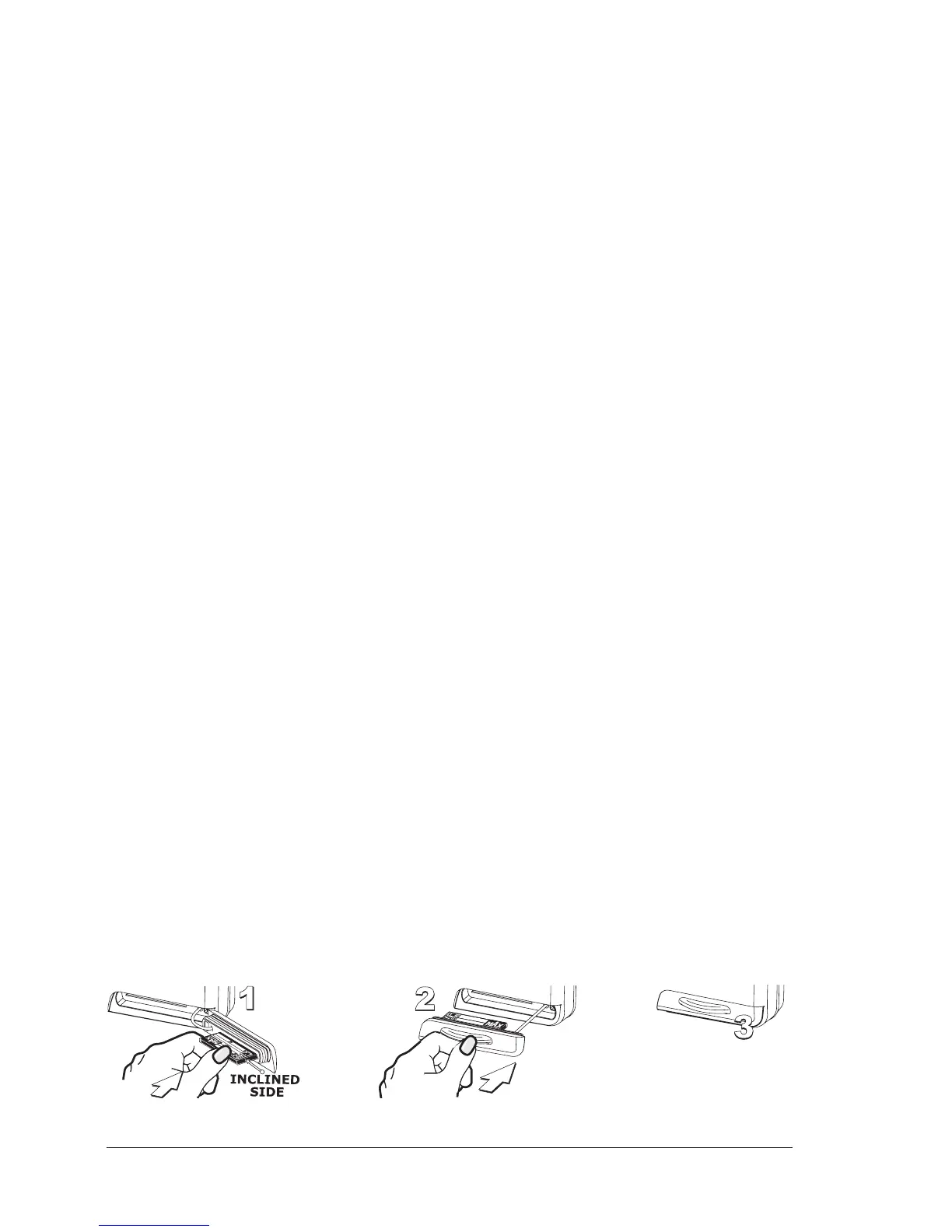

Inserting the C-CARD
Open the door, hold the C-CARD by the long side so that you can see the label and
gently push the C-CARD into the door slot (1). Close the door pushing the C-CARD
in as far as it will go to hold fixed into the chart plotter slot (2). When finished the
door must be right closed (3).
