Distance measurements
Combined measurement with data transfer (slope distance, azimuth, inclination)
Measurement data is transmitted
via the (optional) interface cable
immediately after the measure-
ment is taken (see page 27).
It is not possible to store meas-
urement data in the VECTOR
itself.

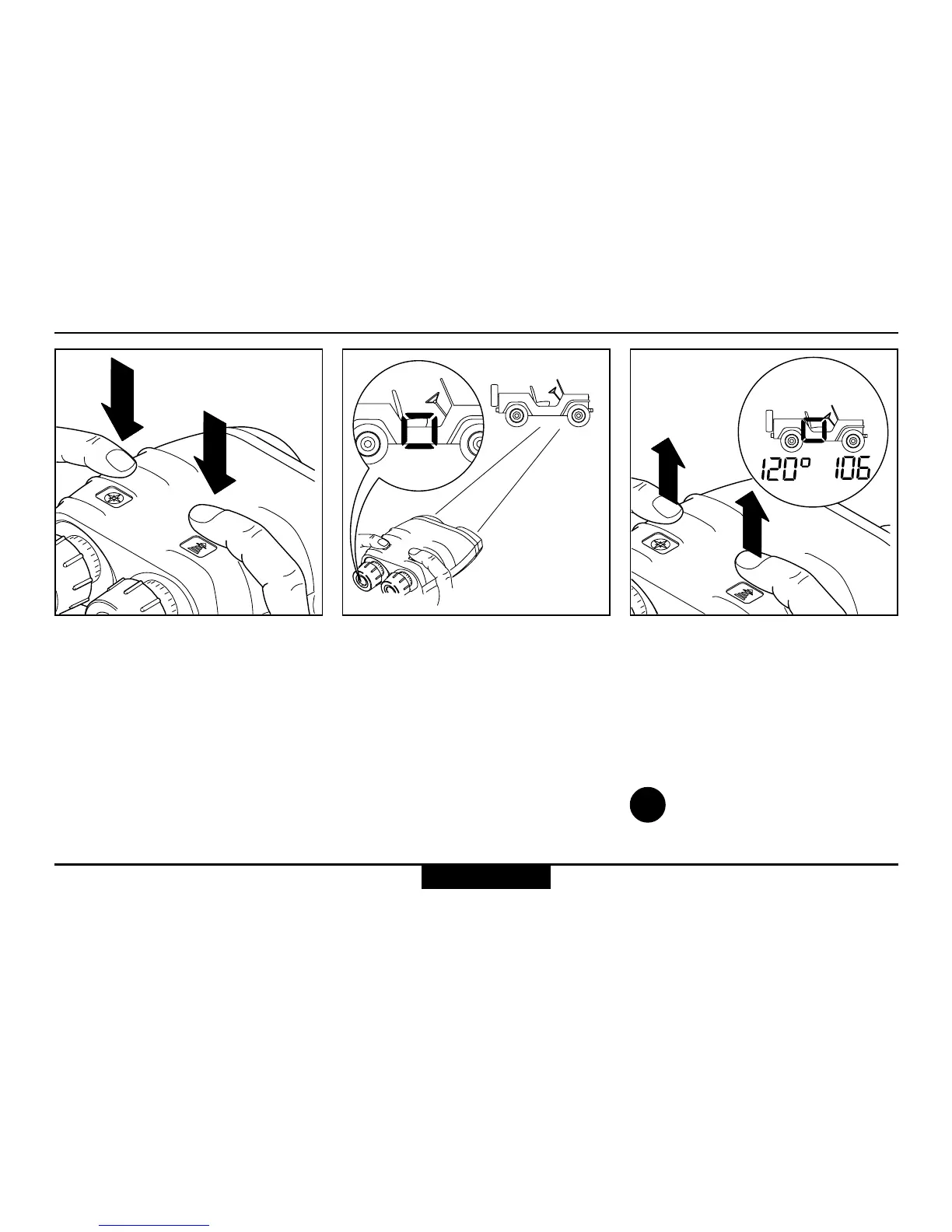

Hold down both keys simultane-
ously (or the remote fire button);
the pointing circle appears,
together with the current azimuth.
Sight the object with the pointing
circle.
Release both keys (or the
remote fire button) while holding
the VECTOR steady.
The azimuth appears at the left
and the slope distance at the
right of the field of view.
The inclination angle is not
displayed, but it is sent via the
data interface.
Setting measurement units:
see page 32.
