37
VECTOR ™- USMC VECTOR 21-V.0.3
Settings
Operator guidance

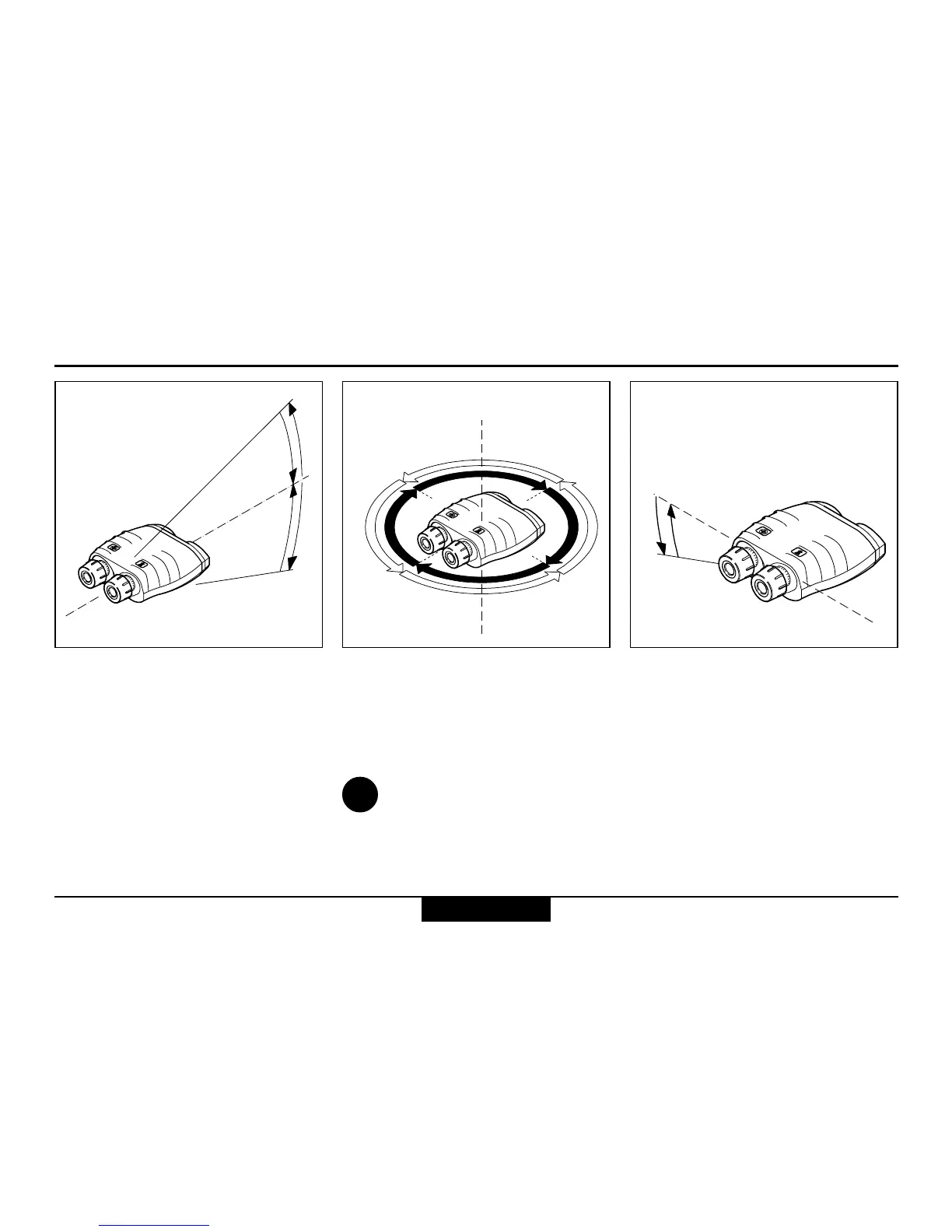

The VECTOR needs to be
swivelled in various directions
during calibration. Instructions
for the required direction of
movement appear successively
in the display:
turn UP.................... tilt upwards
rtrn hori ....... return to horizontal
turn dn................. tilt downwards
rot 90°(60°) ... rotate by 90°(60°)
tilt left ....... tilt the left side of the
VECTOR downwards
undo tilt ....... return to horizontal
too far .............. reverse direction
Instructions in brackets apply
to 12 point calibration only.
Always turn in the same
direction for all ”rot 90°”
instructions.
Important:
Perform each movement slowly
and steadily, until the next
instruction appears.
When you see the ”StOP”
instruction, immediately hold
the VECTOR still and on no
account move it while ”StOP” is
displayed.
turn dn
turn UP
(rtrn hori)
rot 90°
(tilt left)
(undo tilt)
+30°
-30°
-30°
i
