VECTOR ™- USMC VECTOR 21-V.0.3
Settings

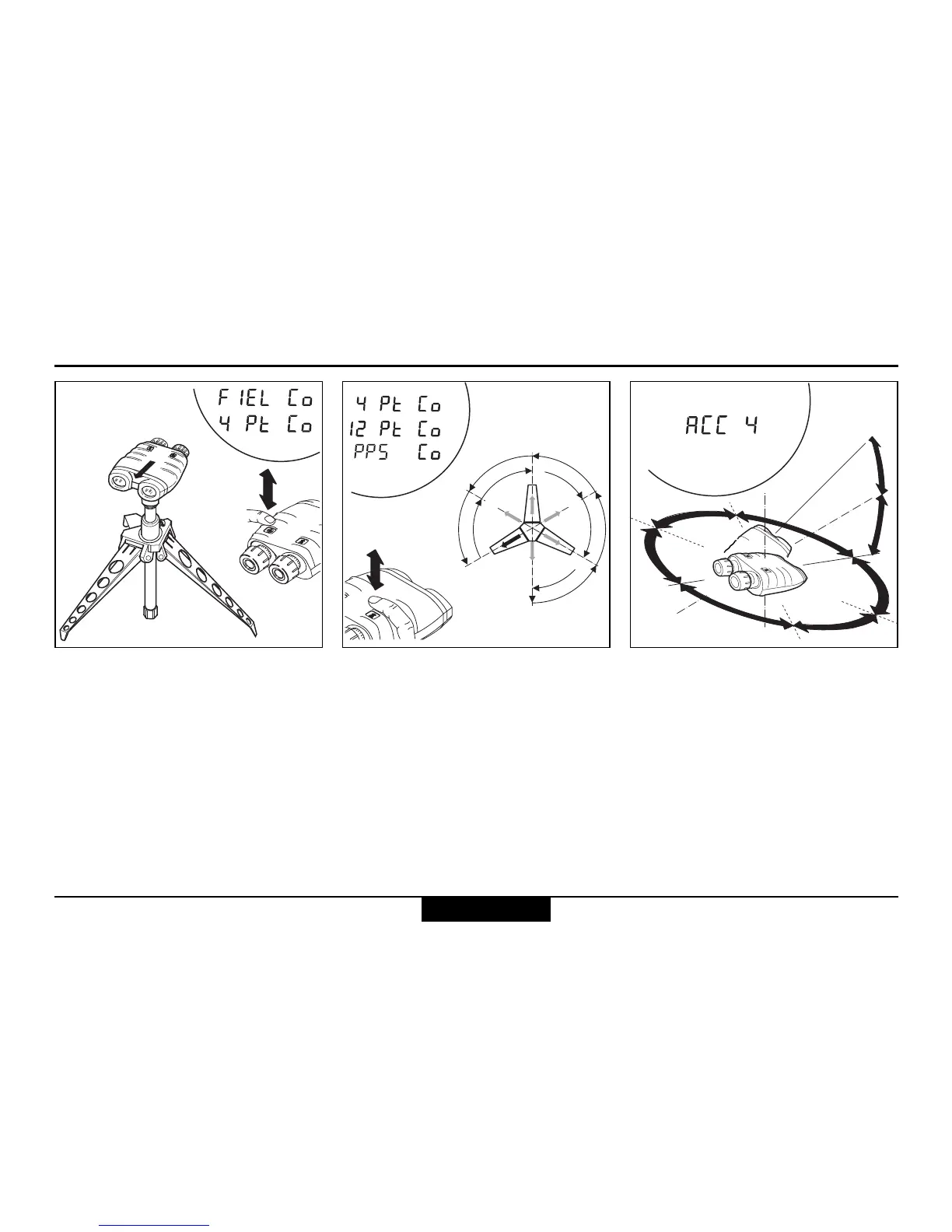

Calibration procedure (on tripod)
After the last instruction and the
analysis the accuracy value is
displayed.
Place the VECTOR on mini-
tripod SST3-2 and level 30°
downwards (see marking on
tripod).
Click the azimuth key four times
in rapid succession. ”FIEL Co”
appears briefly, followed by
”4 Pt Co”.
Now press the distance key until
”PPS Co” is displayed. The
calibration procedure starts
automatically in a few moments.
Proceed as described before.
As a help for ”rot 60°”: rotate
from the first tripod foot to the
middle position between this
and the next foot, then to the
next foot and so on.
4x
30°
30°
0°
1.
2.
3.
4.
5.
8.
9.
10.
11.
12.
6.
7.
